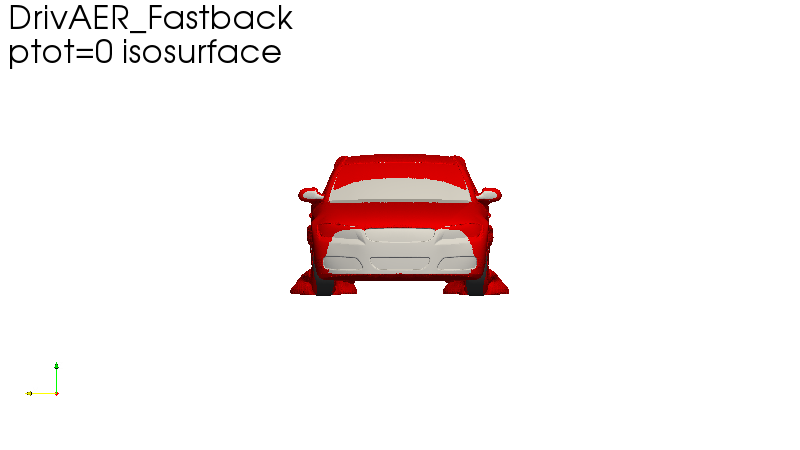

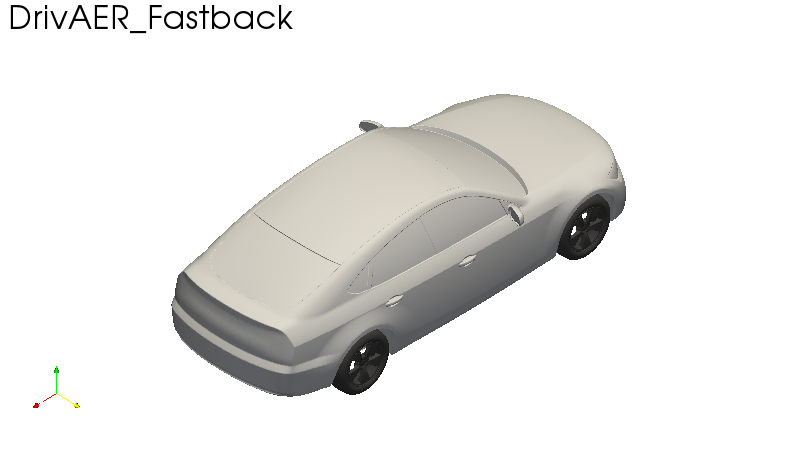

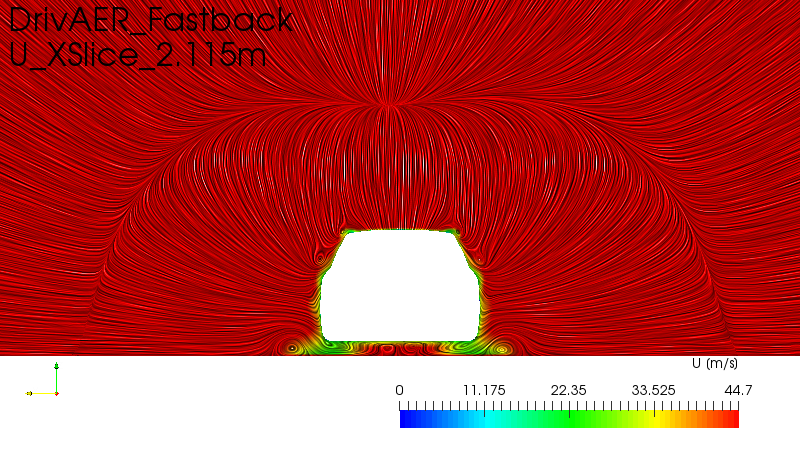

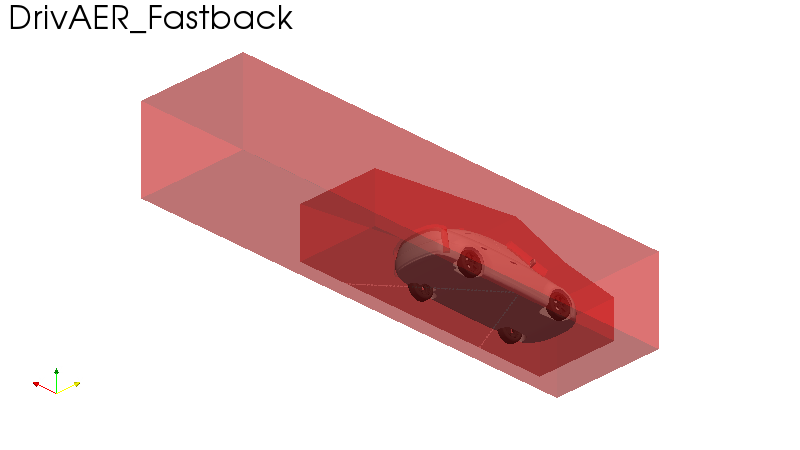

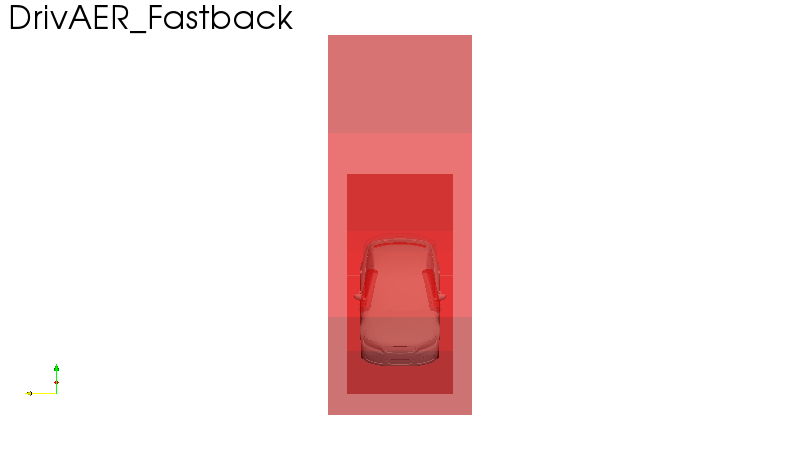

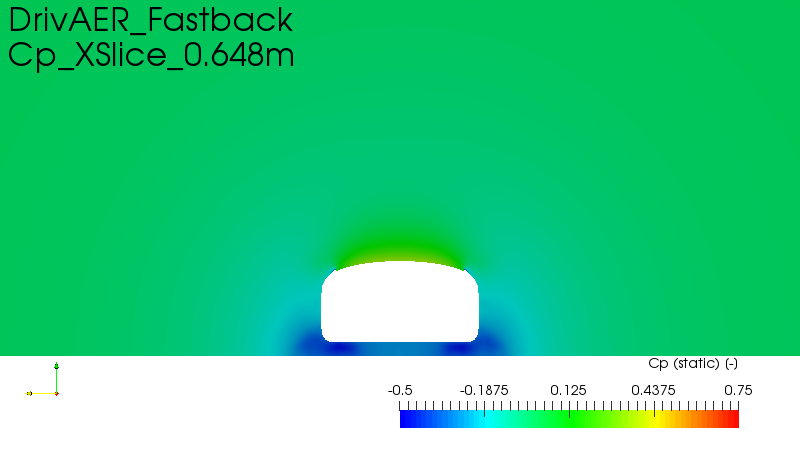

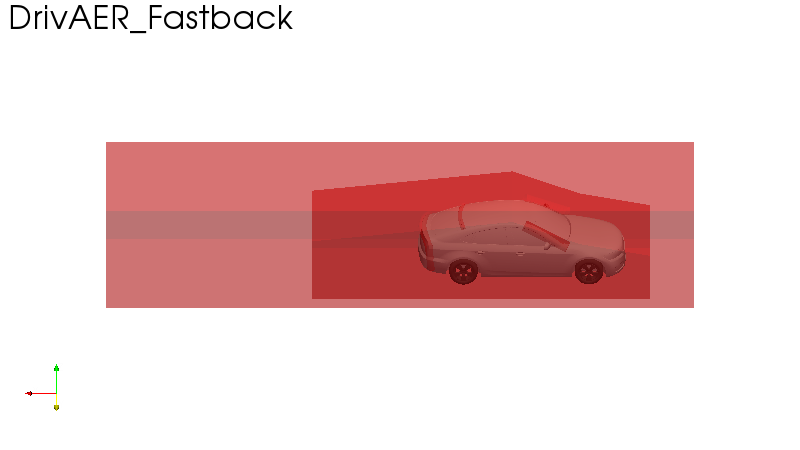

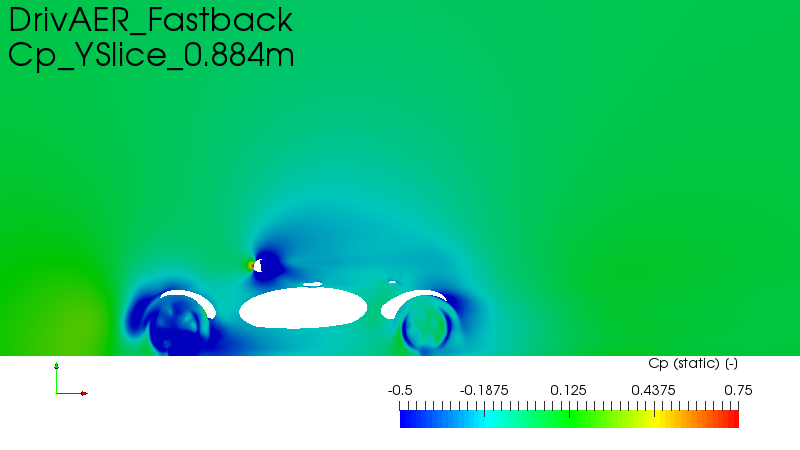

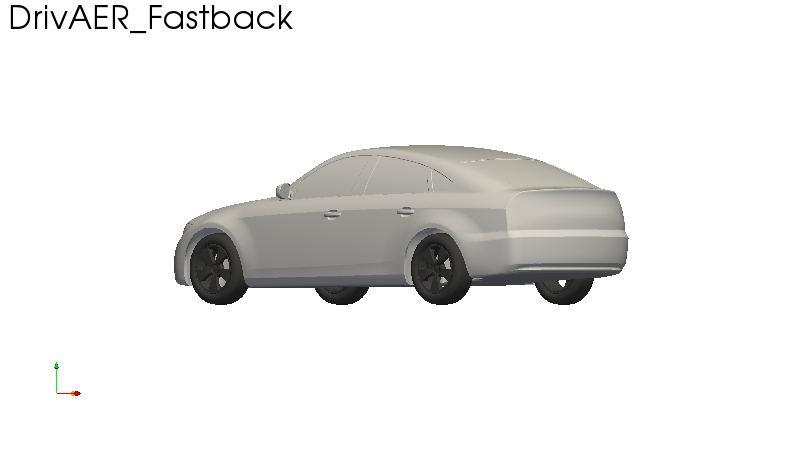

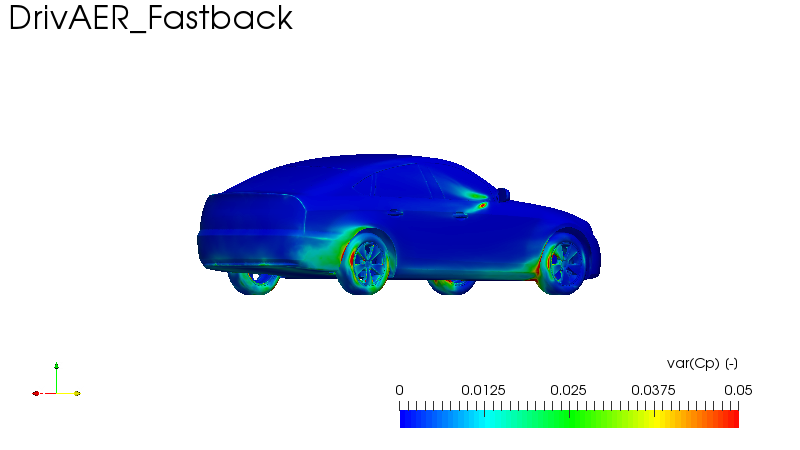

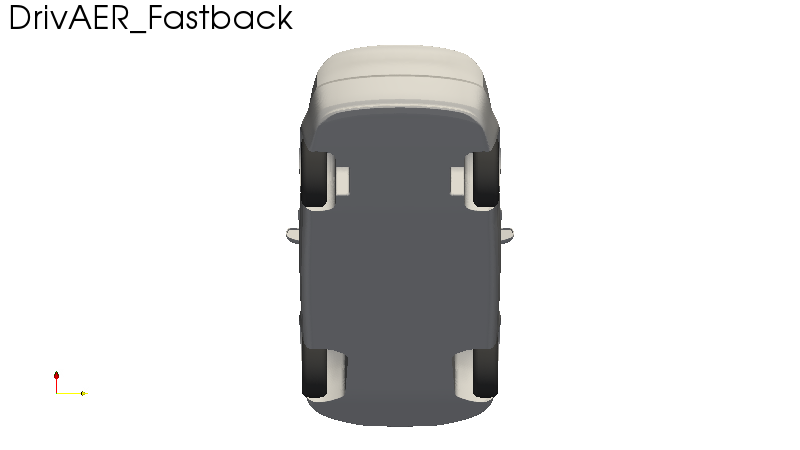

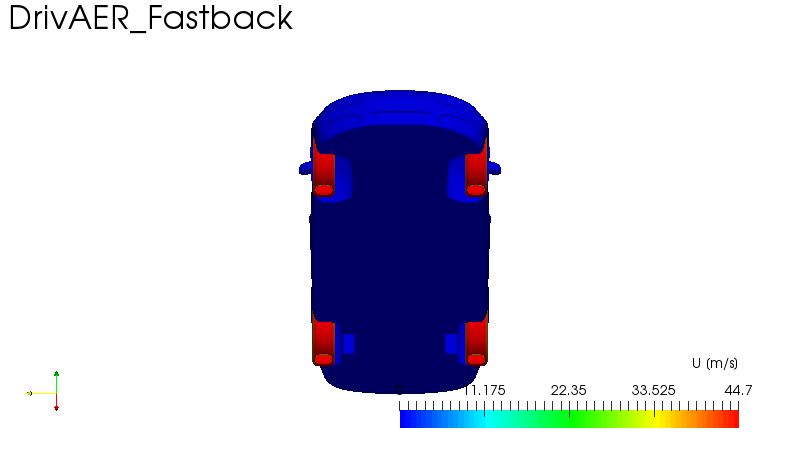

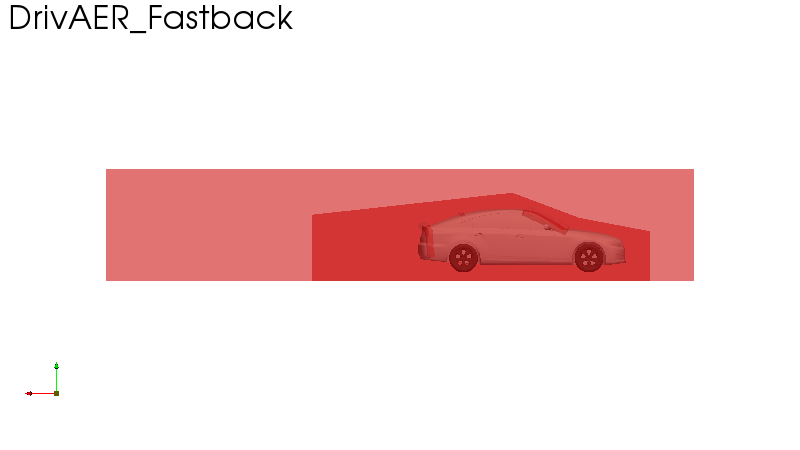

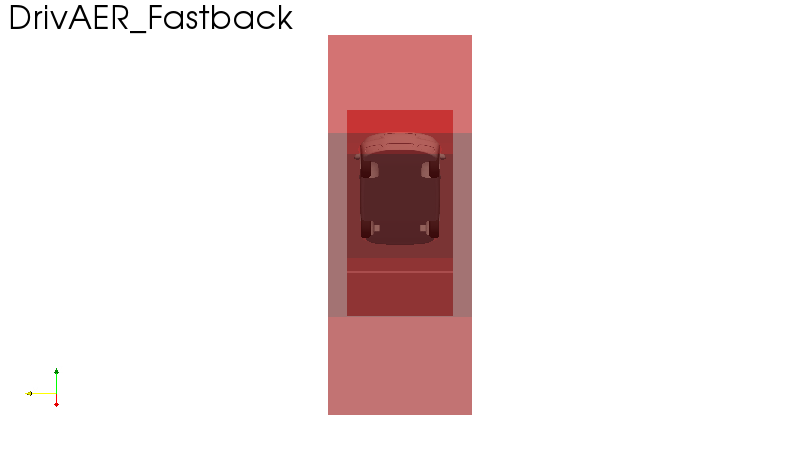

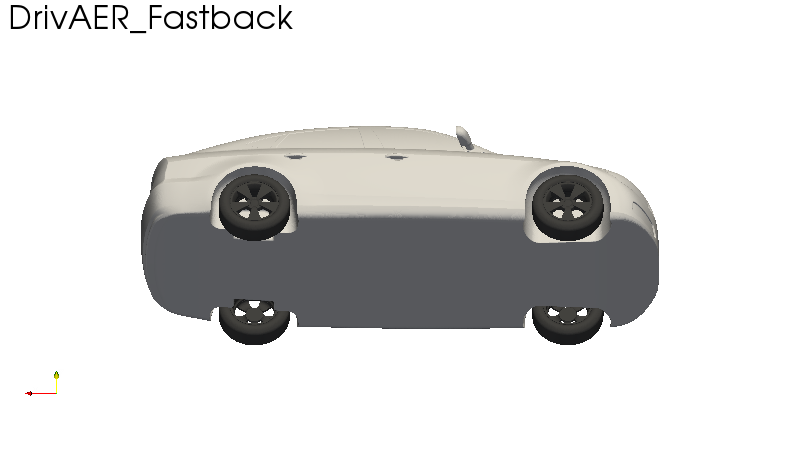

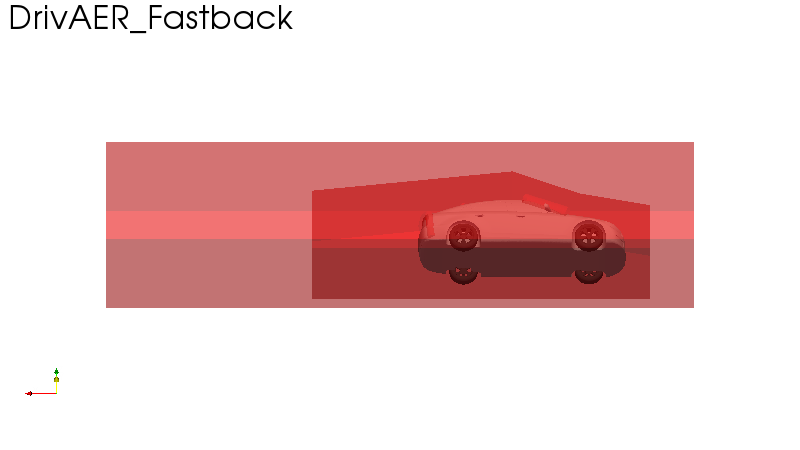

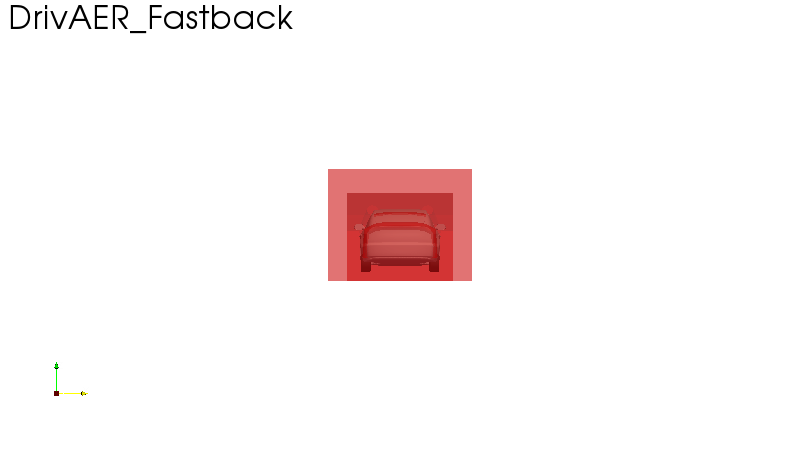

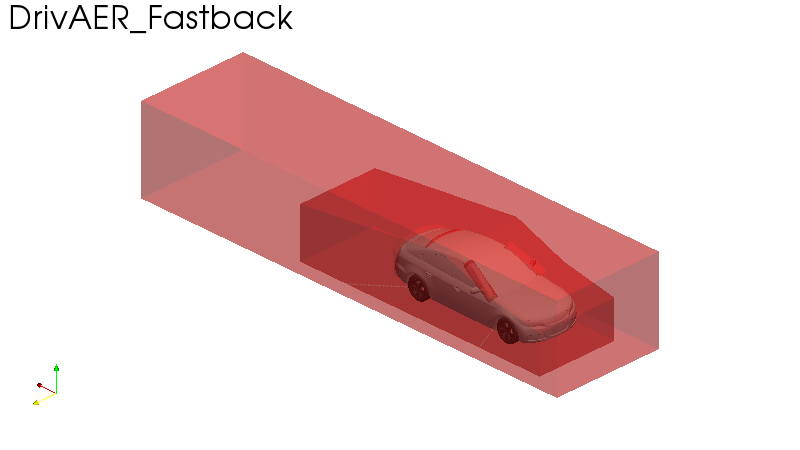

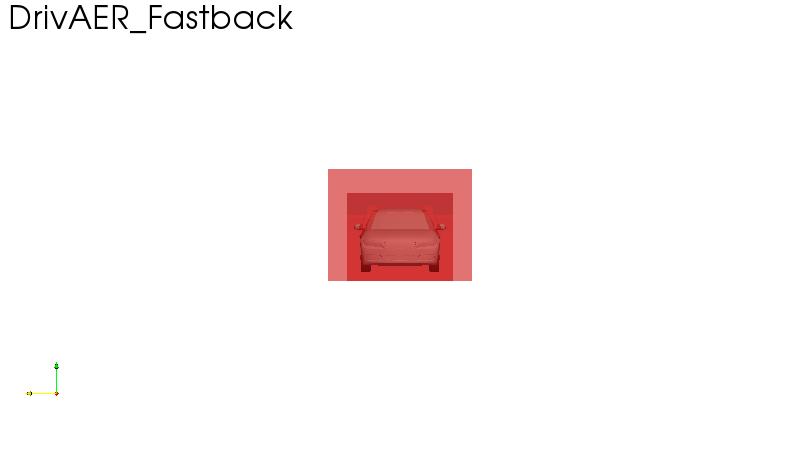

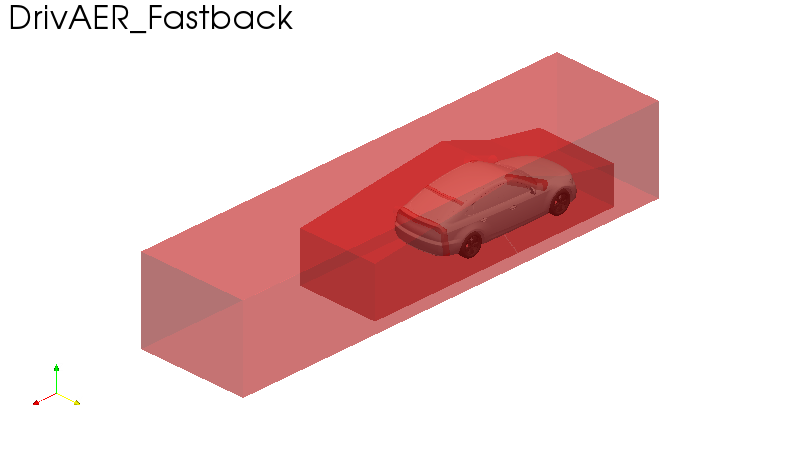

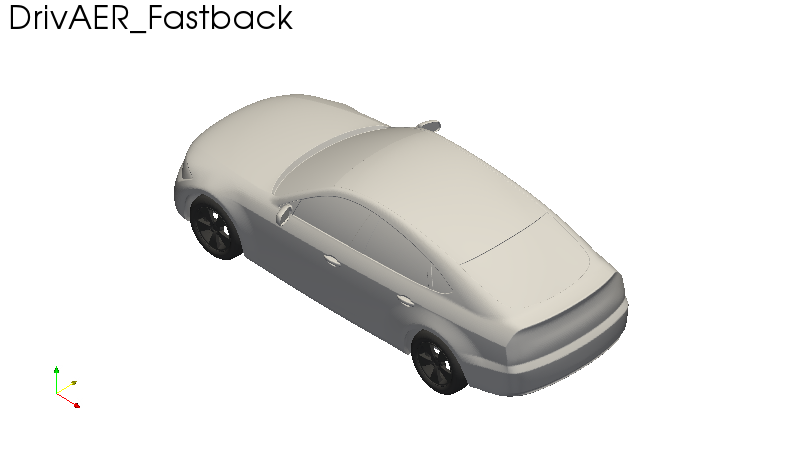

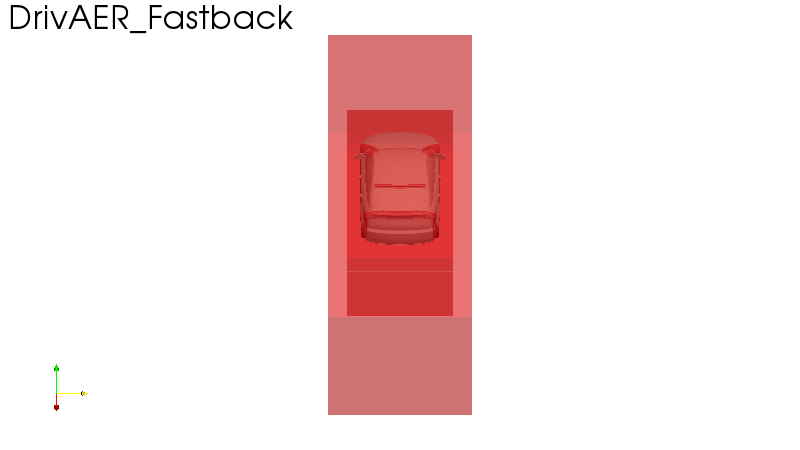

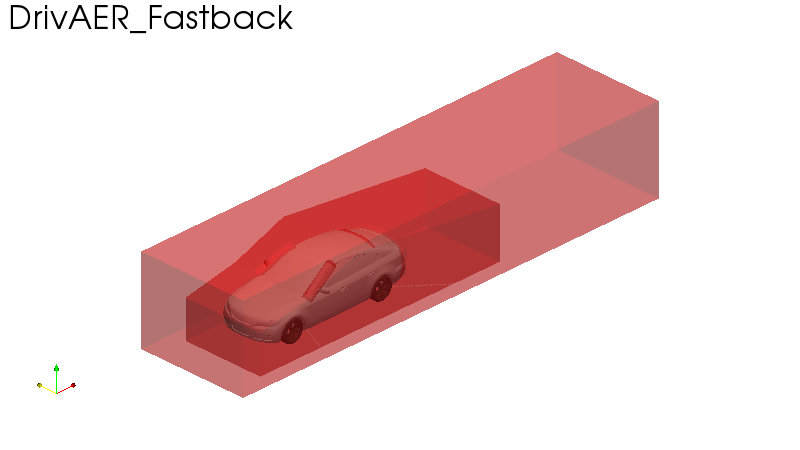

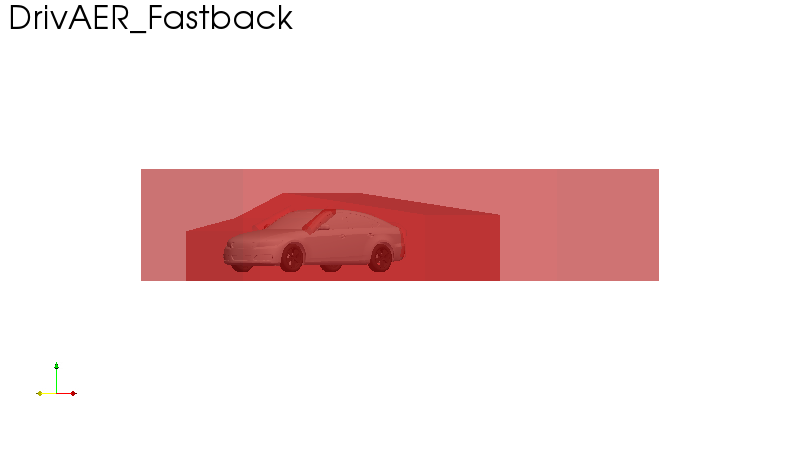

Geometry Overview

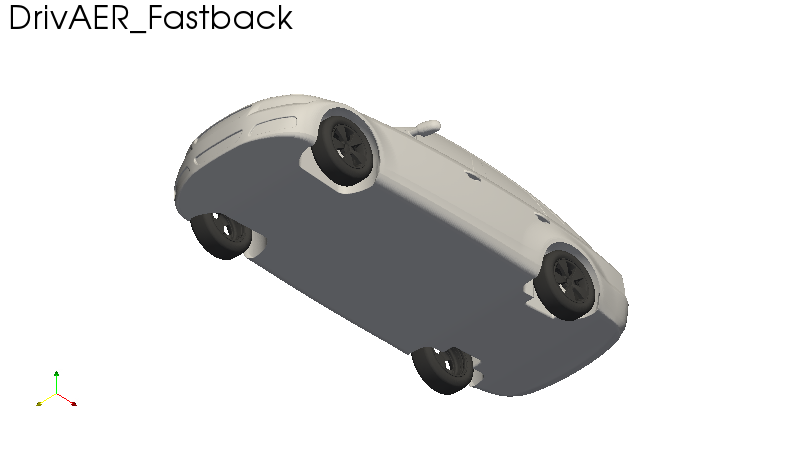

This is an example of MantiumWFlow, a tool designed to streamline any CFD process.
MantiumWFlow sets up CFD simulations completely automated.
The philosophy is: CAD In -> Report Out.

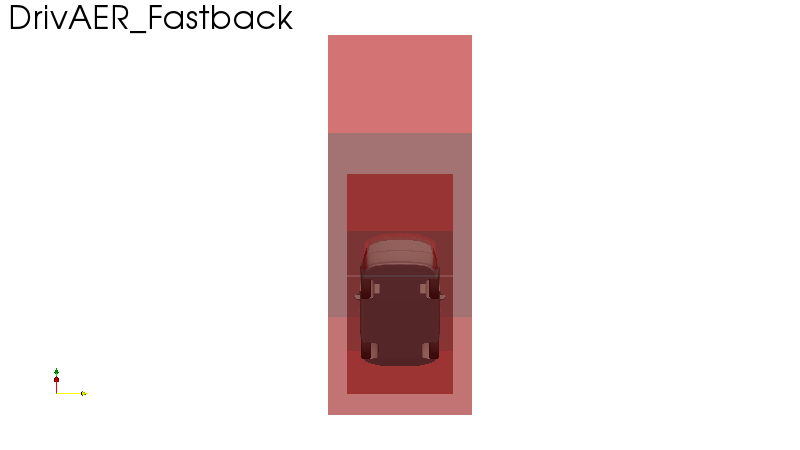

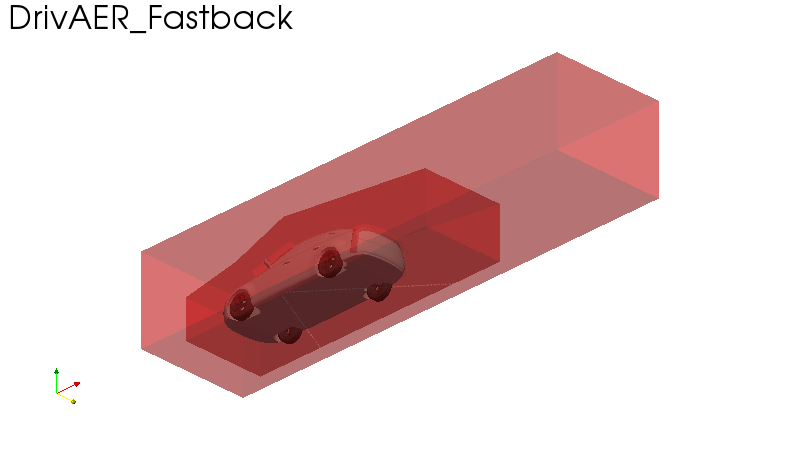

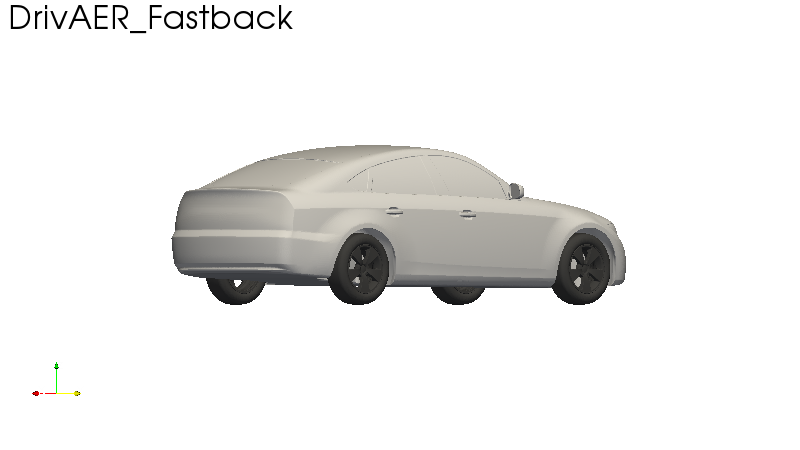

The user more or less only has to add CAD data into specific folders with names like "frt_wheels", "rr_wheels", "vehicle_body", "high_resolution_geo" etc.
The CFD simulation is subsequently set up, run and post-processed by MantiumWFlow.

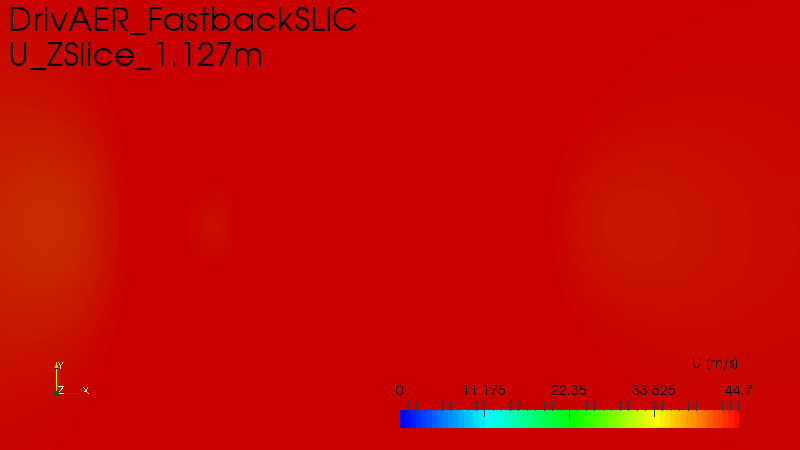

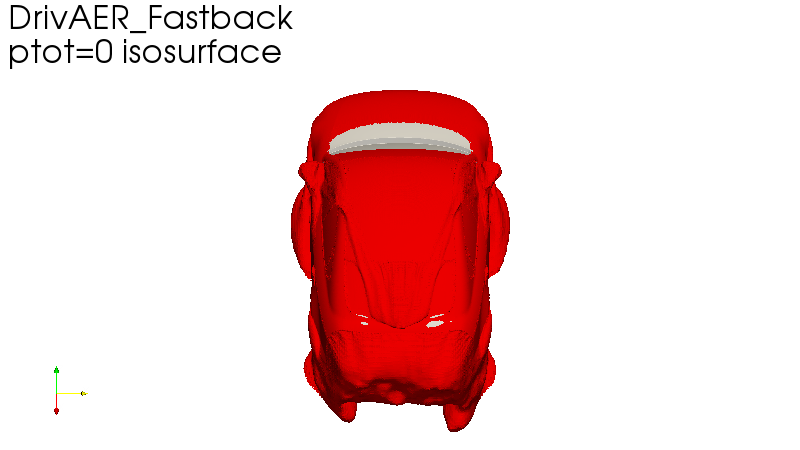

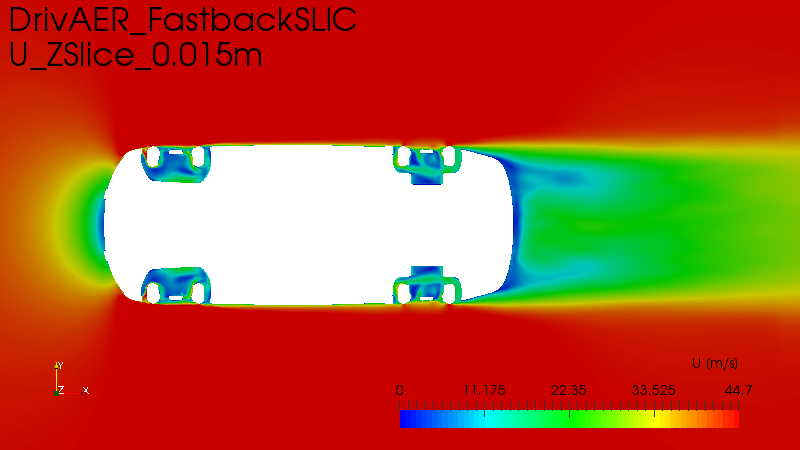

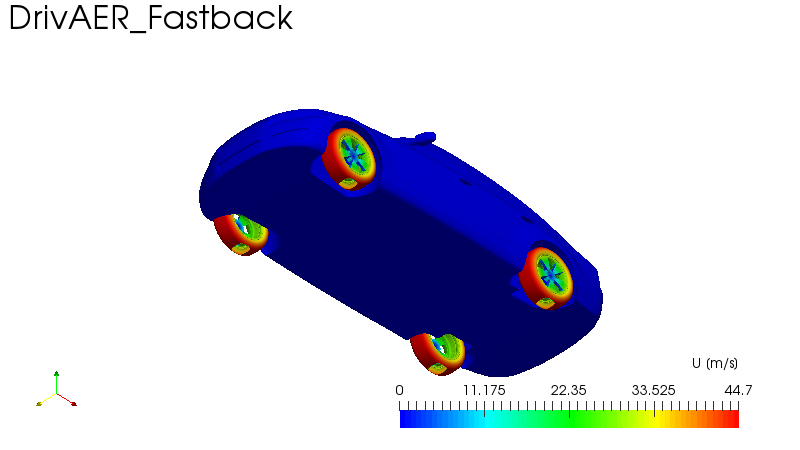

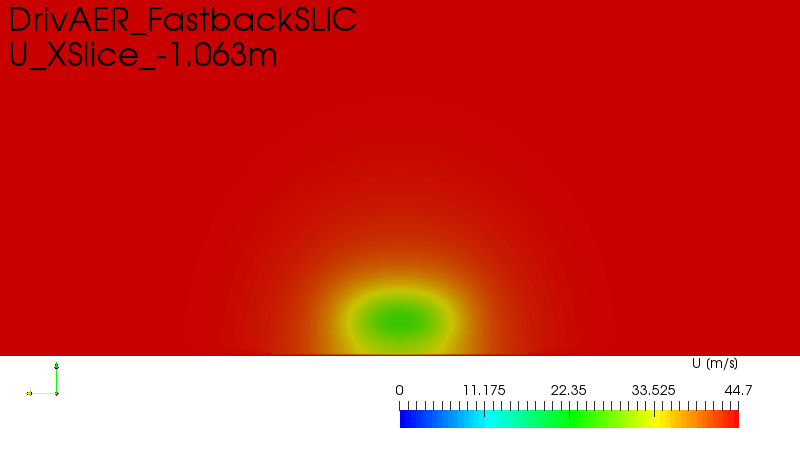

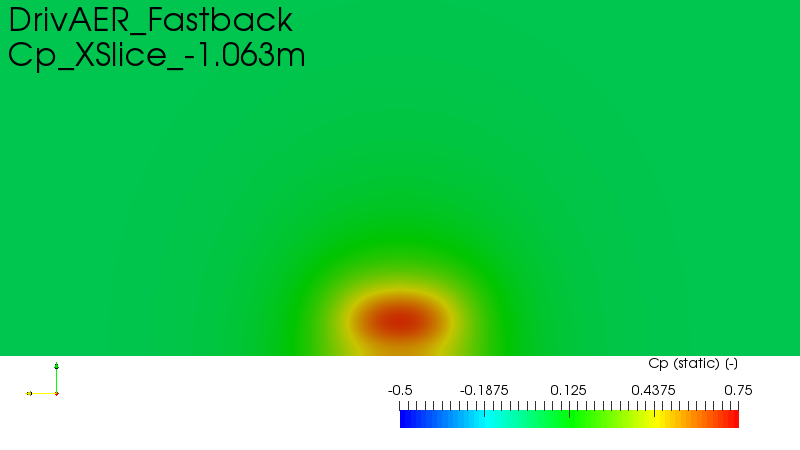

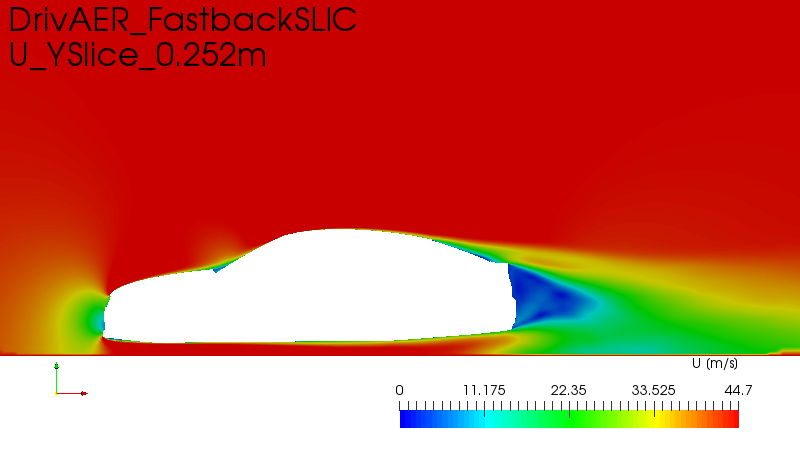

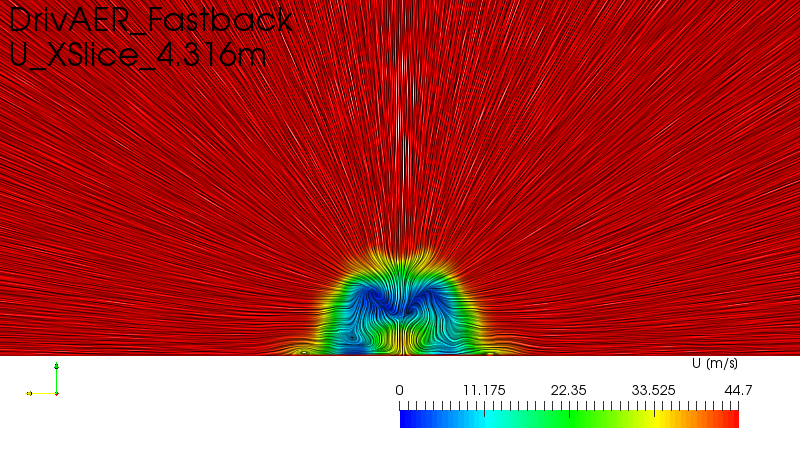

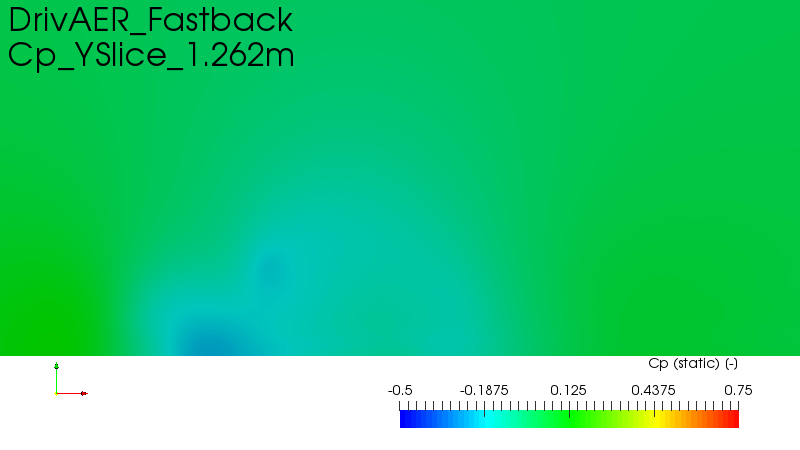

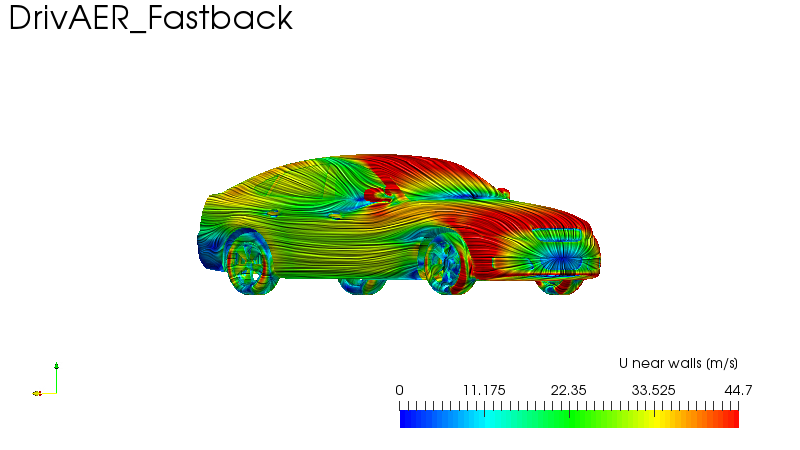

The user receives an html report similar to this one.

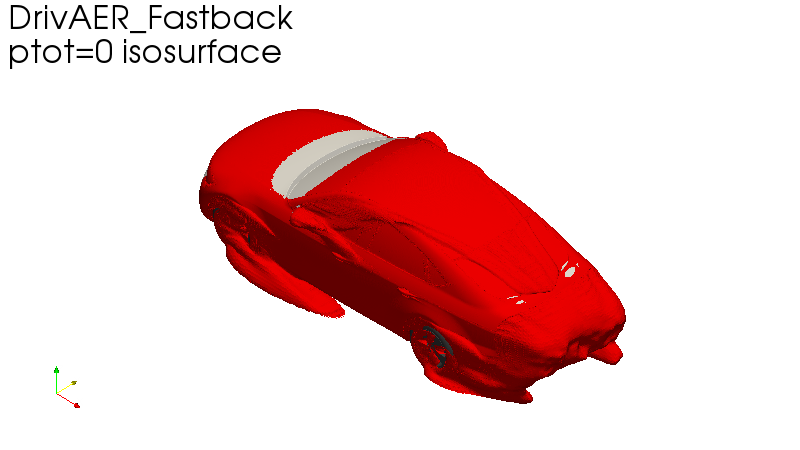

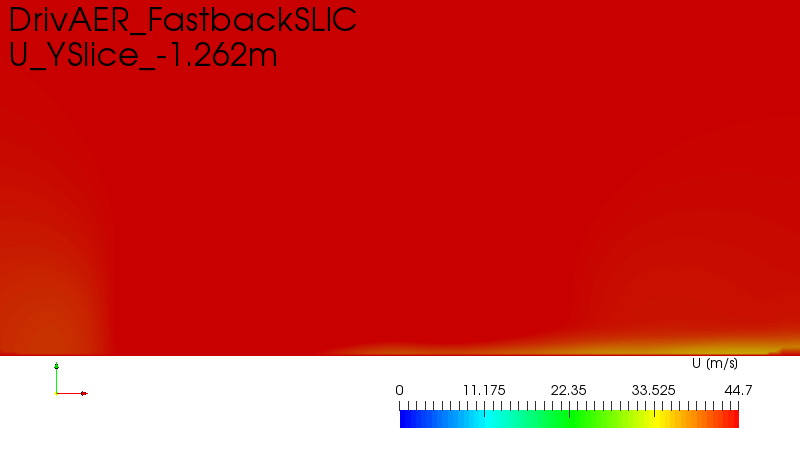

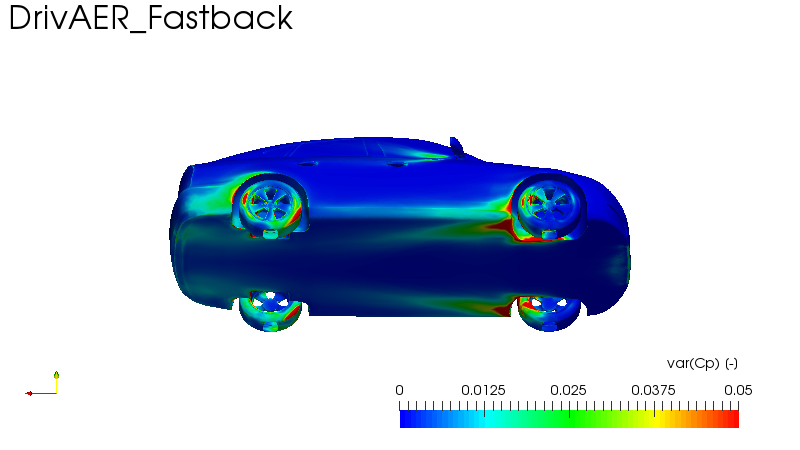

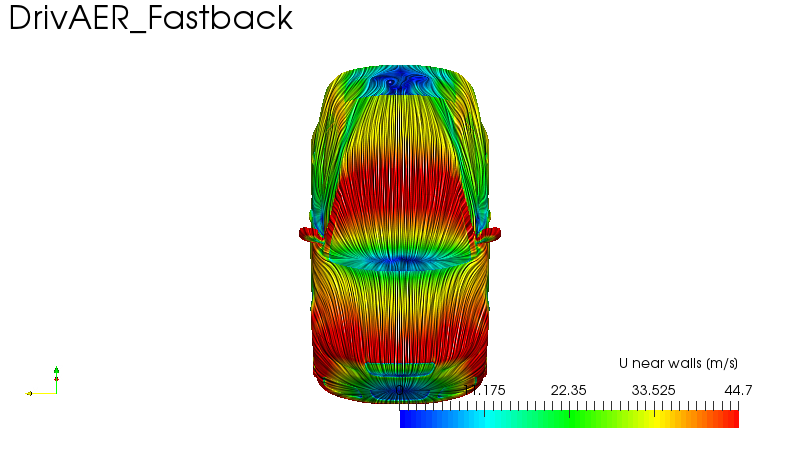

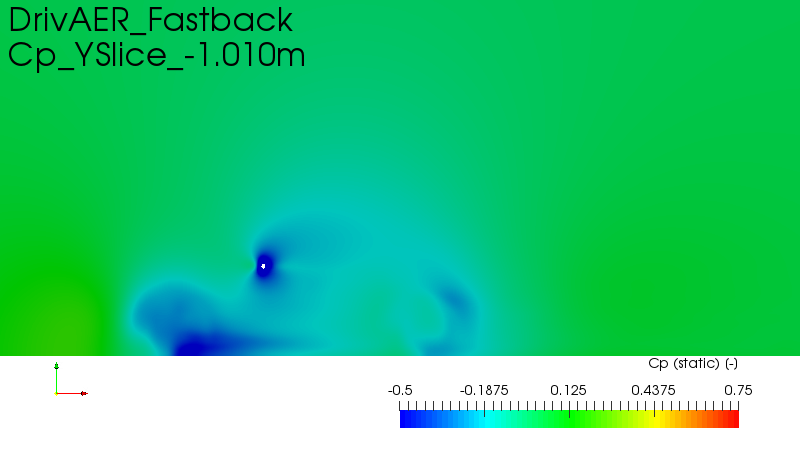

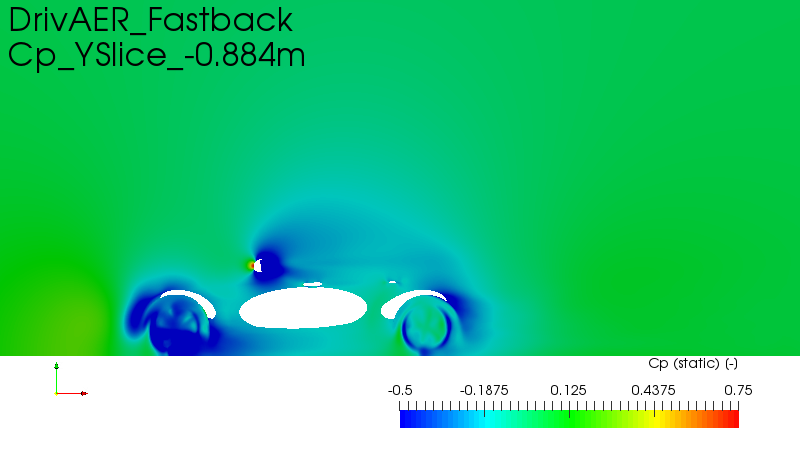

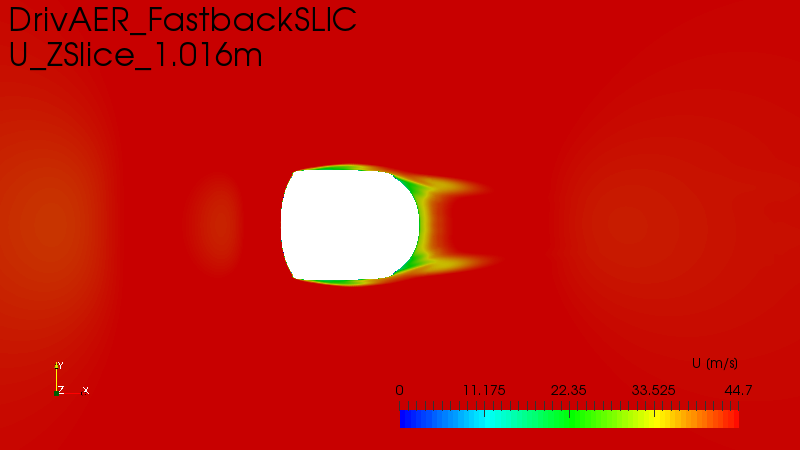

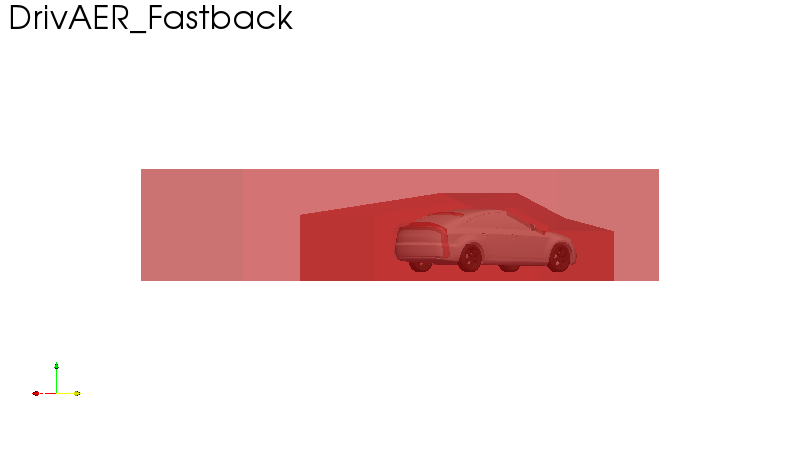

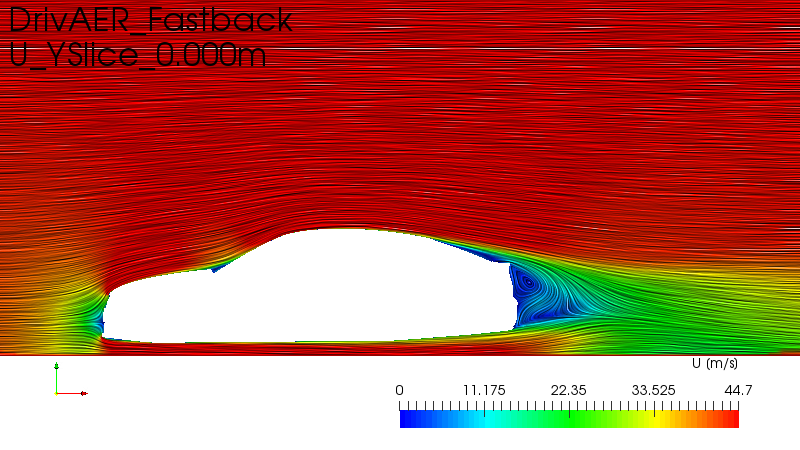

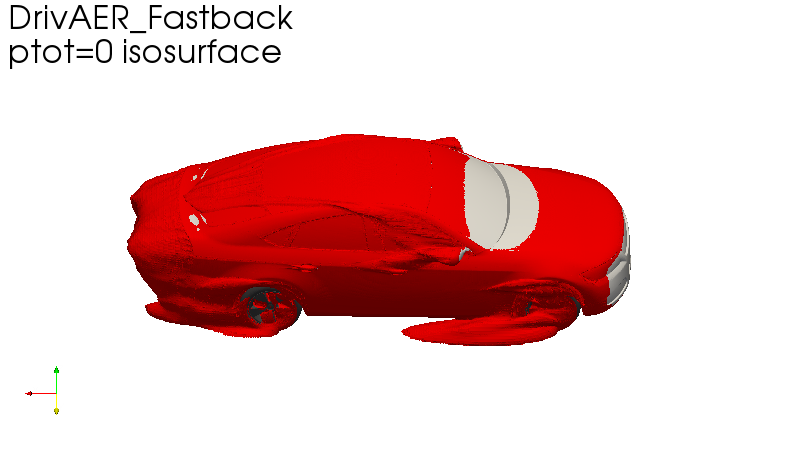

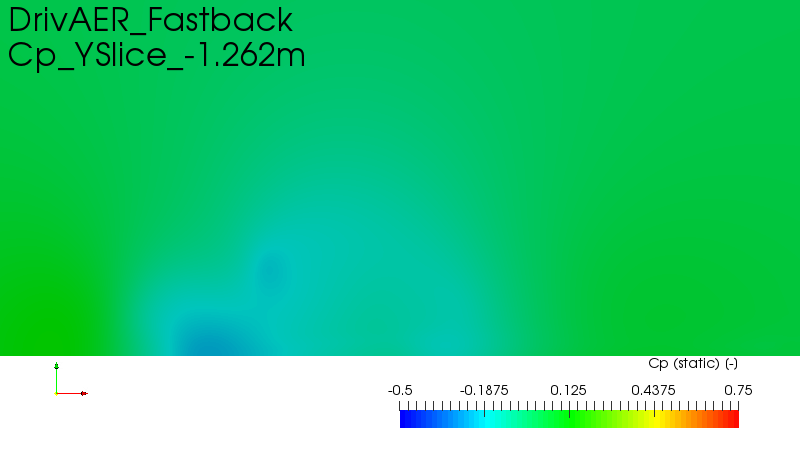

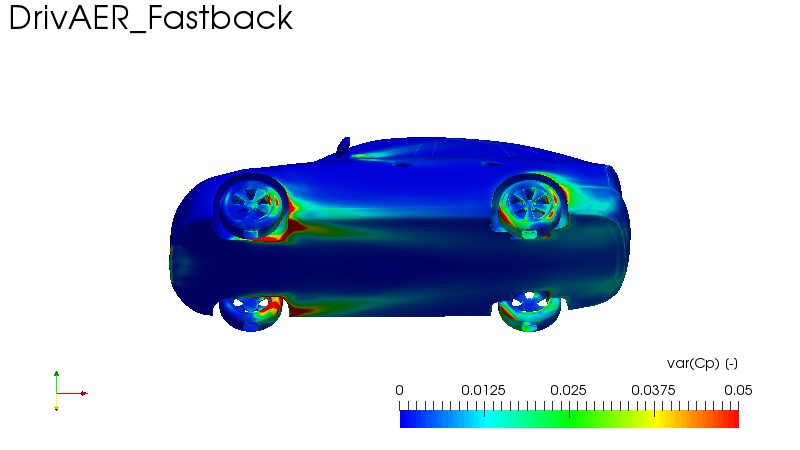

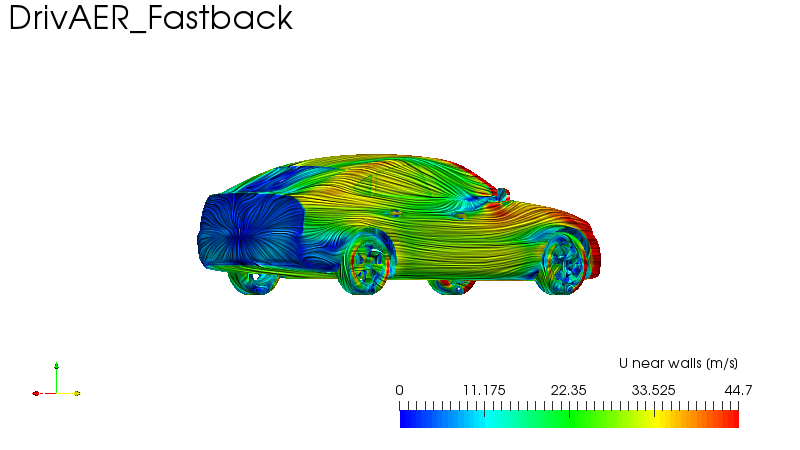

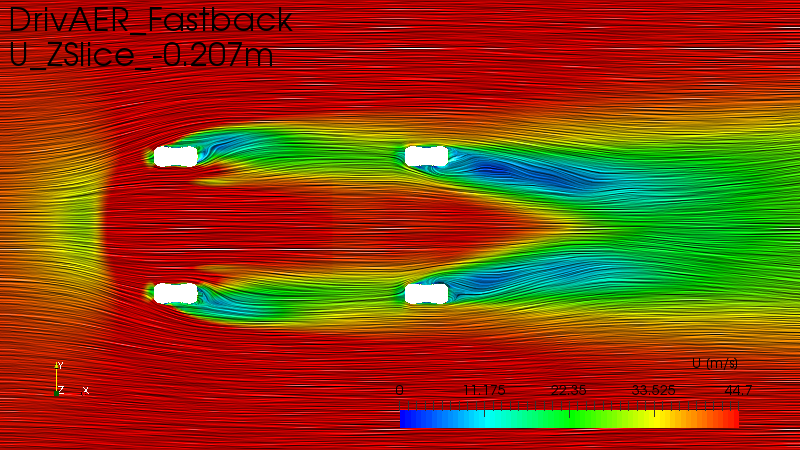

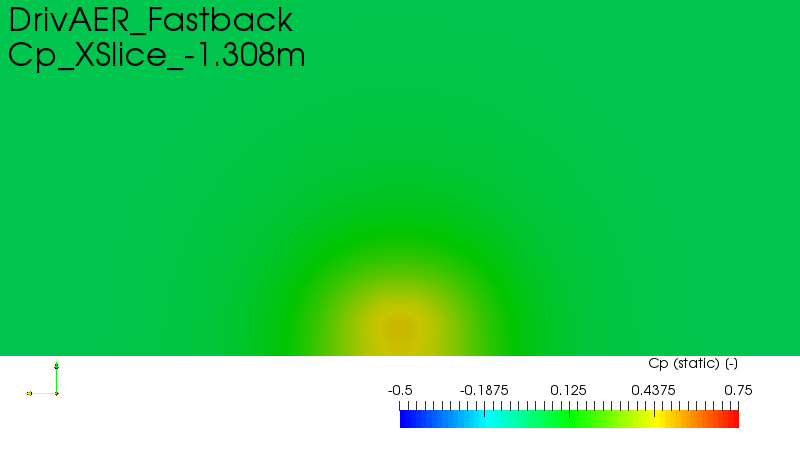

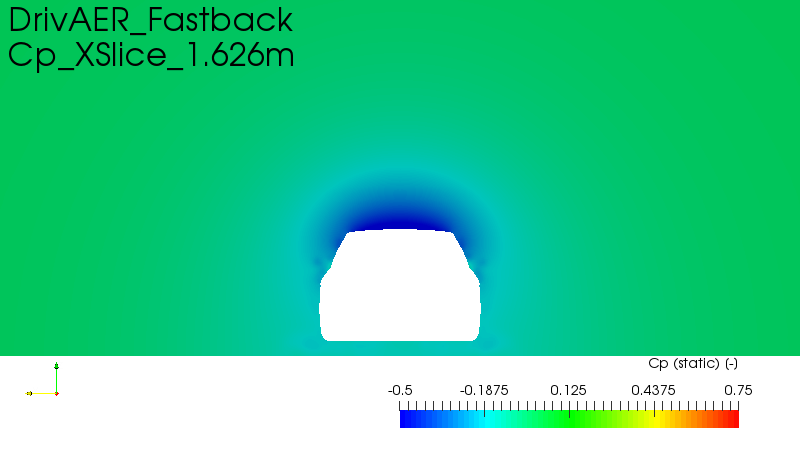

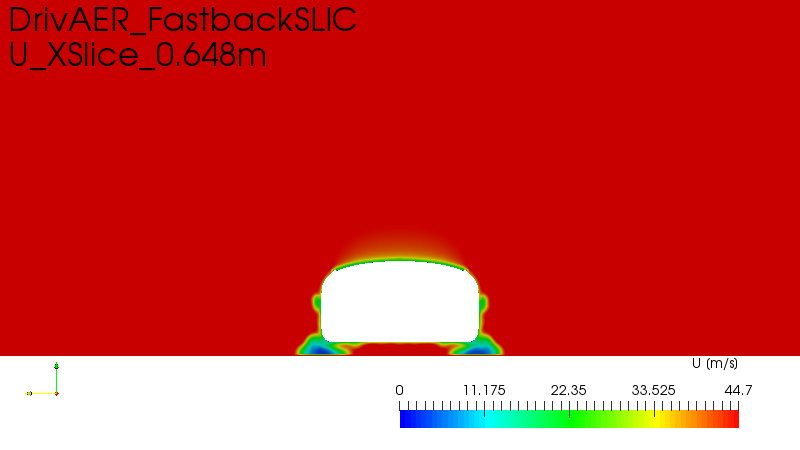

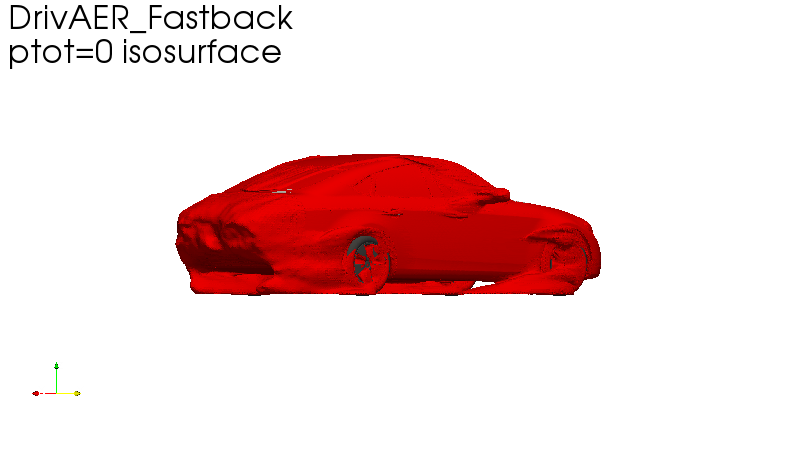

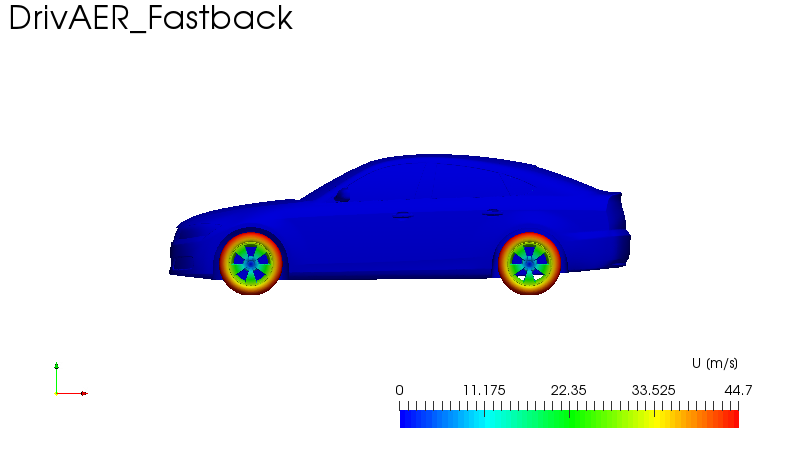

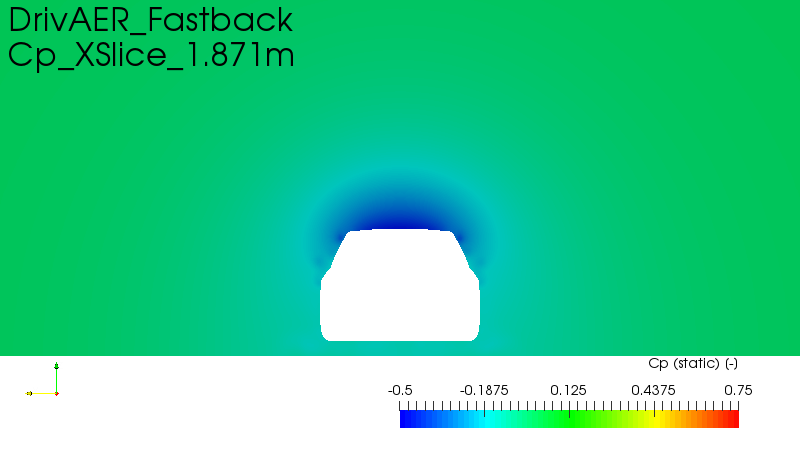

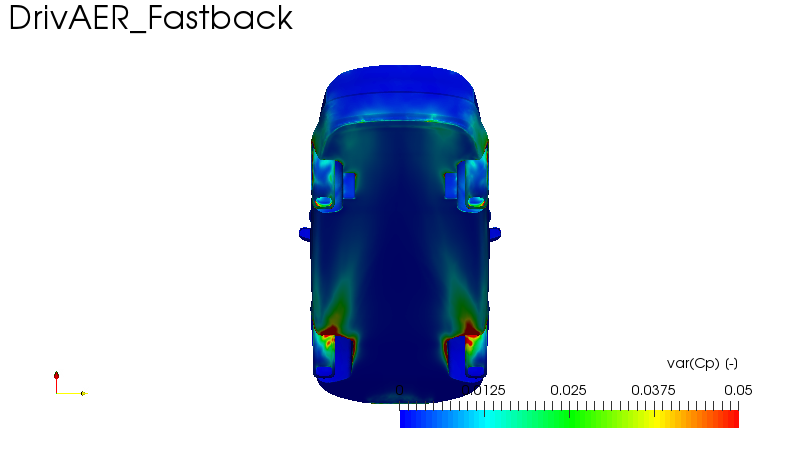

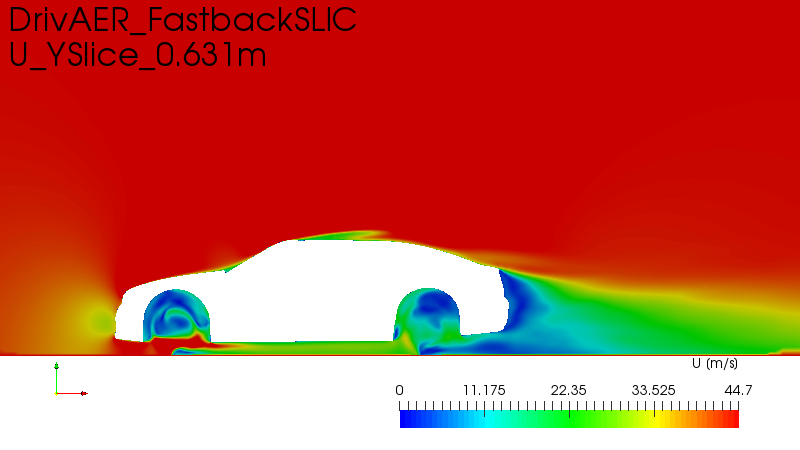

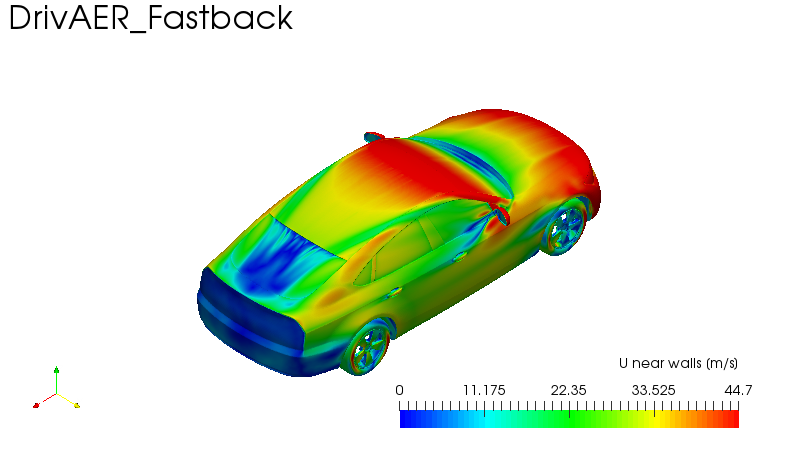

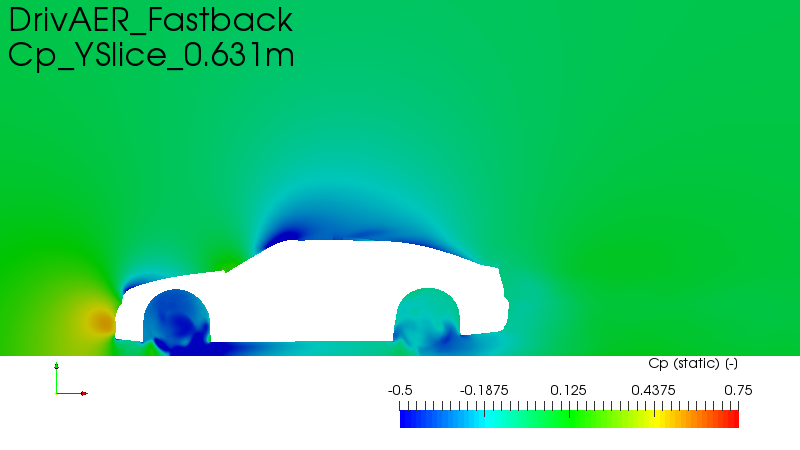

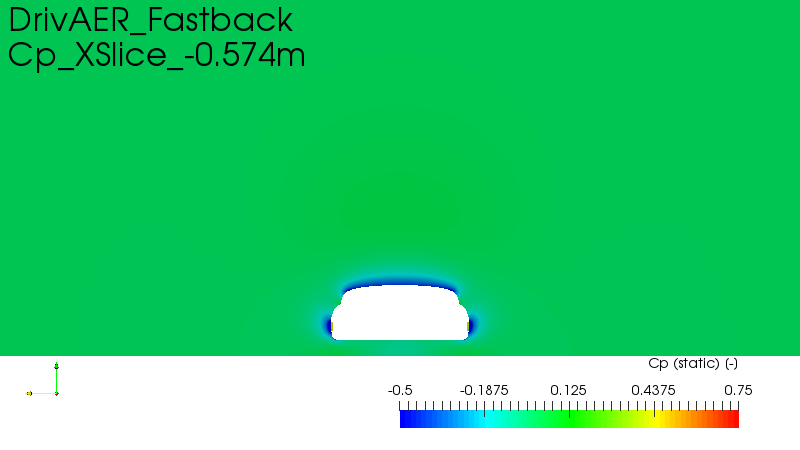

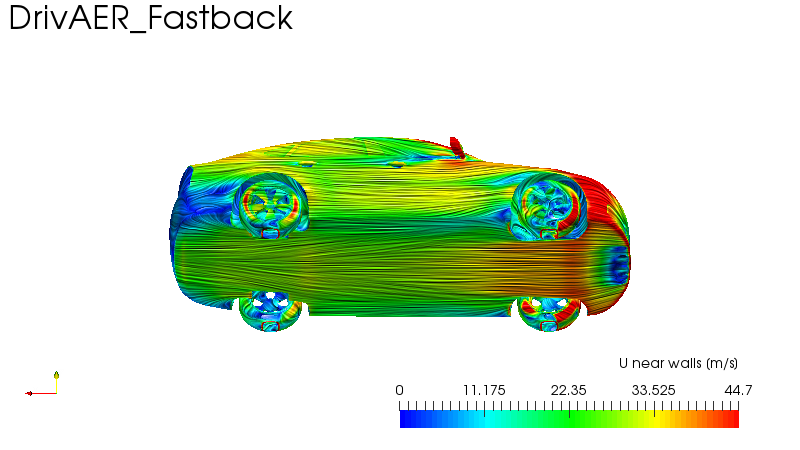

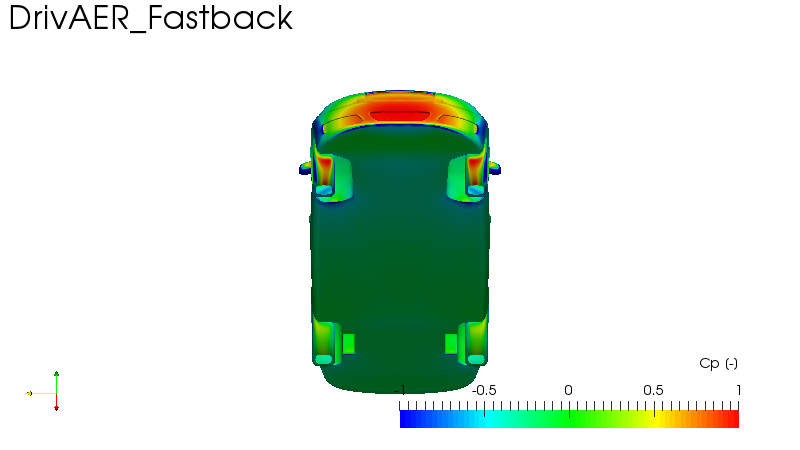

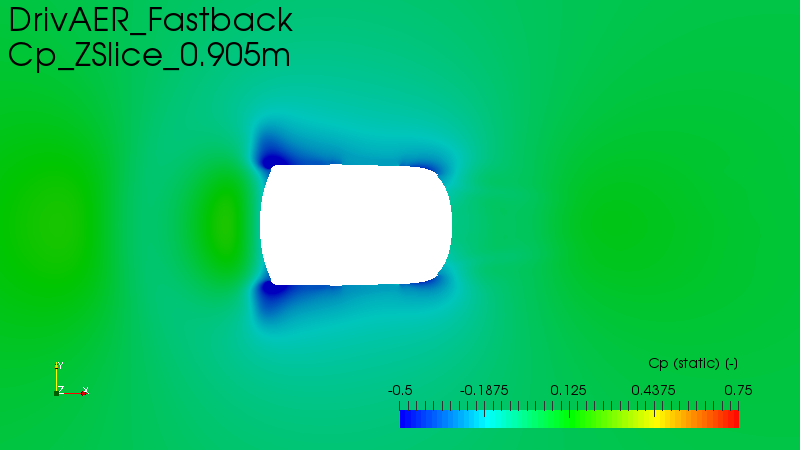

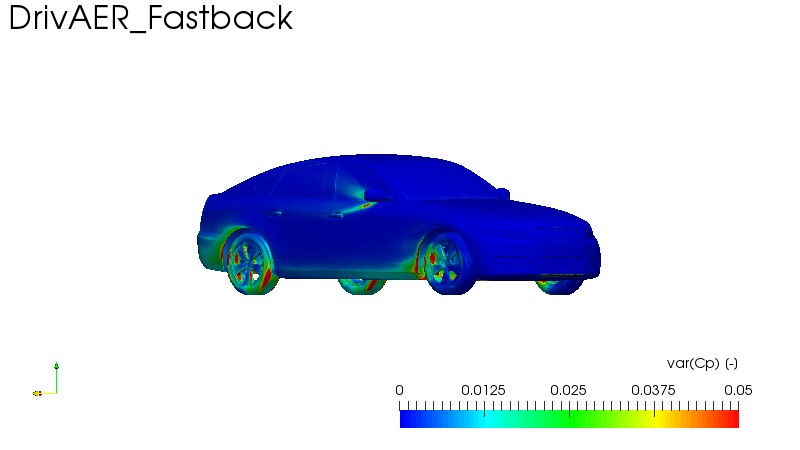

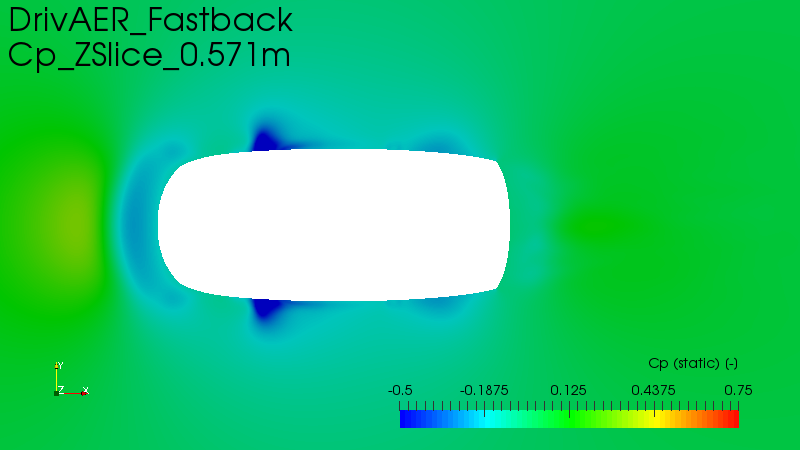

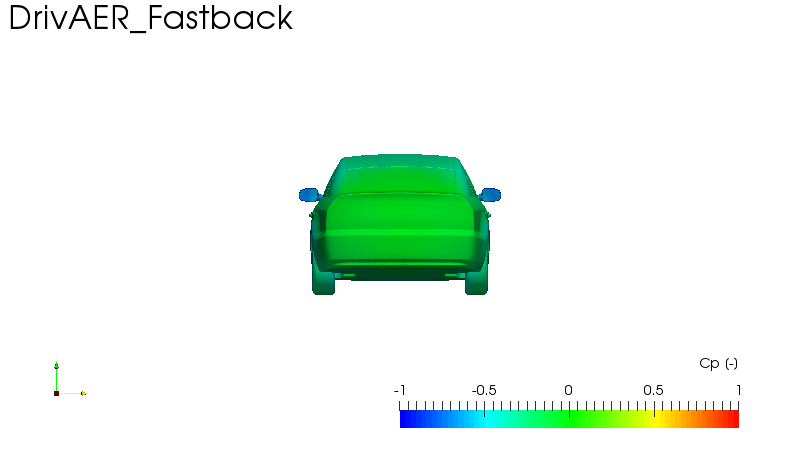

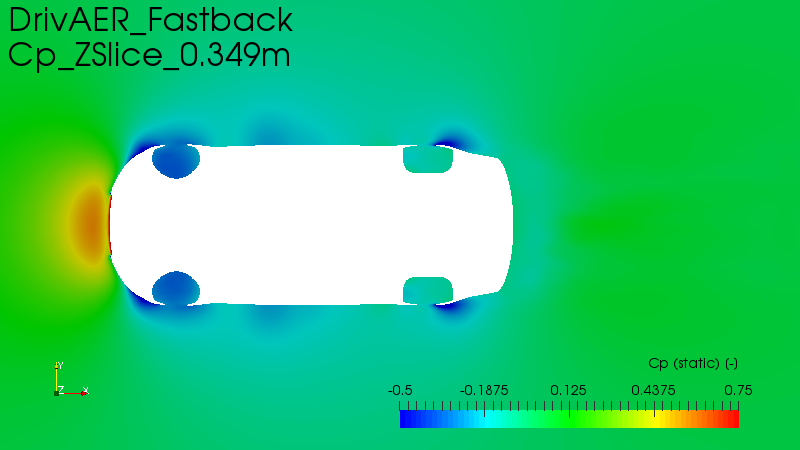

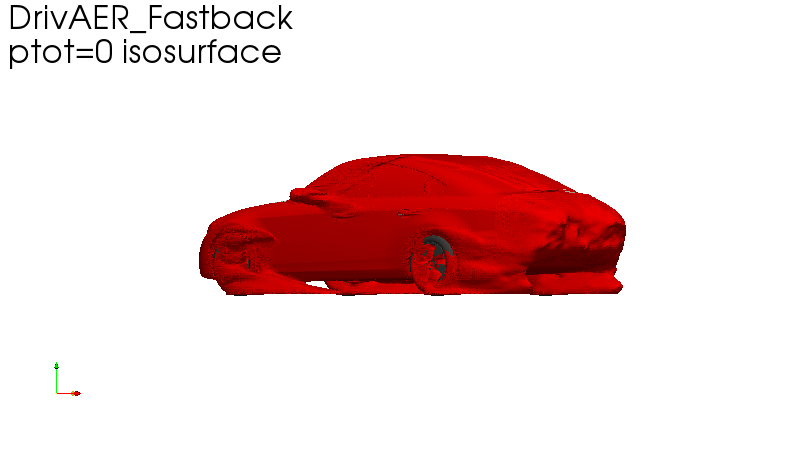

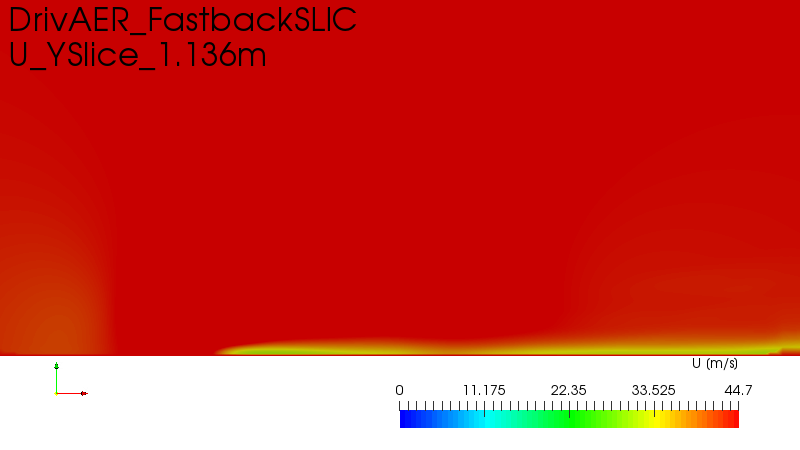

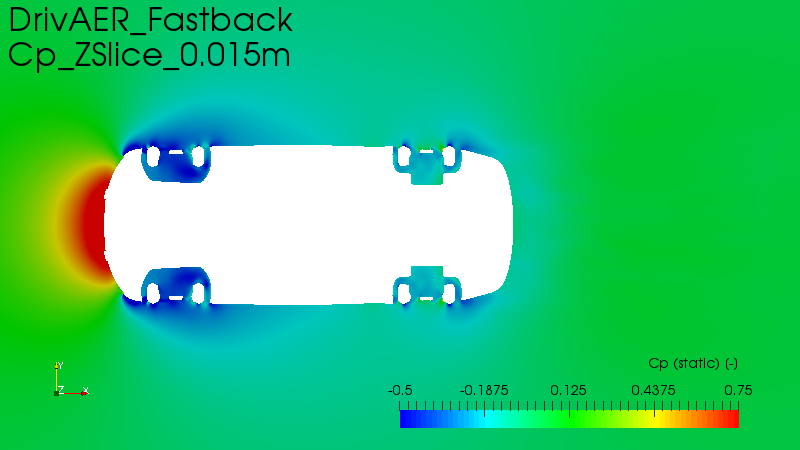

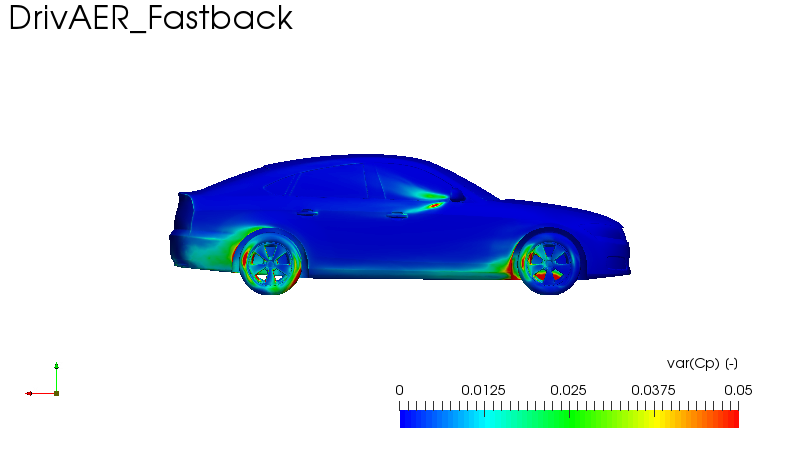

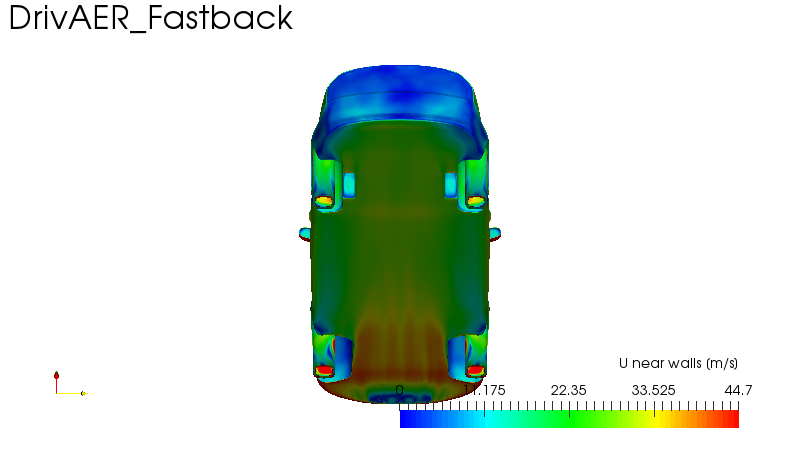

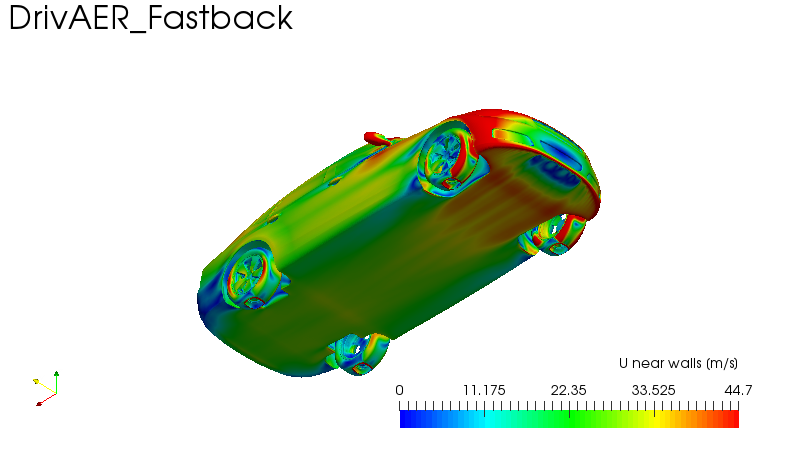

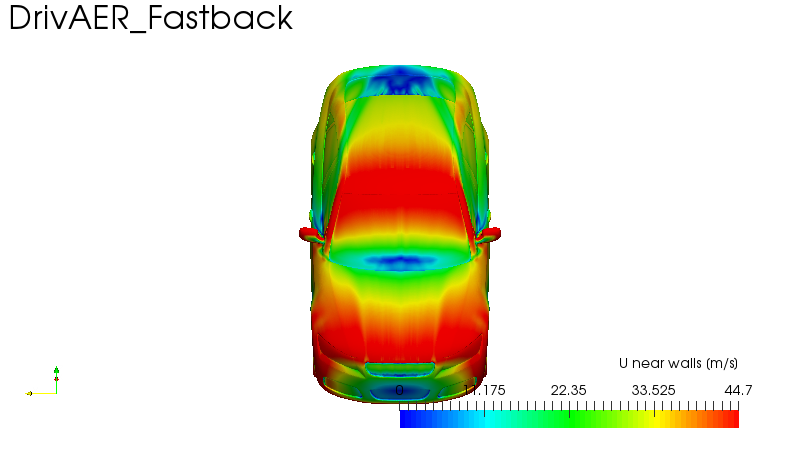

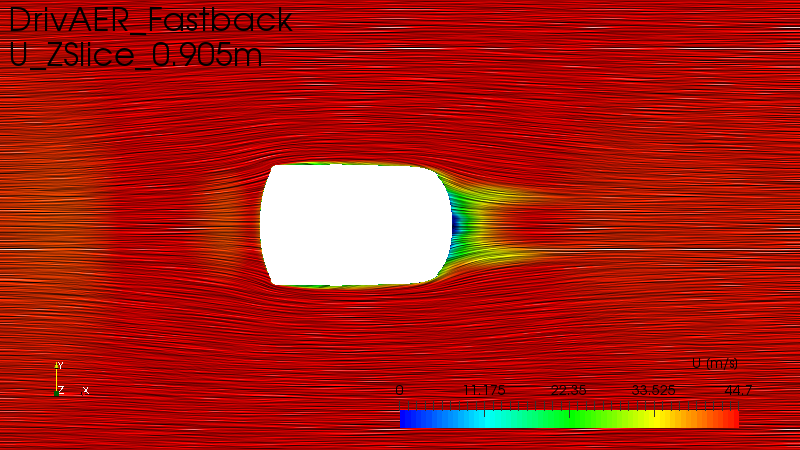

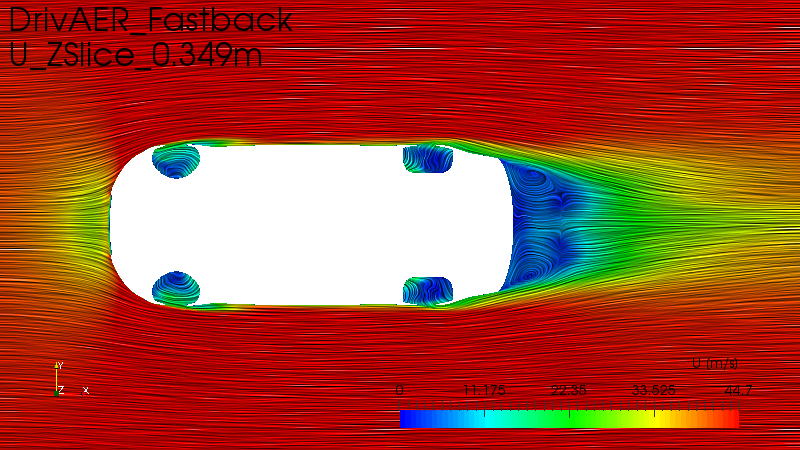

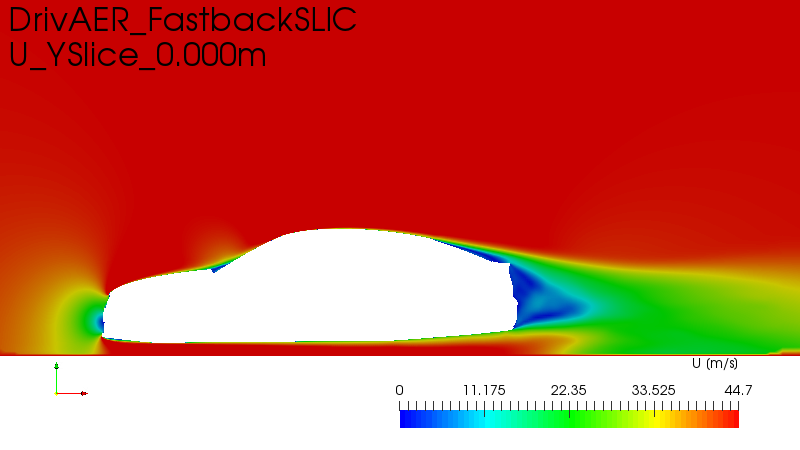

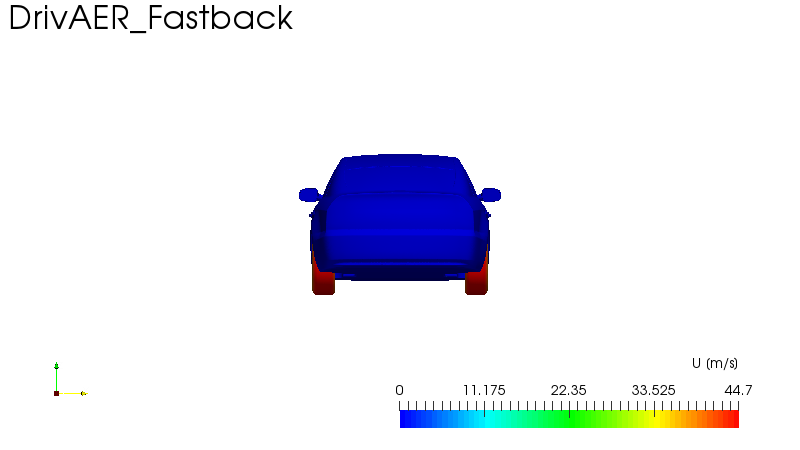

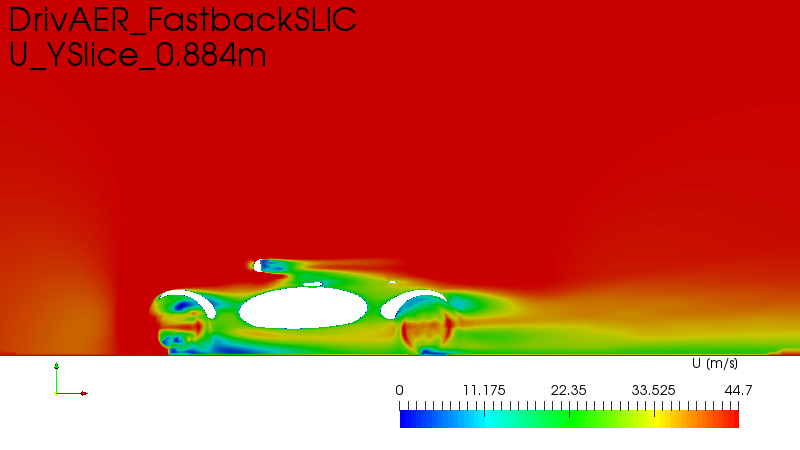

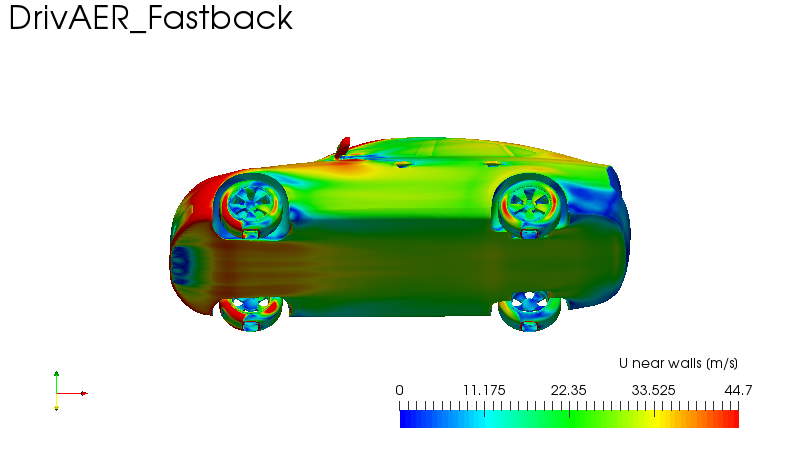

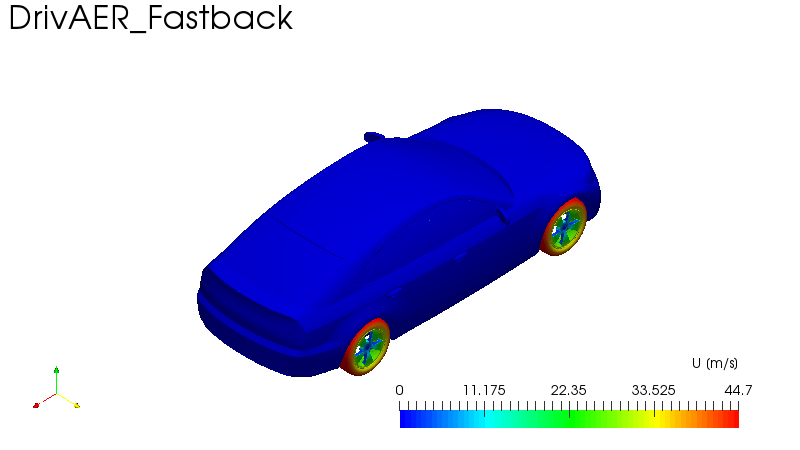

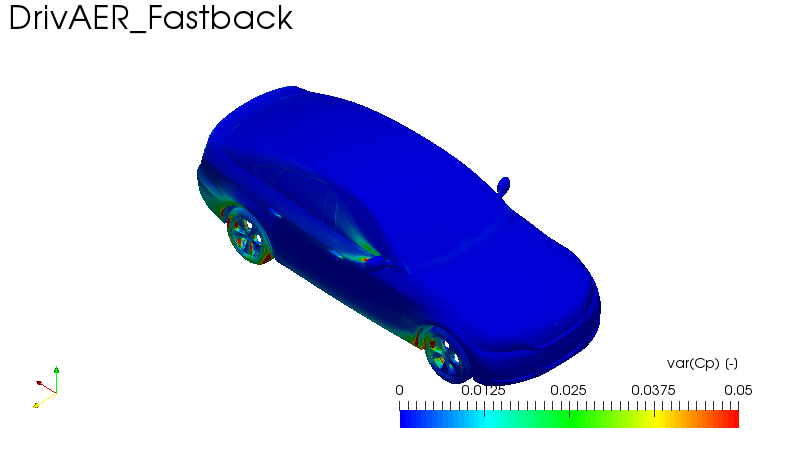

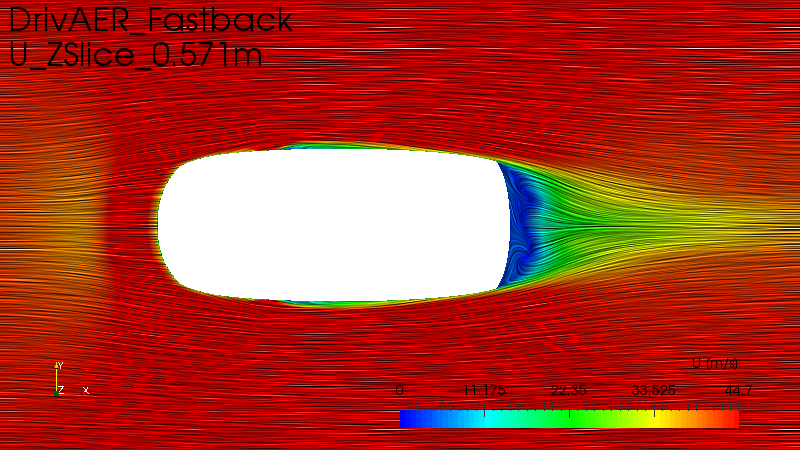

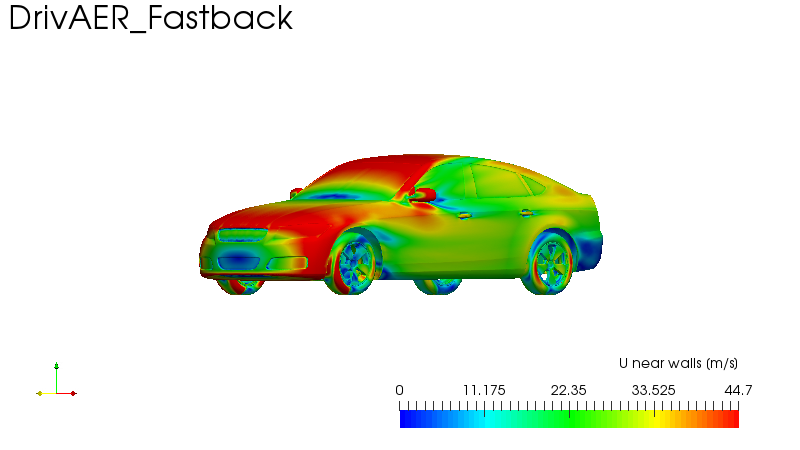

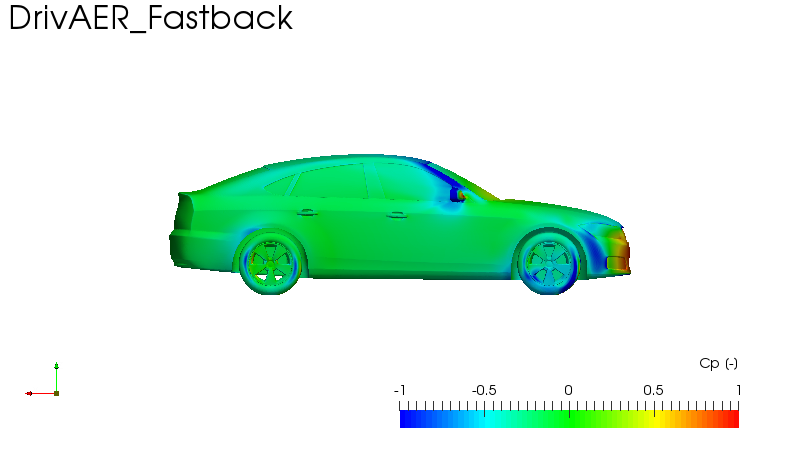

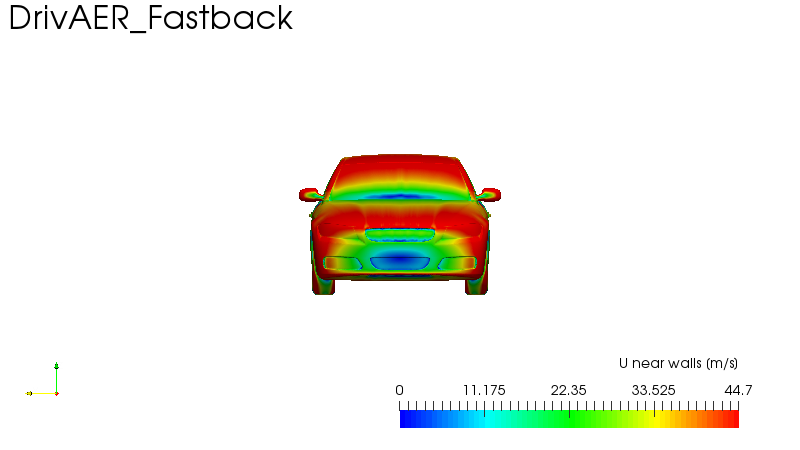

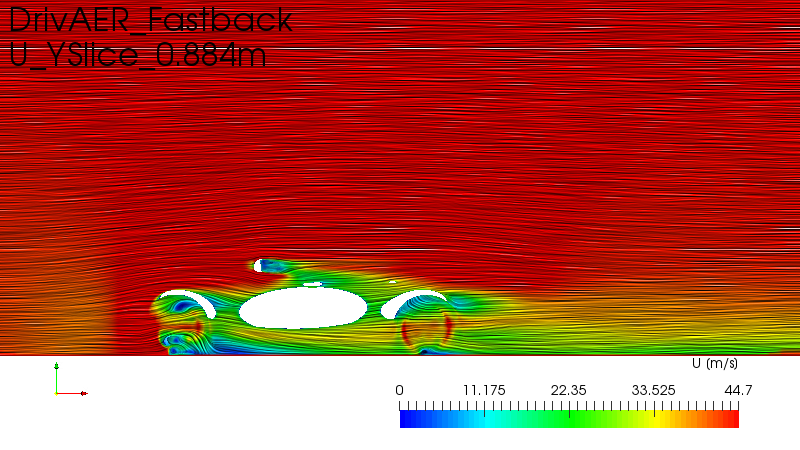

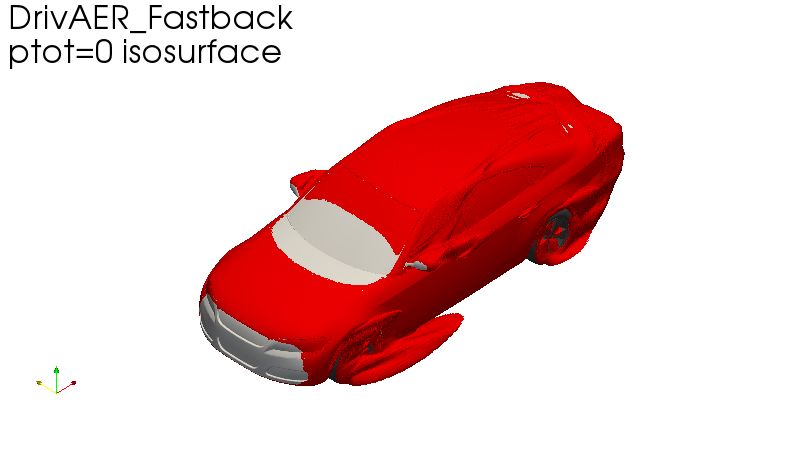

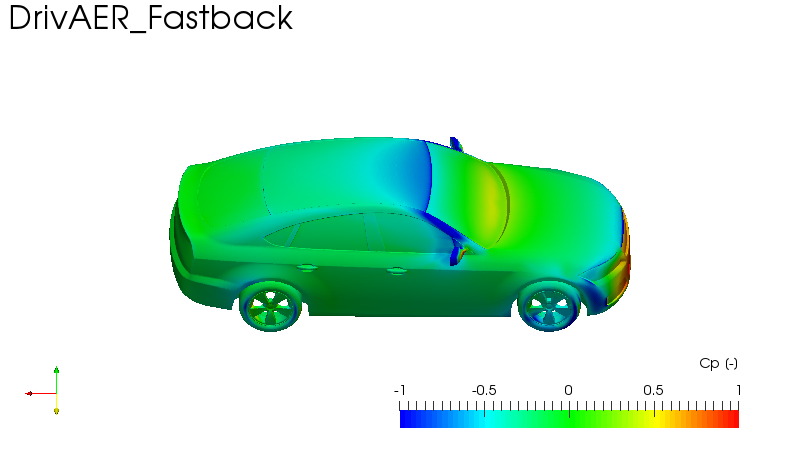

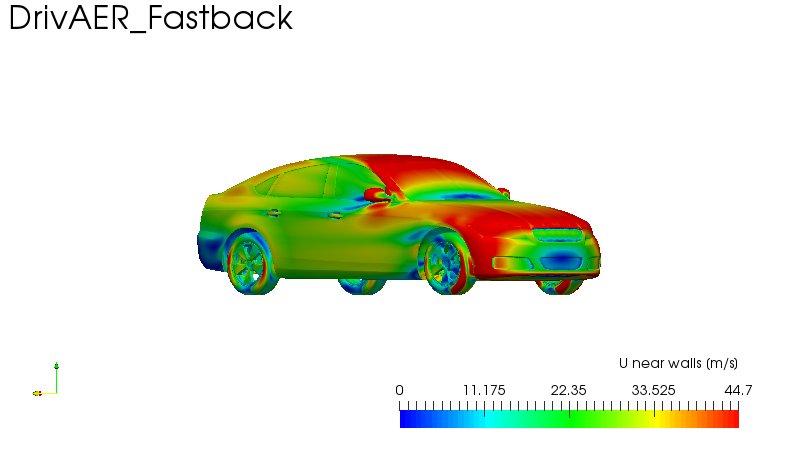

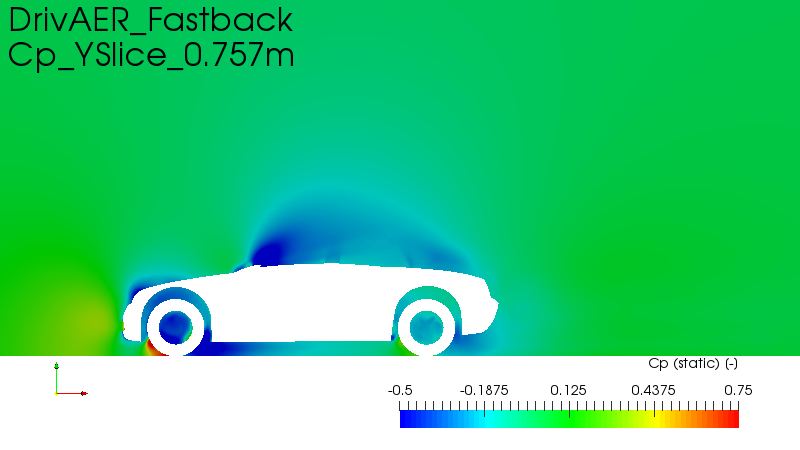

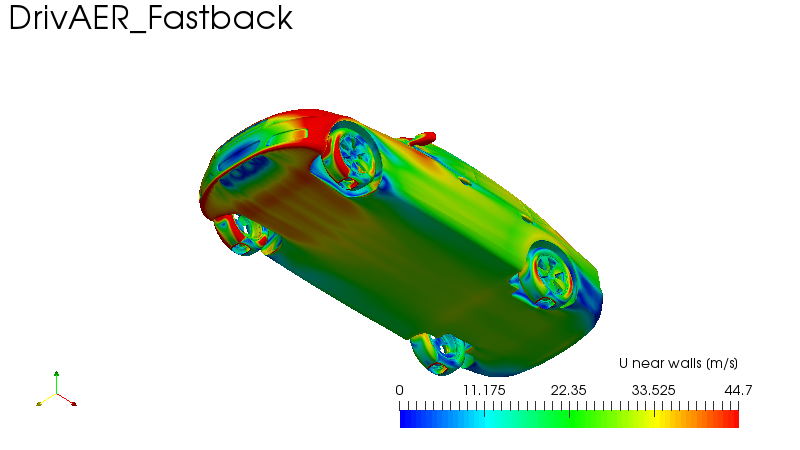

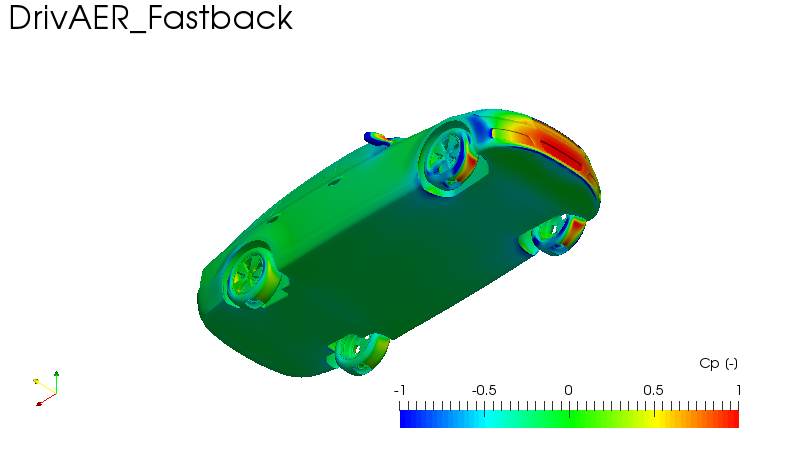

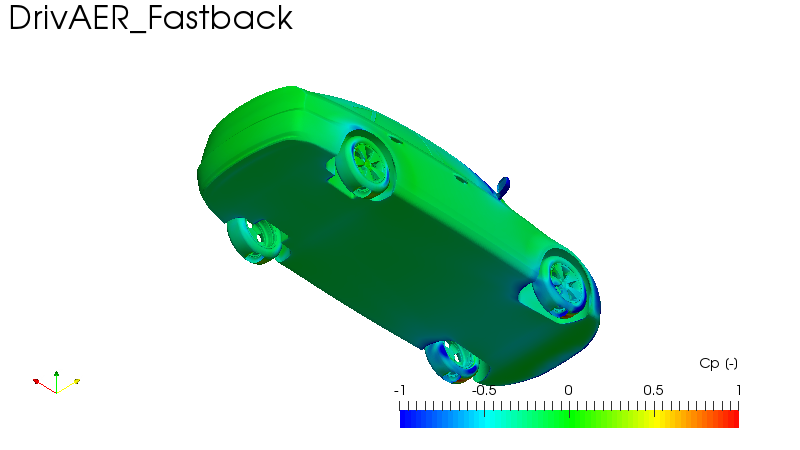

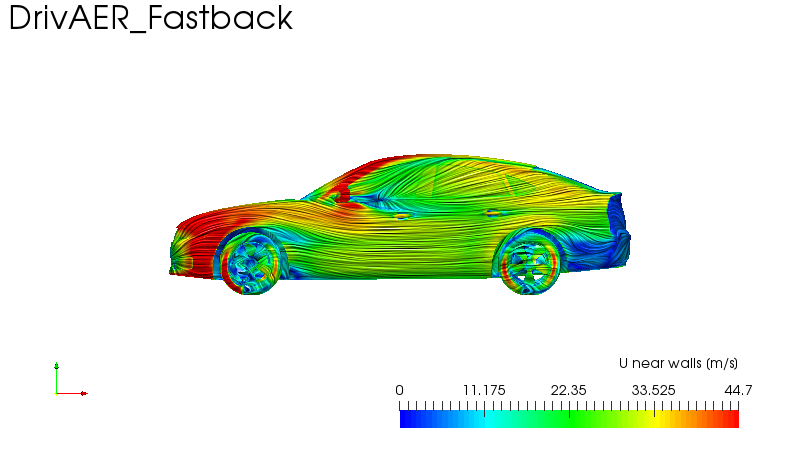

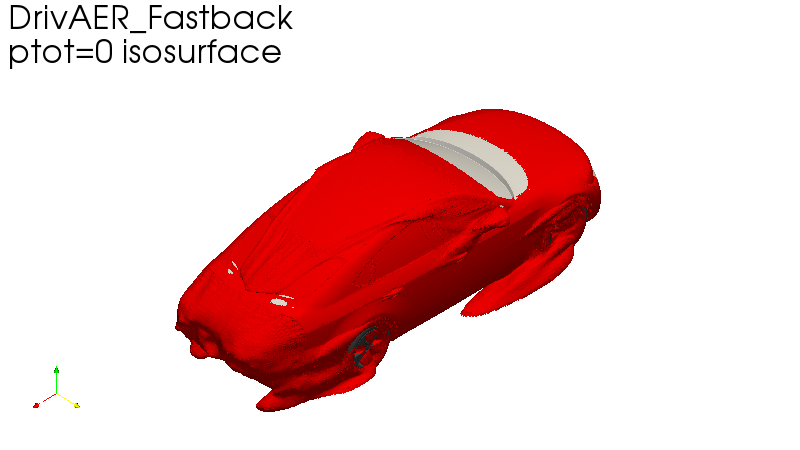

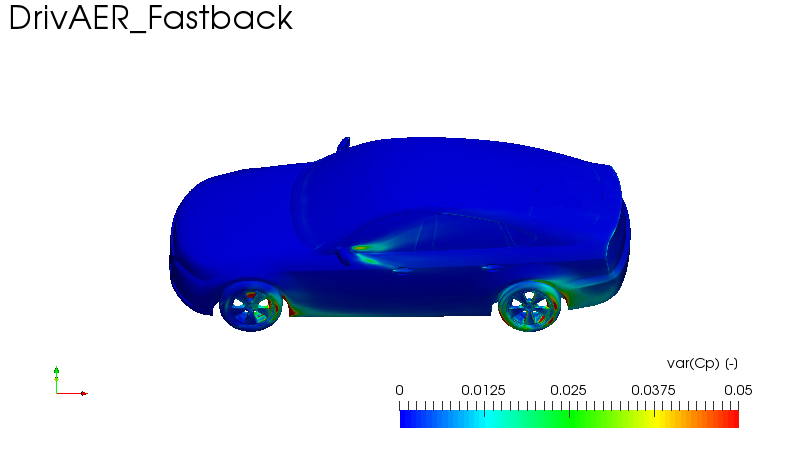

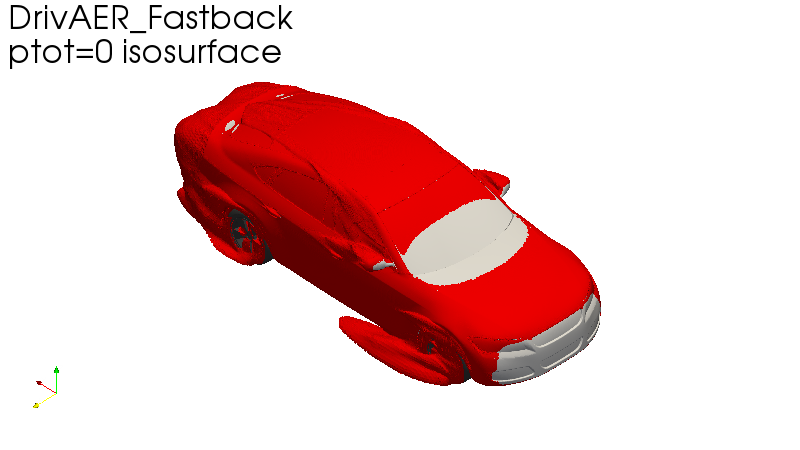

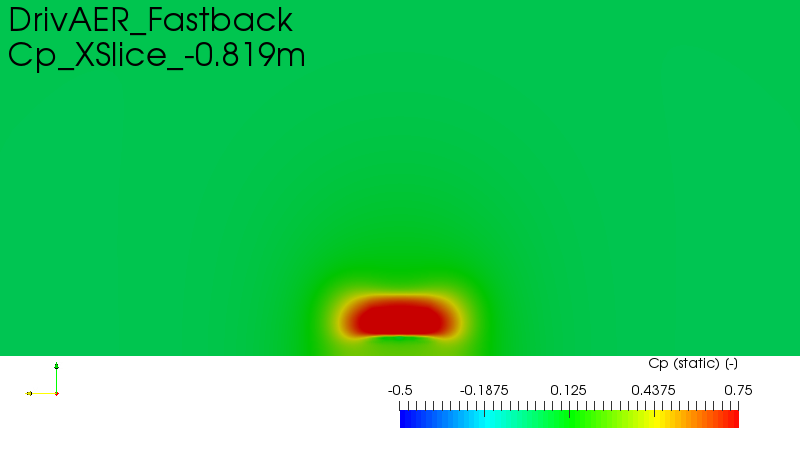

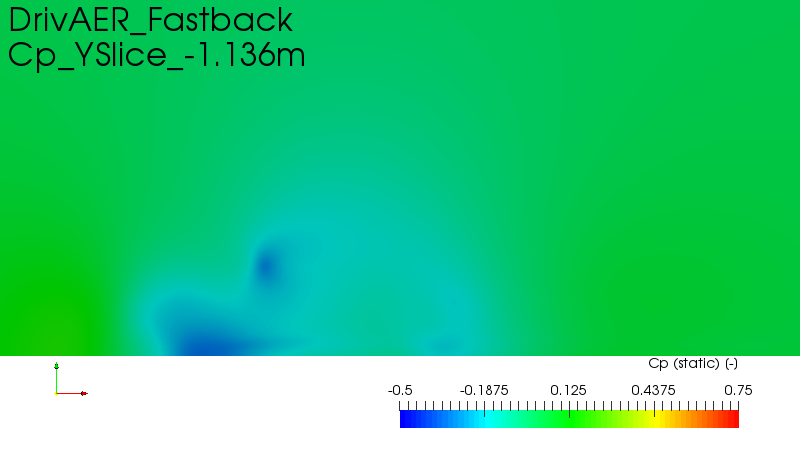

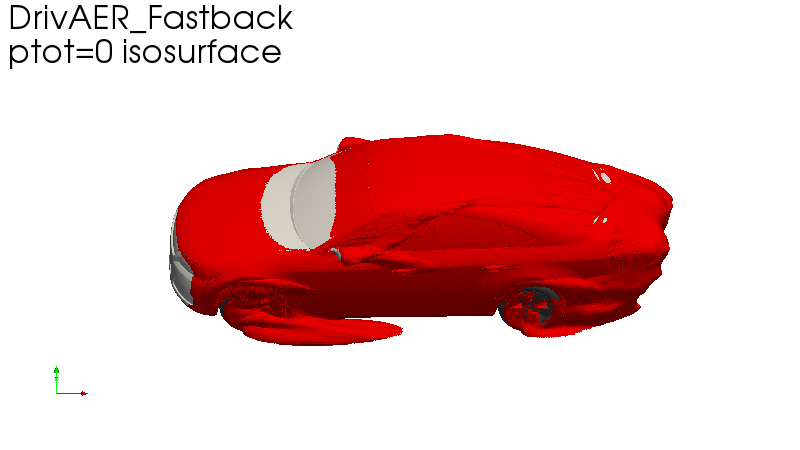

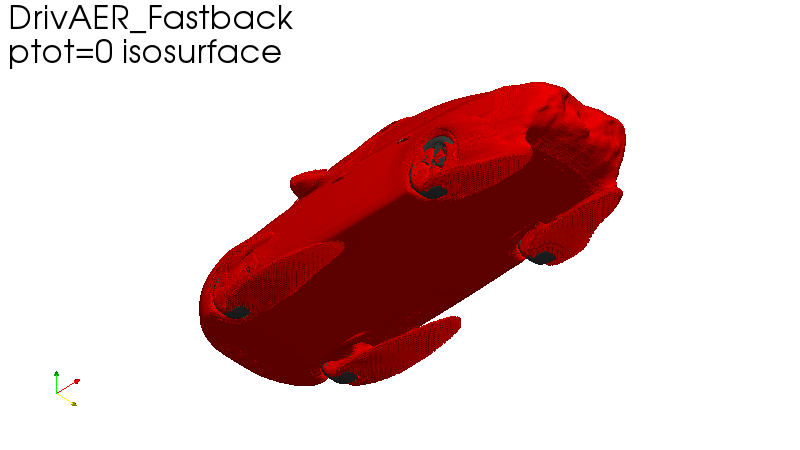

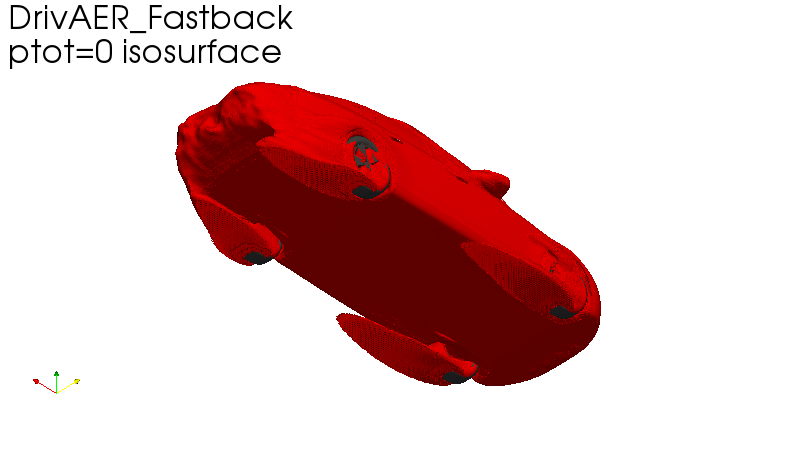

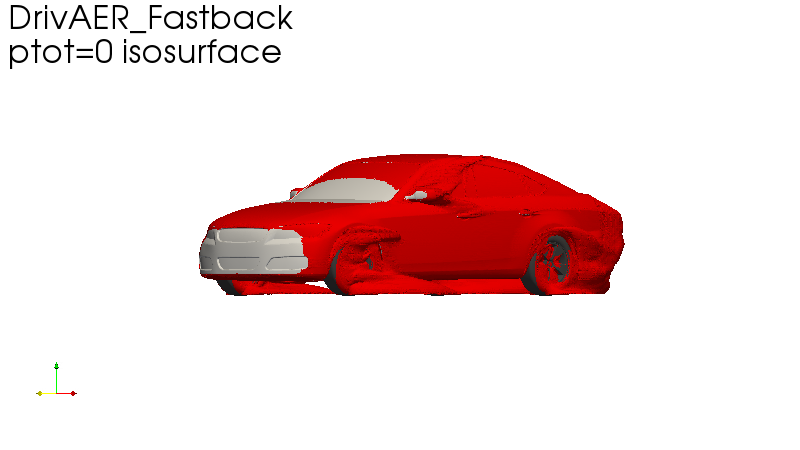

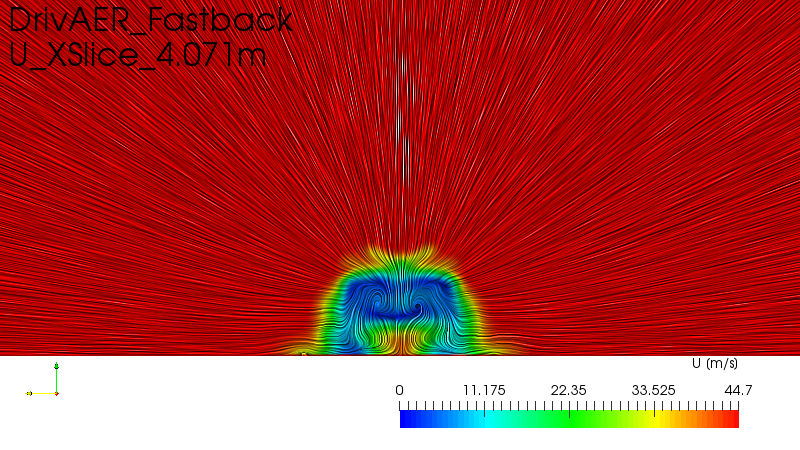

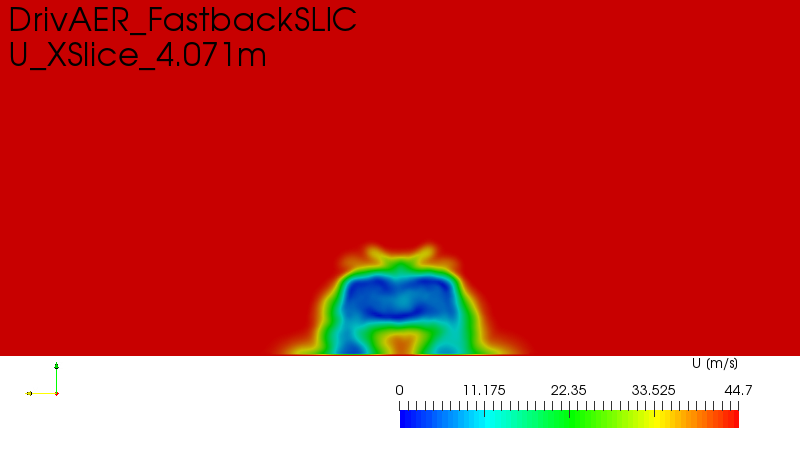

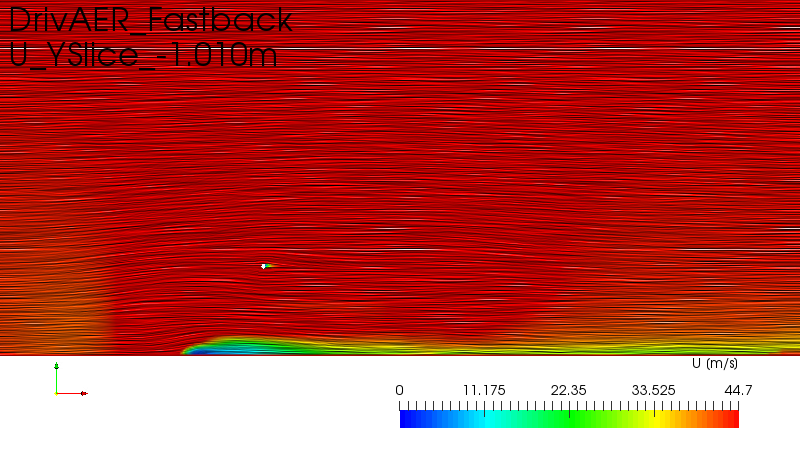

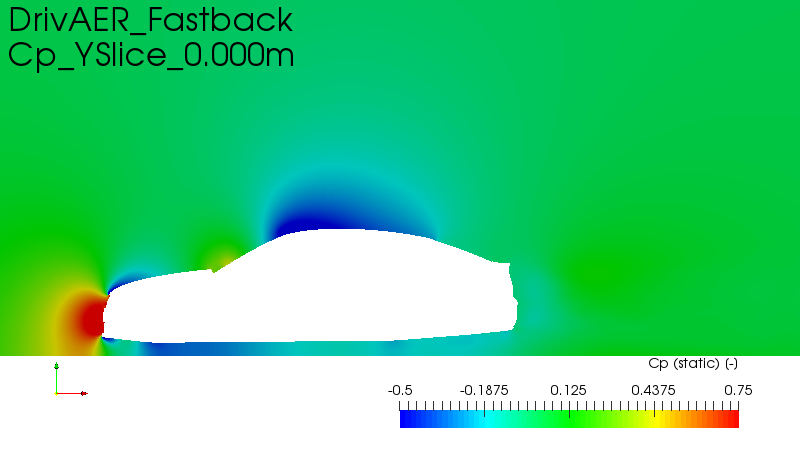

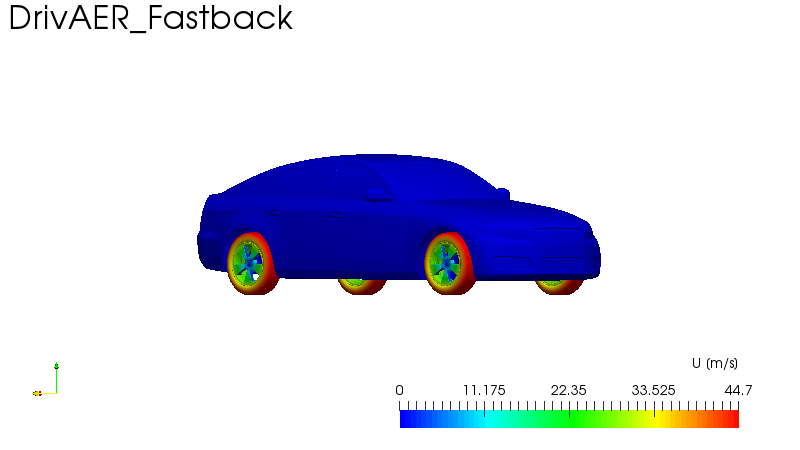

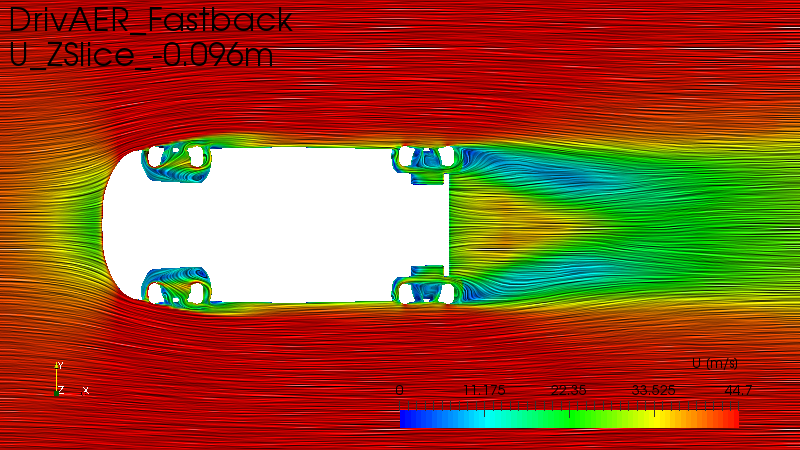

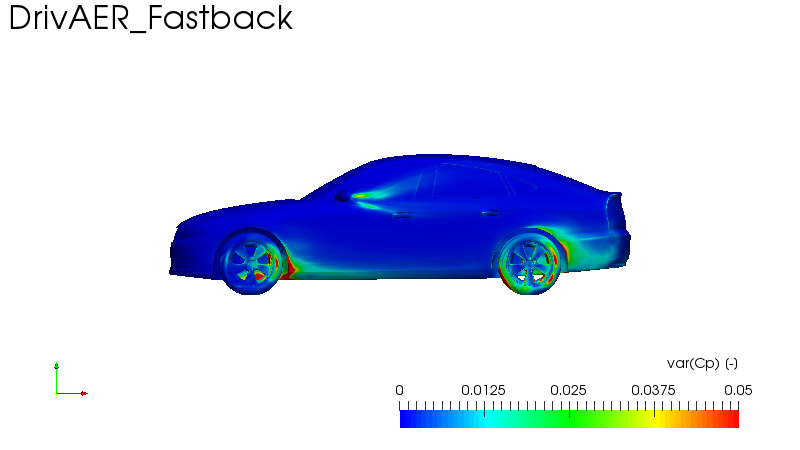

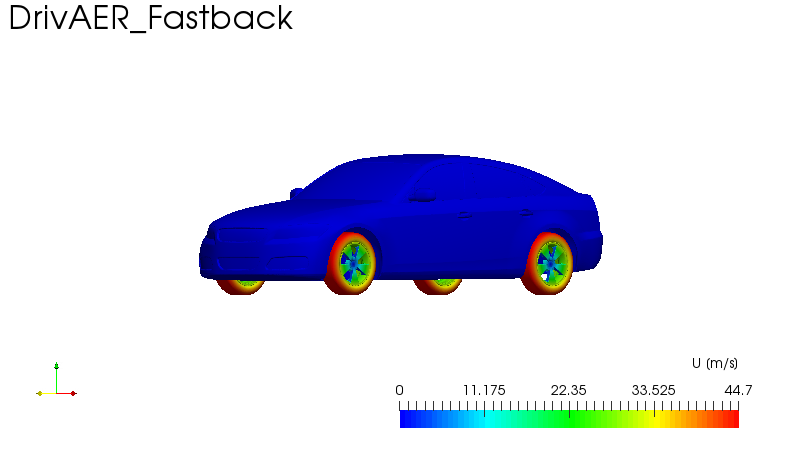

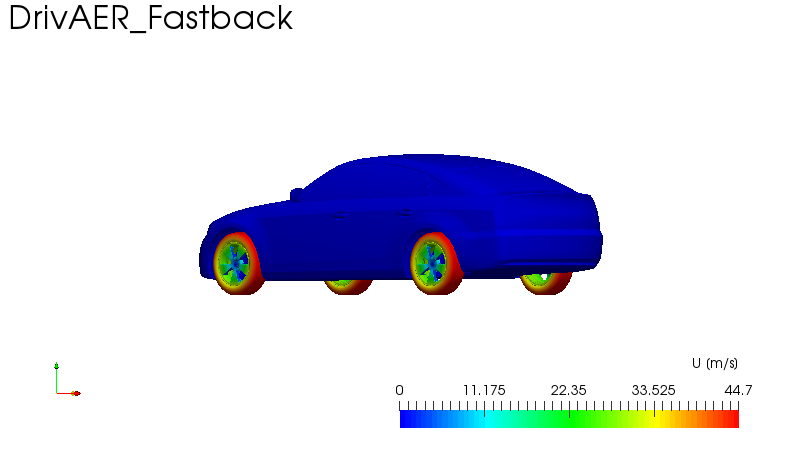

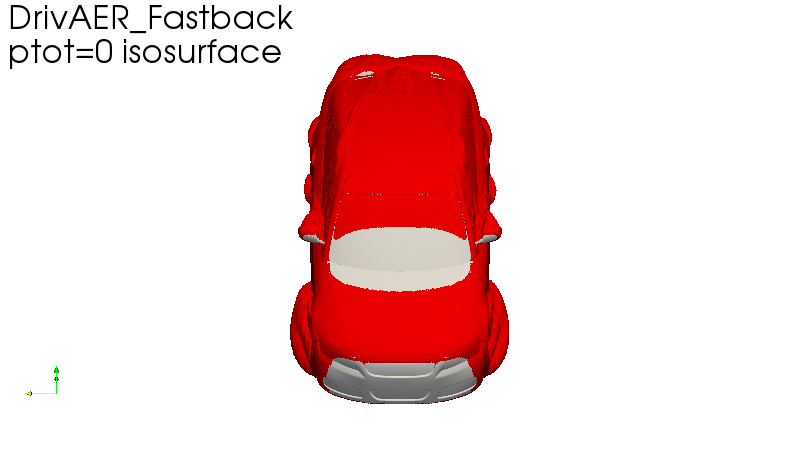

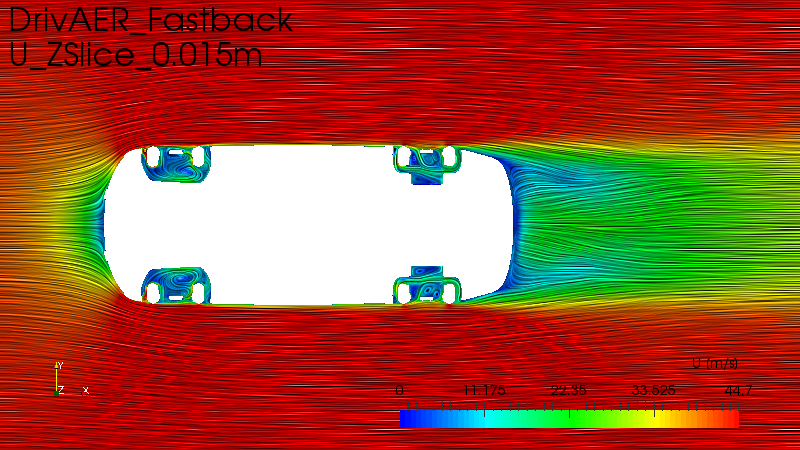

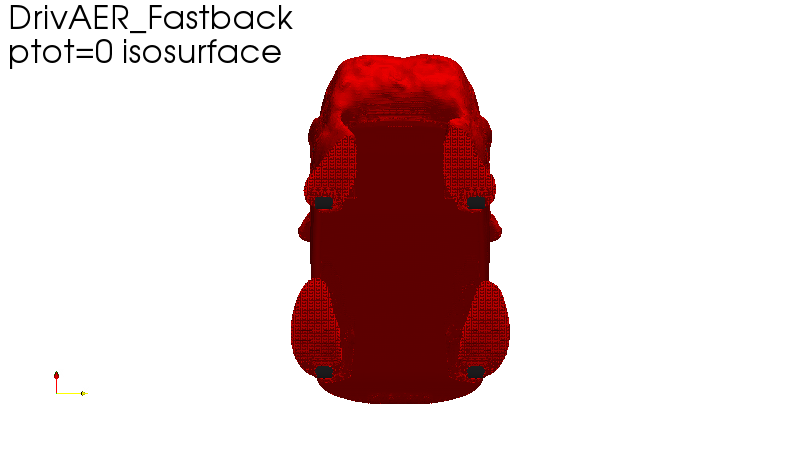

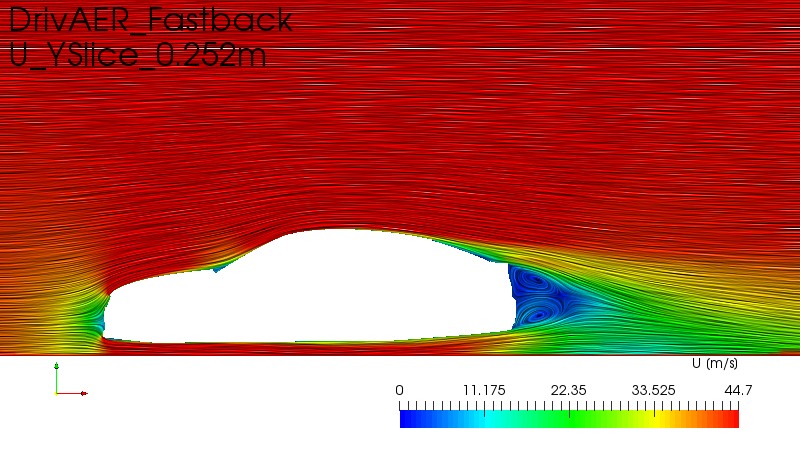

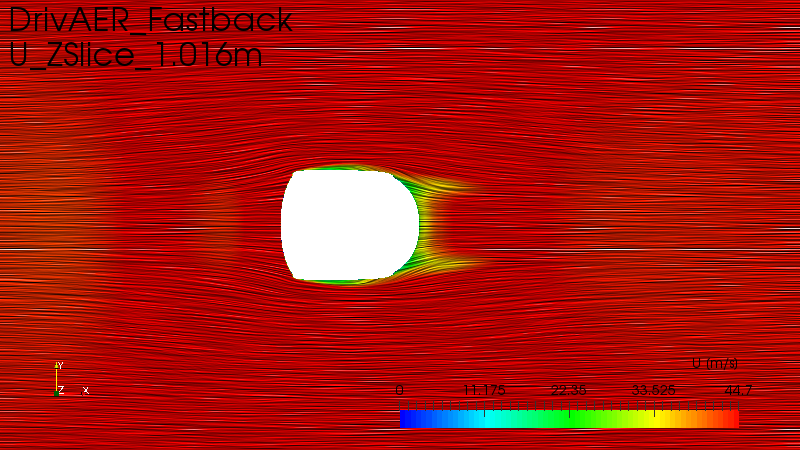

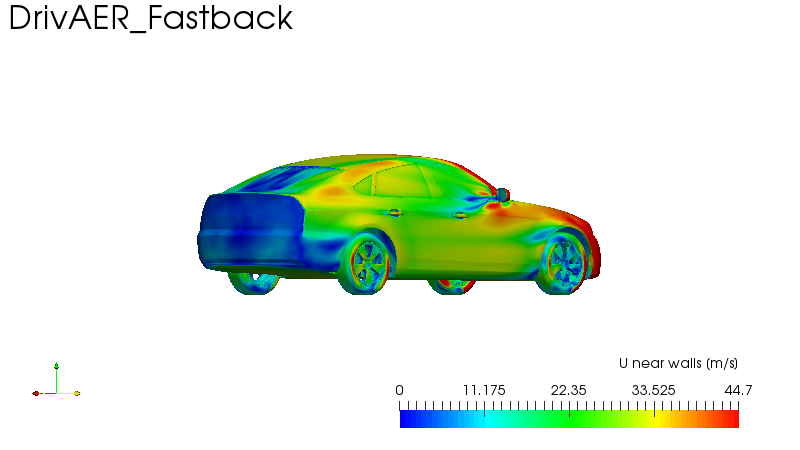

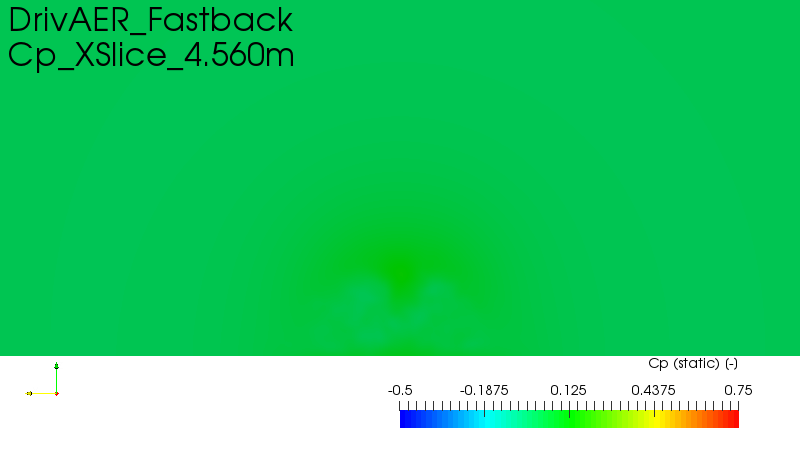

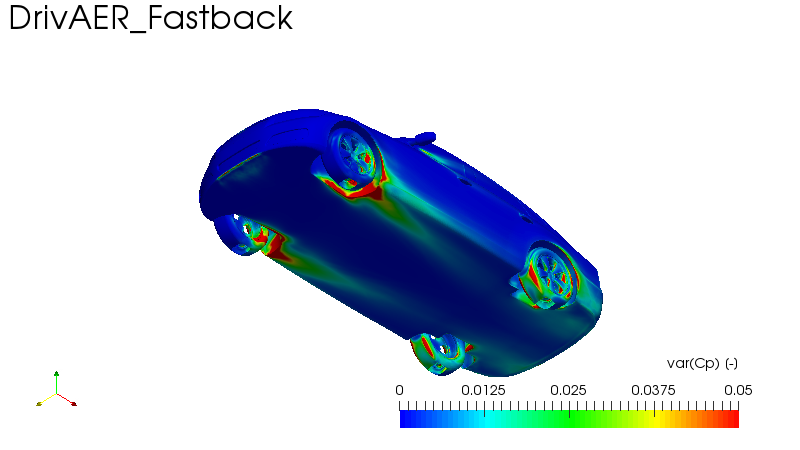

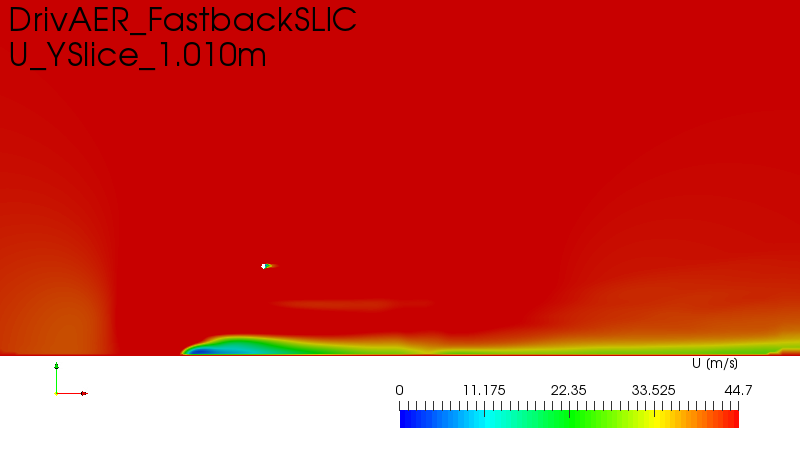

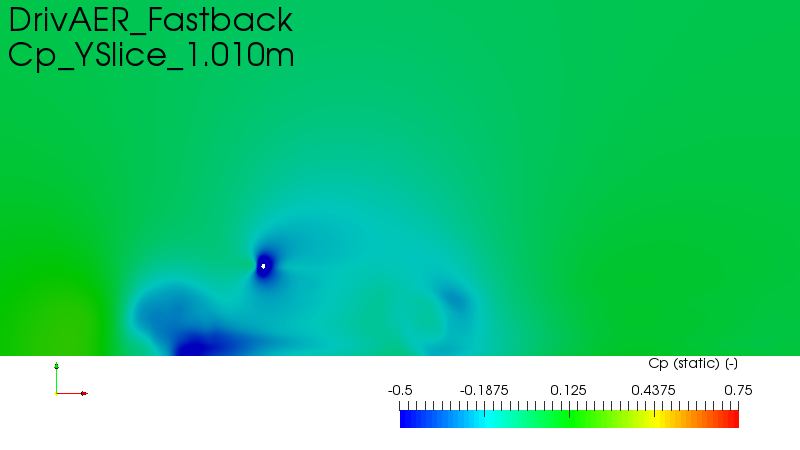

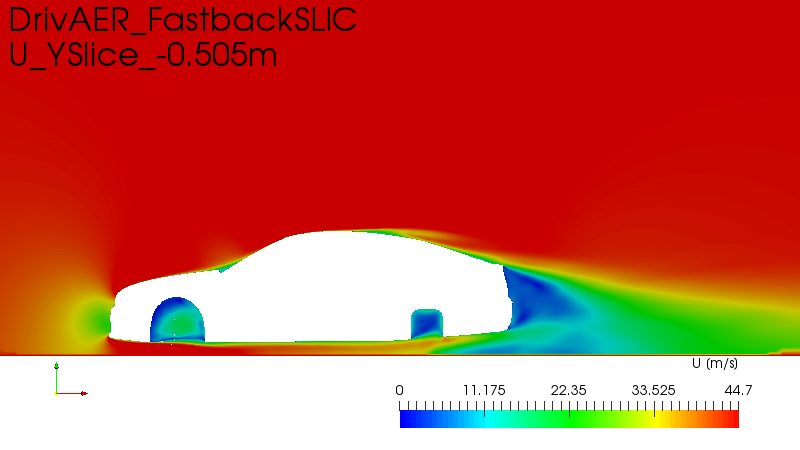

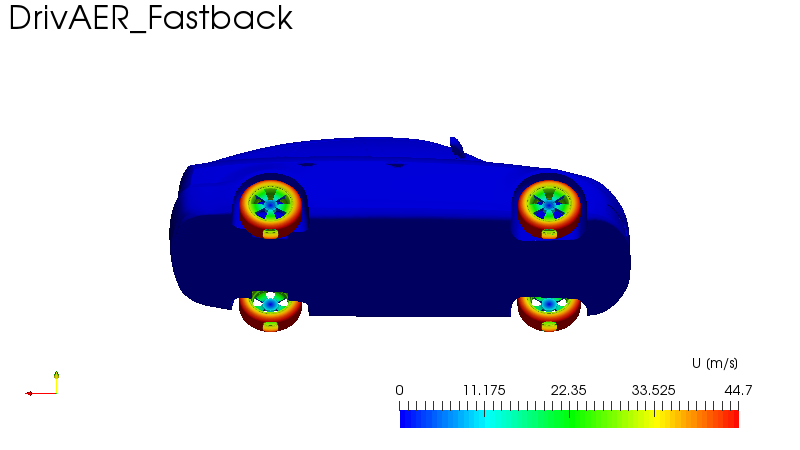

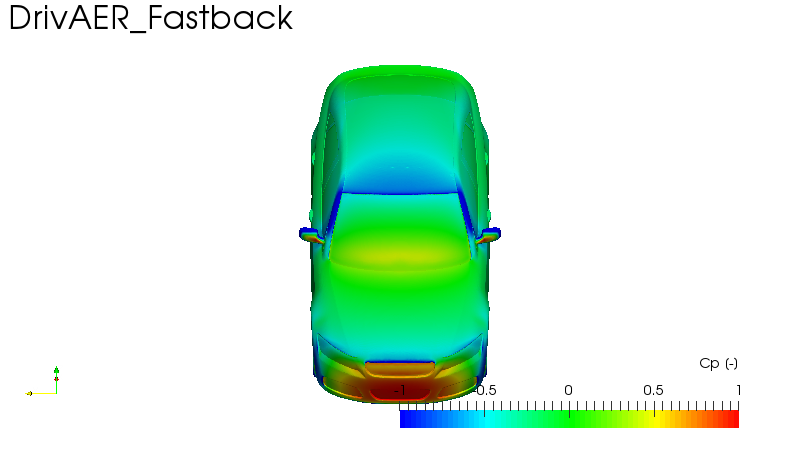

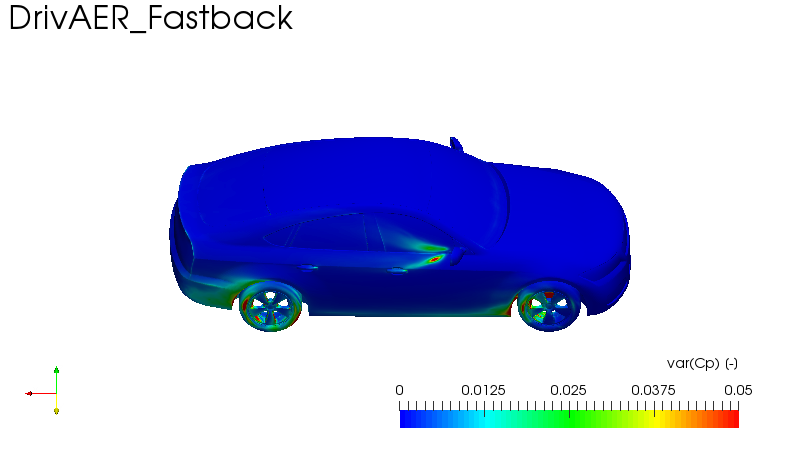

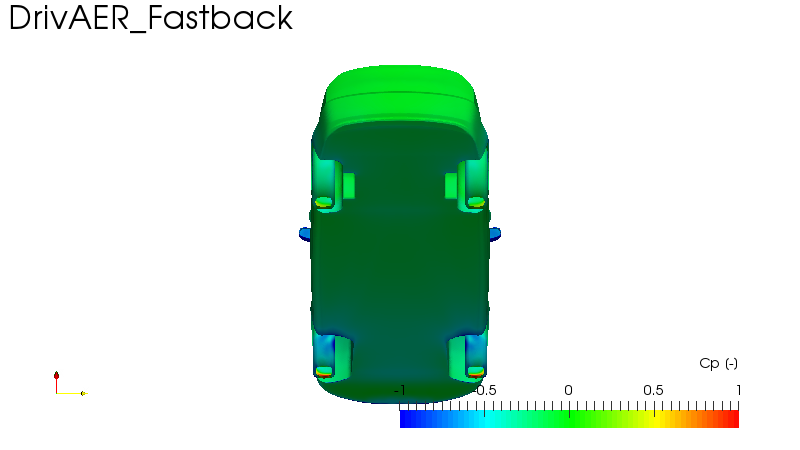

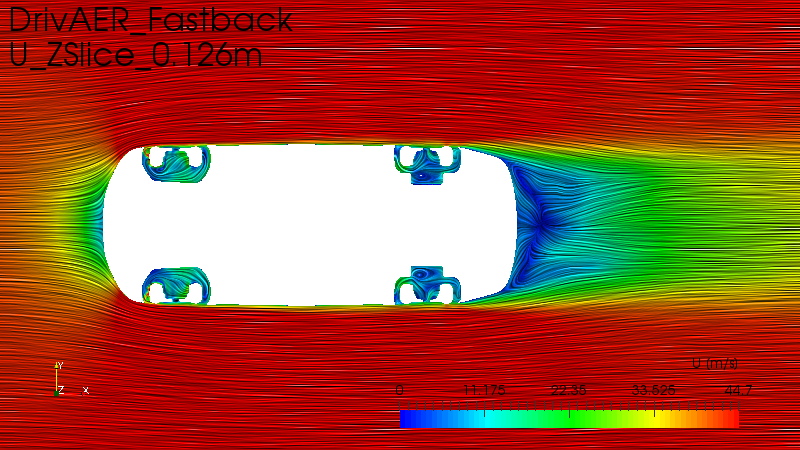

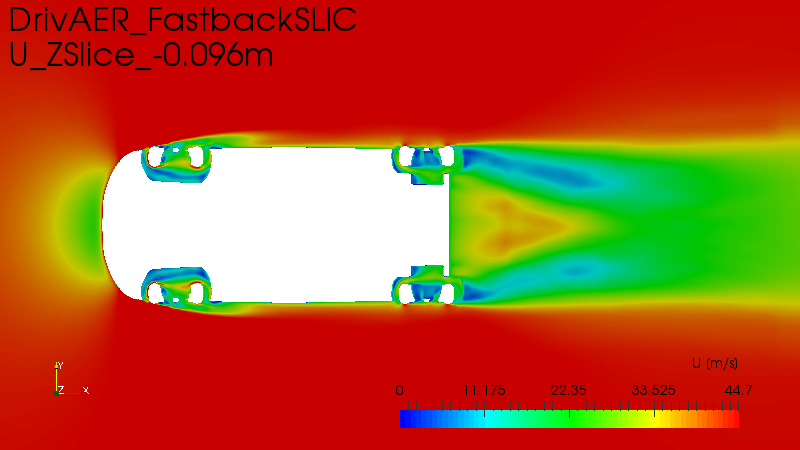

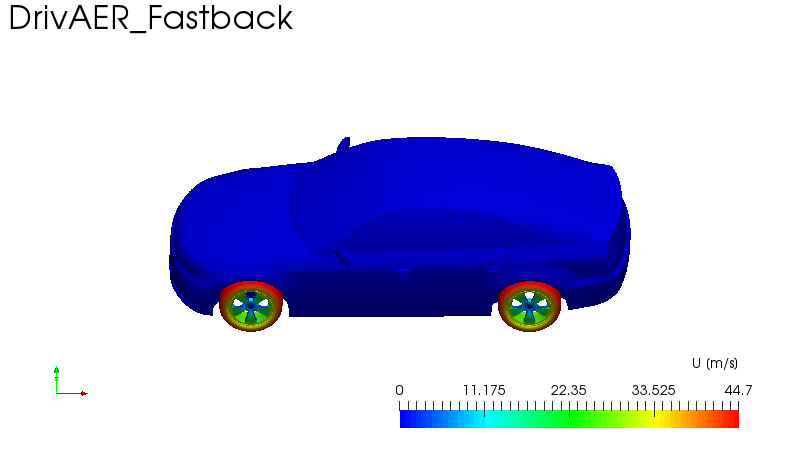

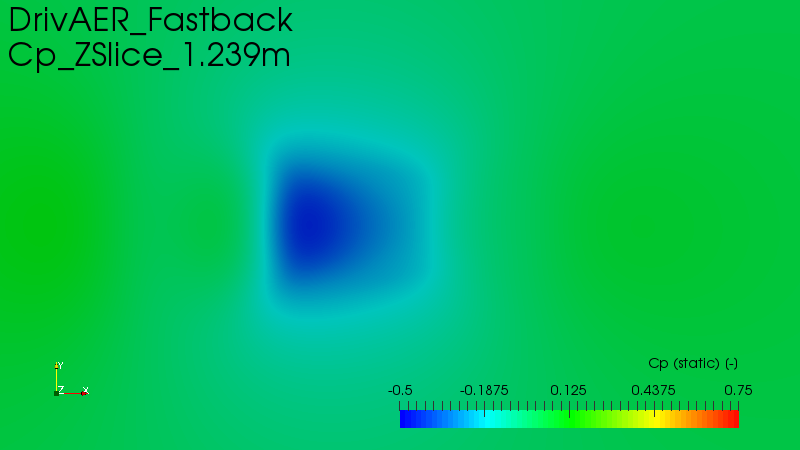

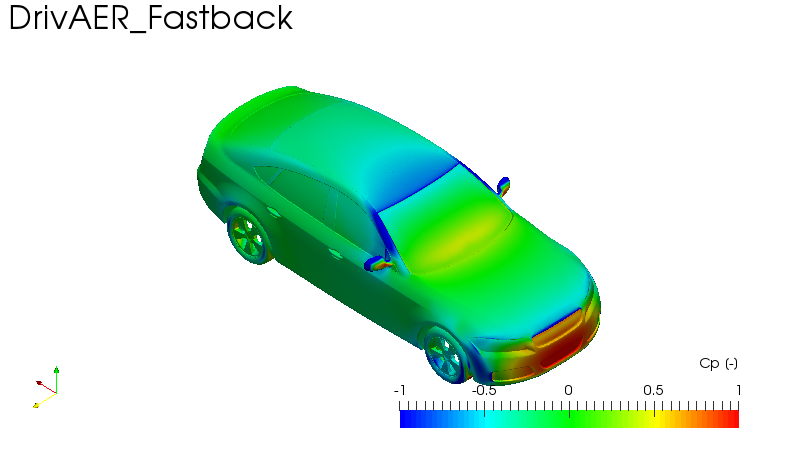

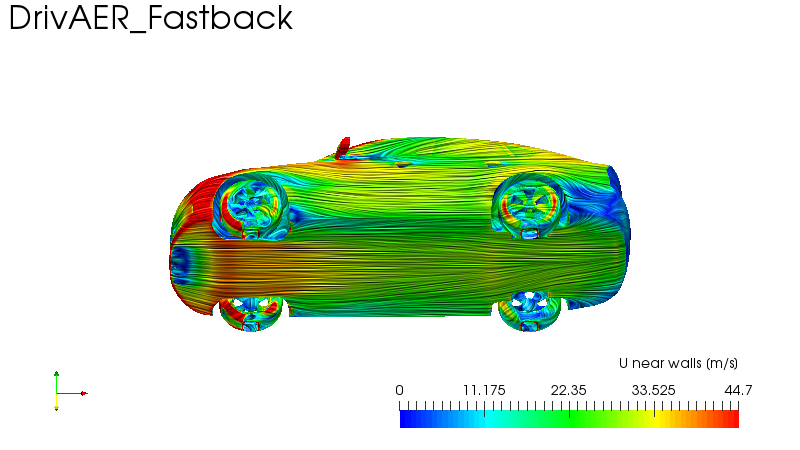

This is the report of a DrivAER model run on on teideHPC with 40 million cells.

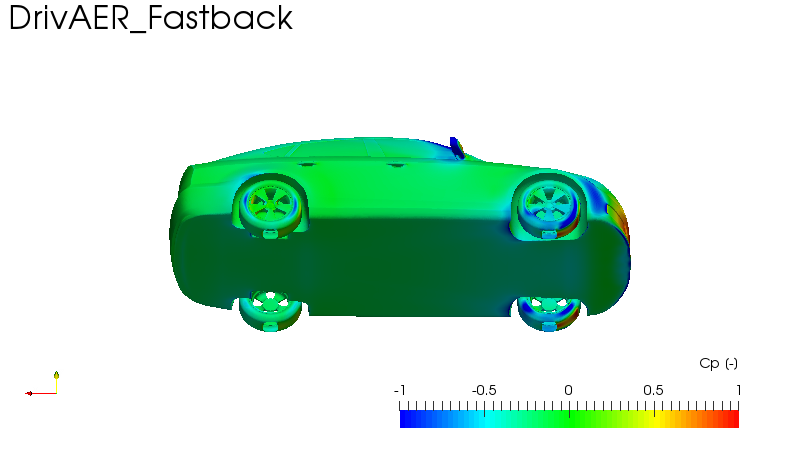

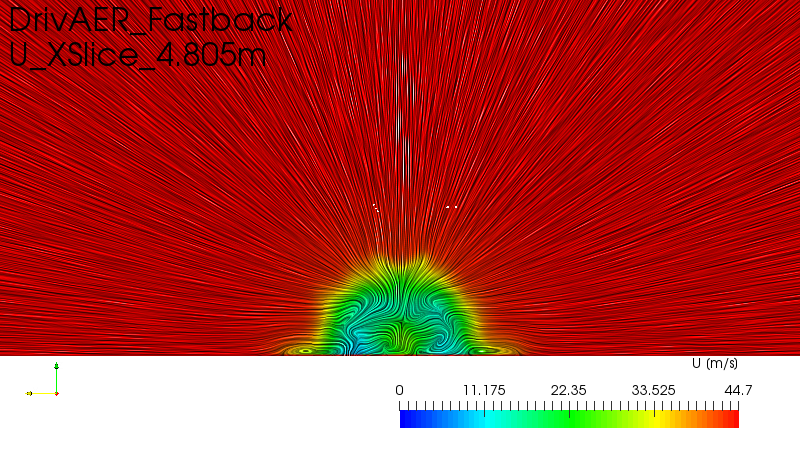

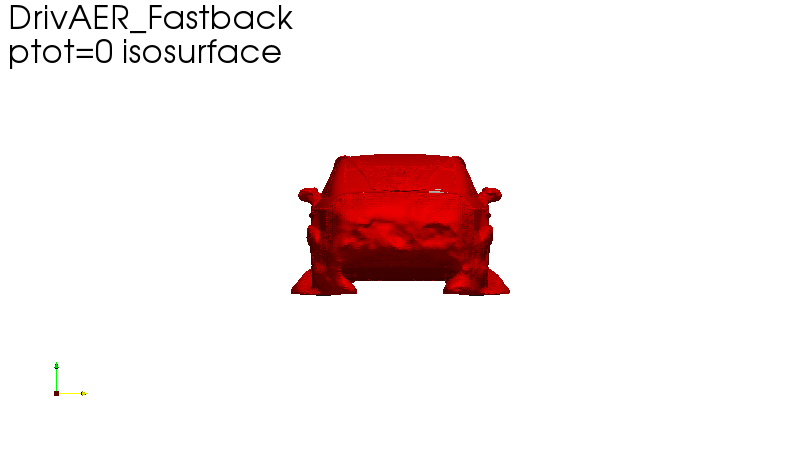

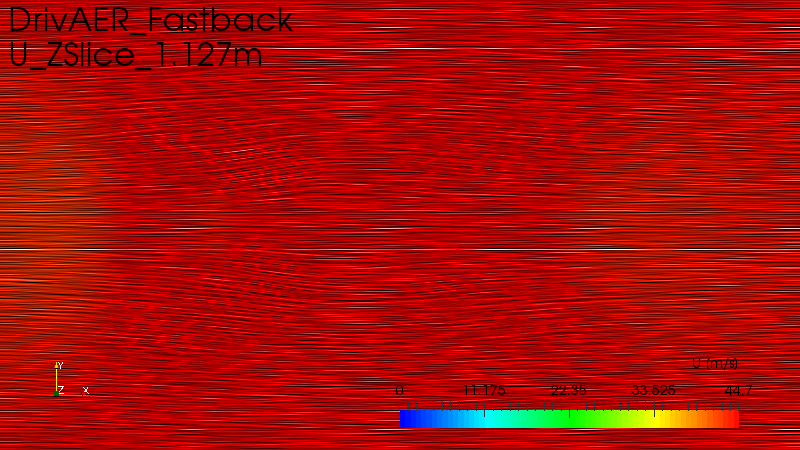

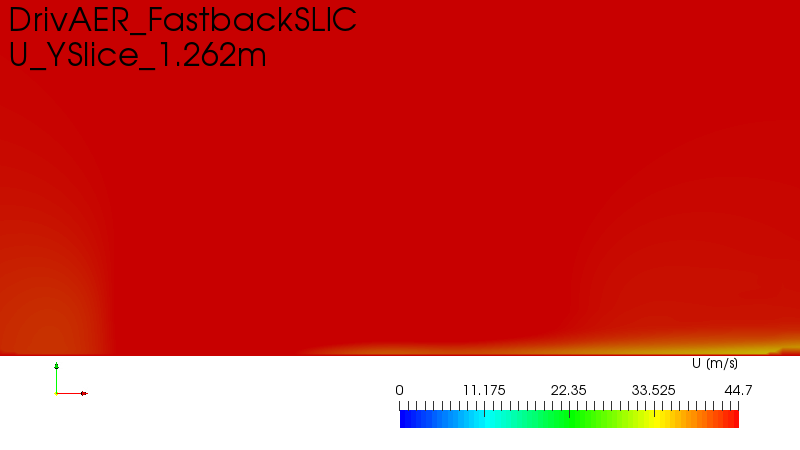

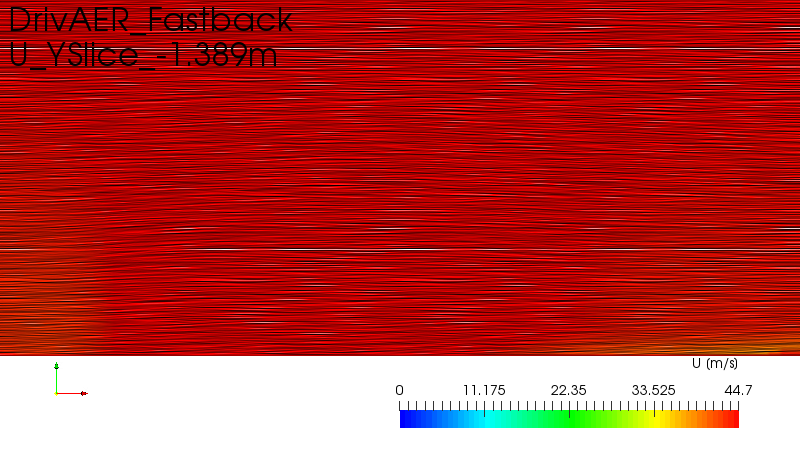

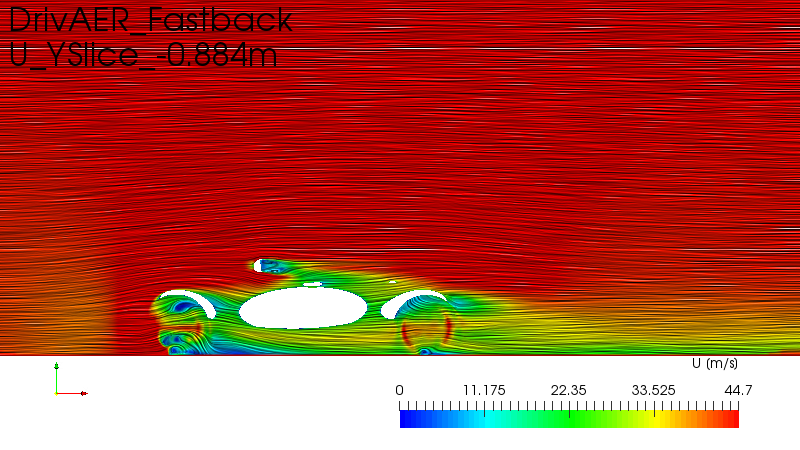

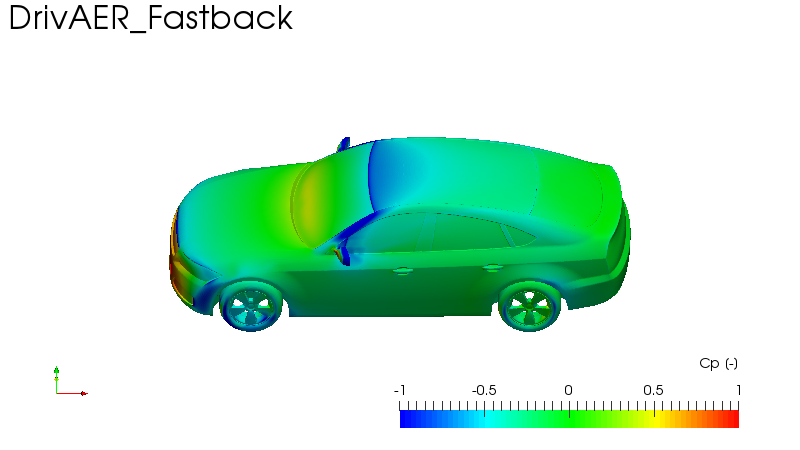

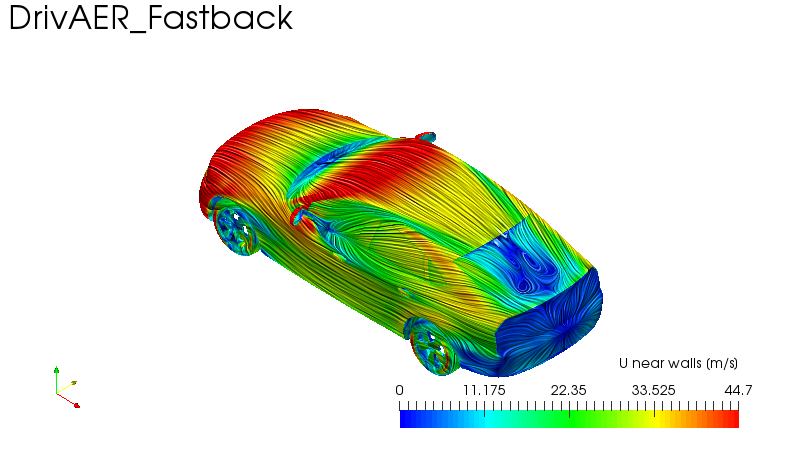

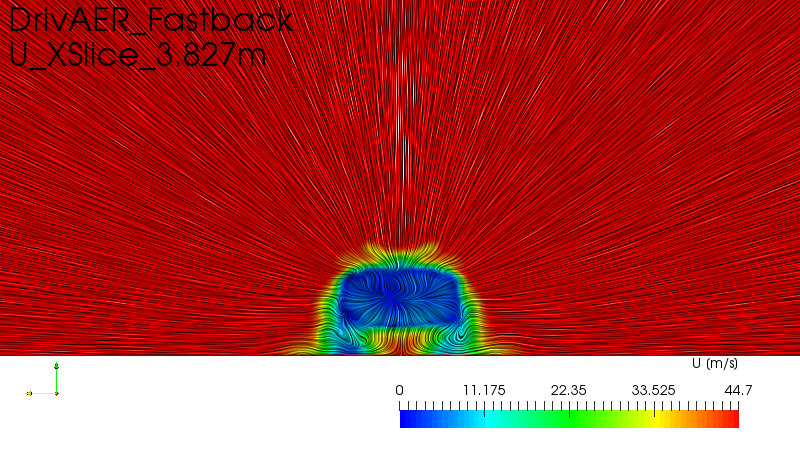

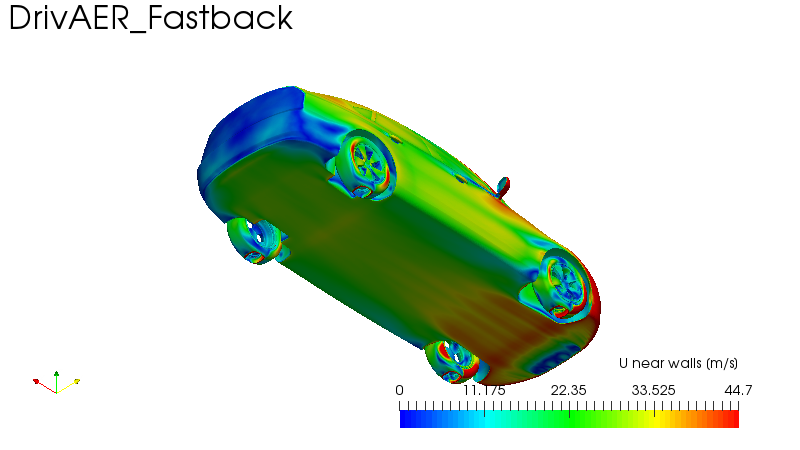

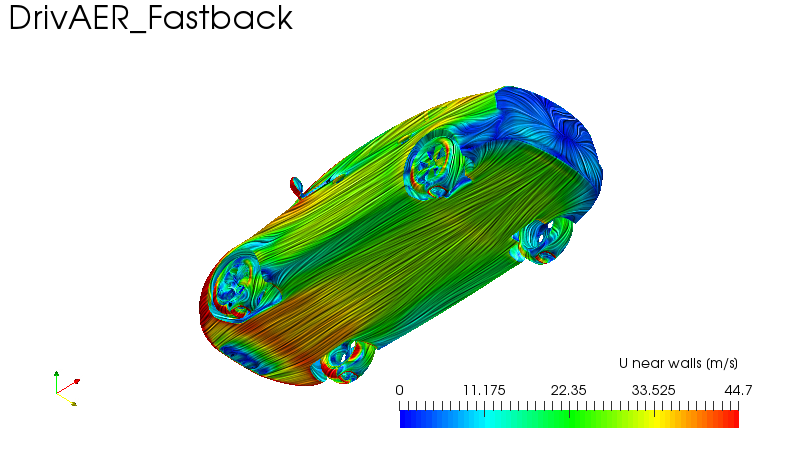

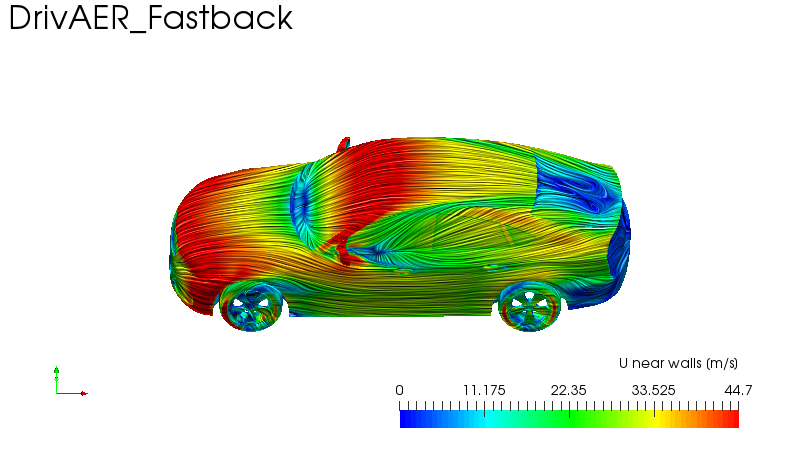

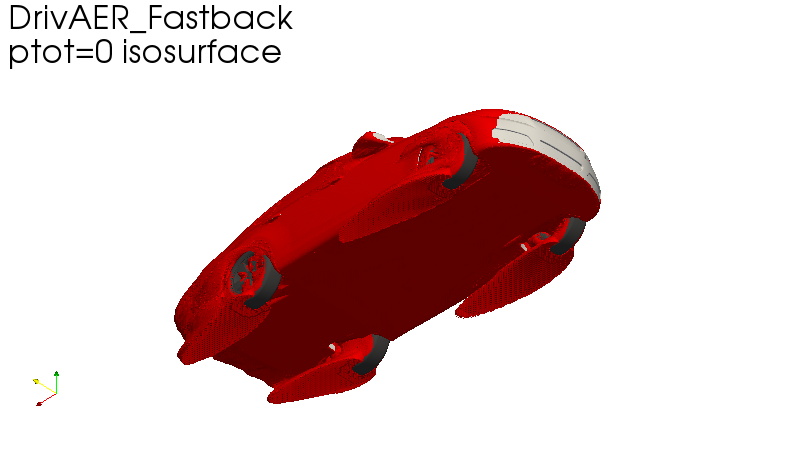

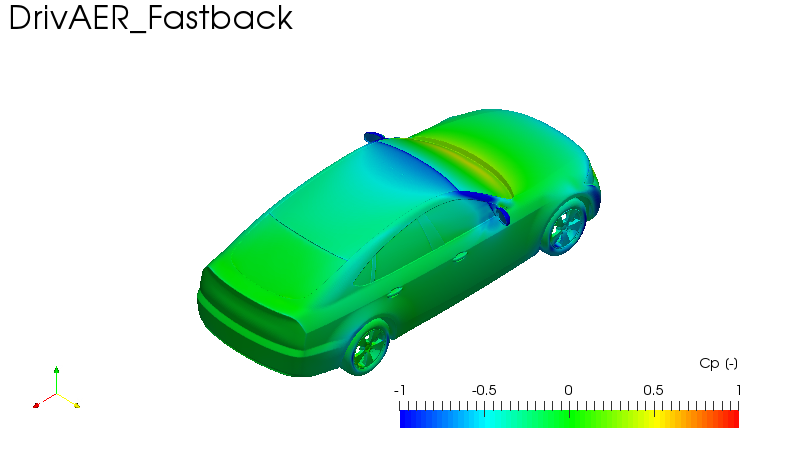

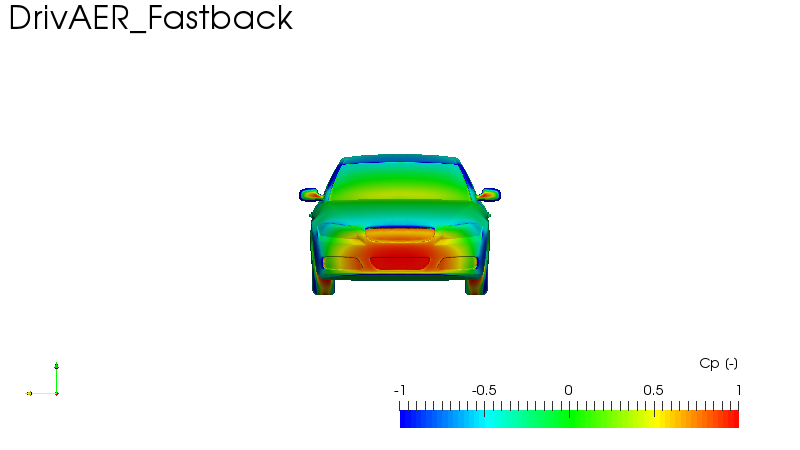

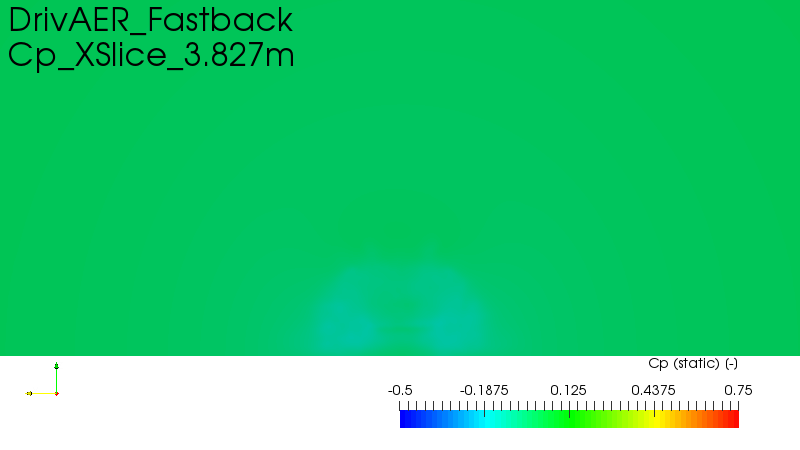

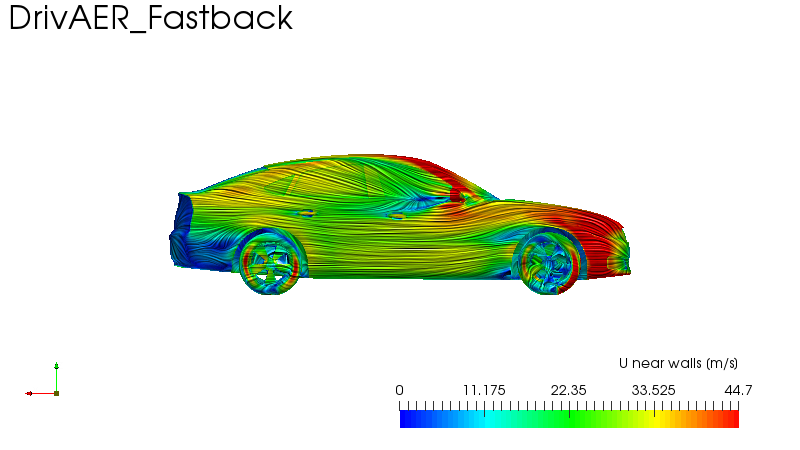

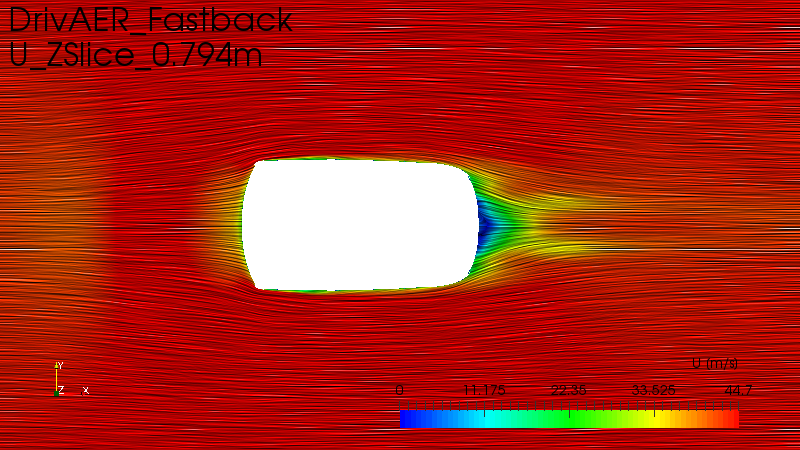

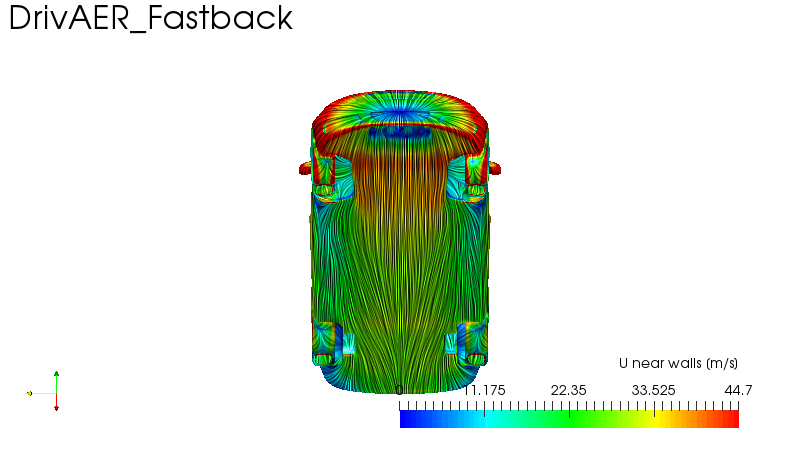

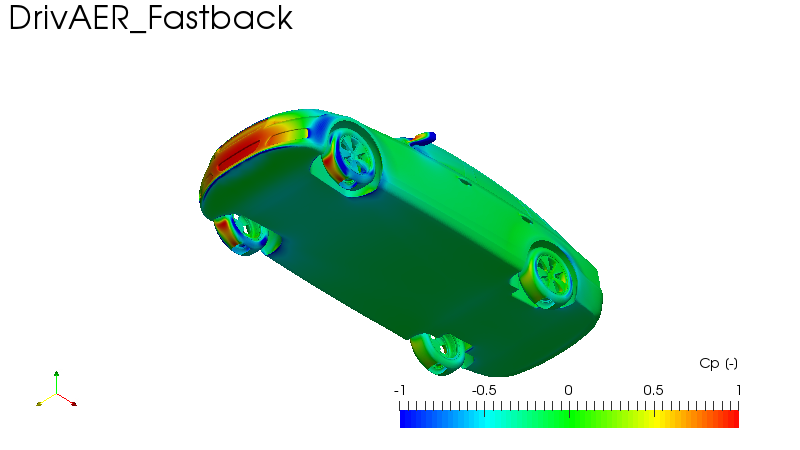

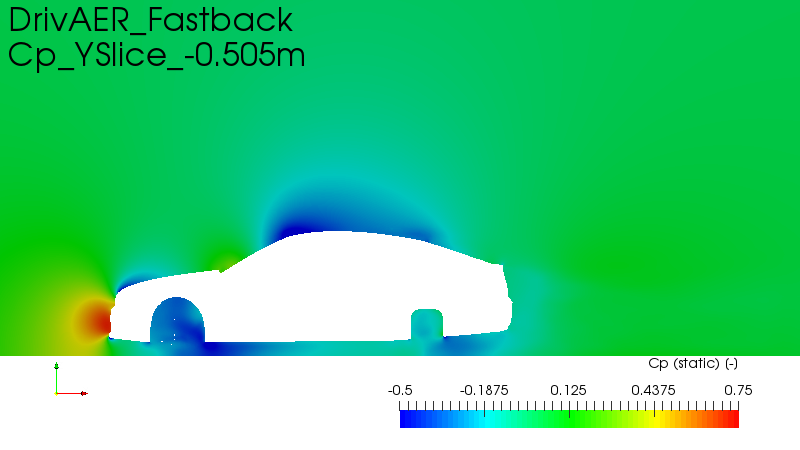

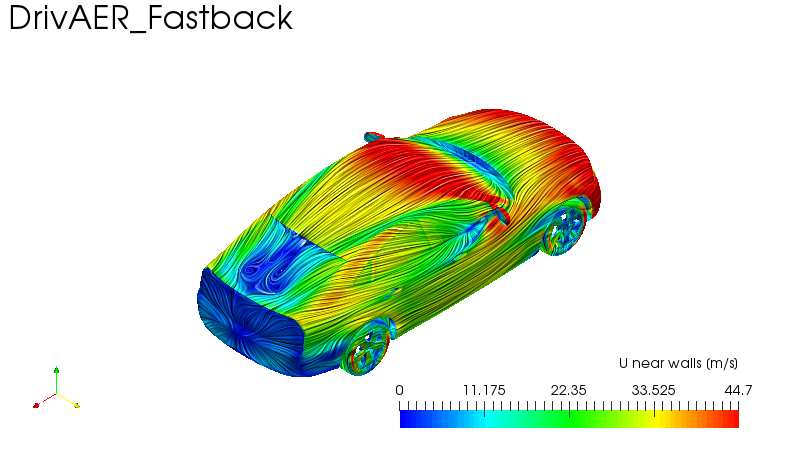

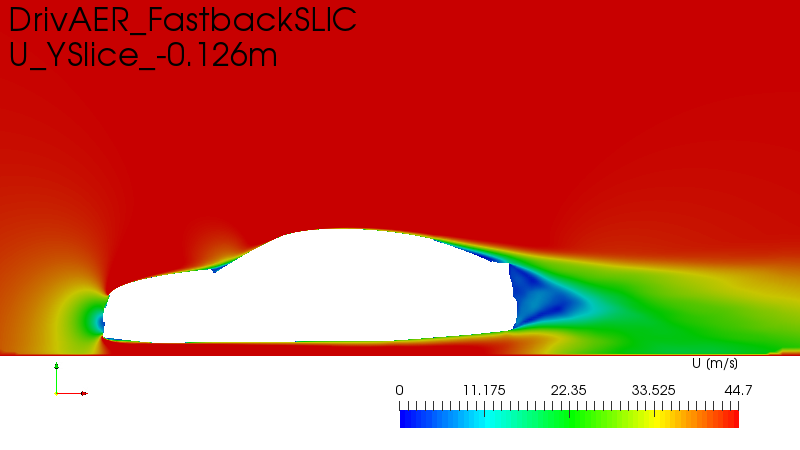

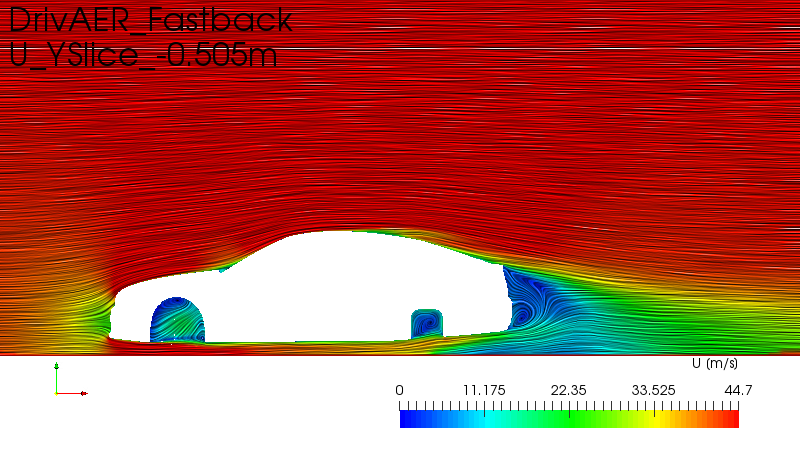

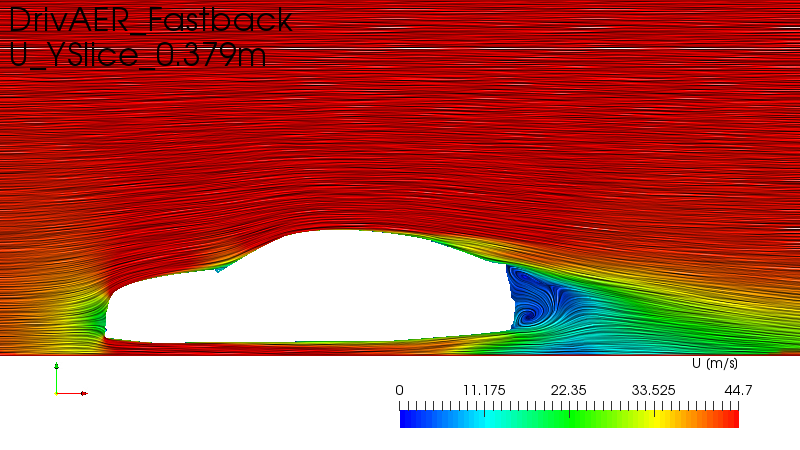

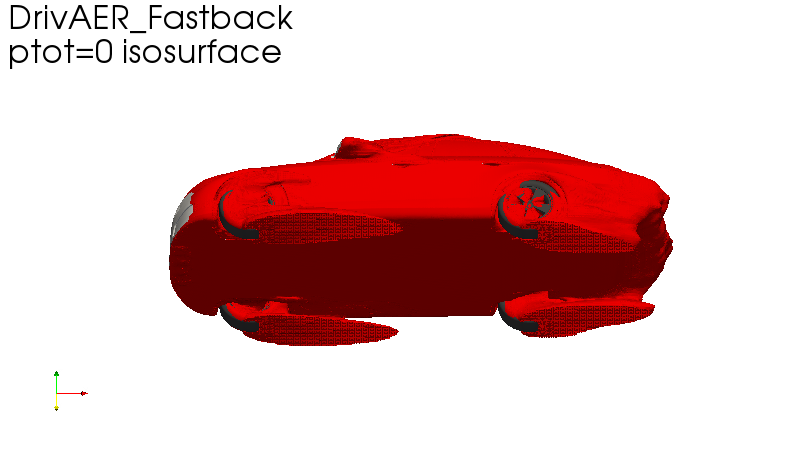

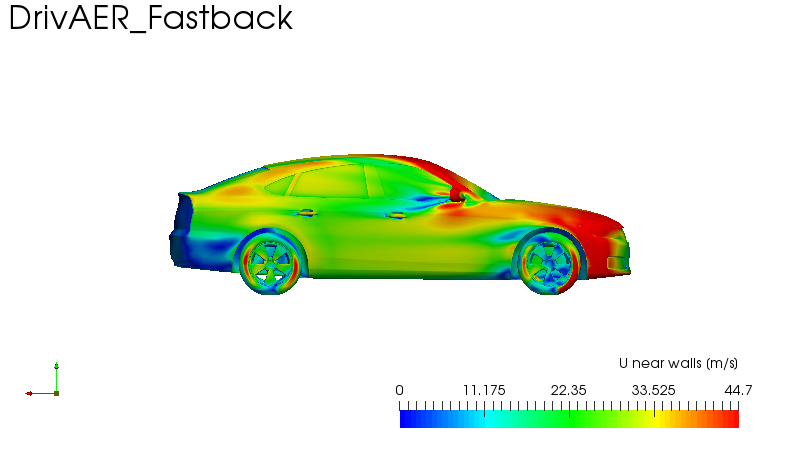

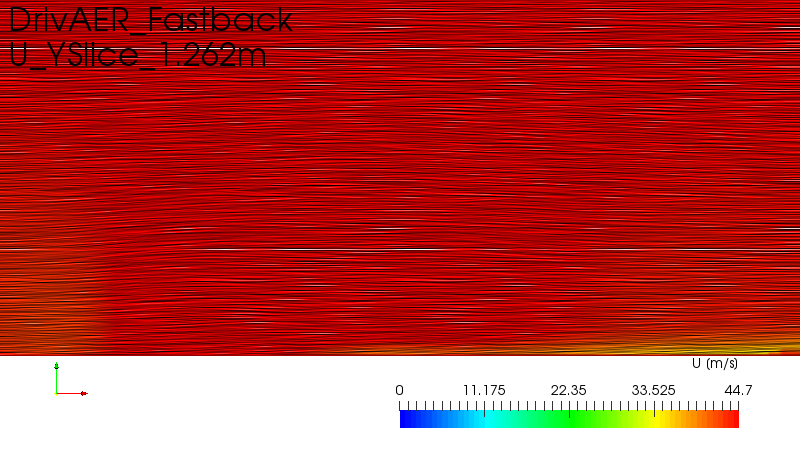

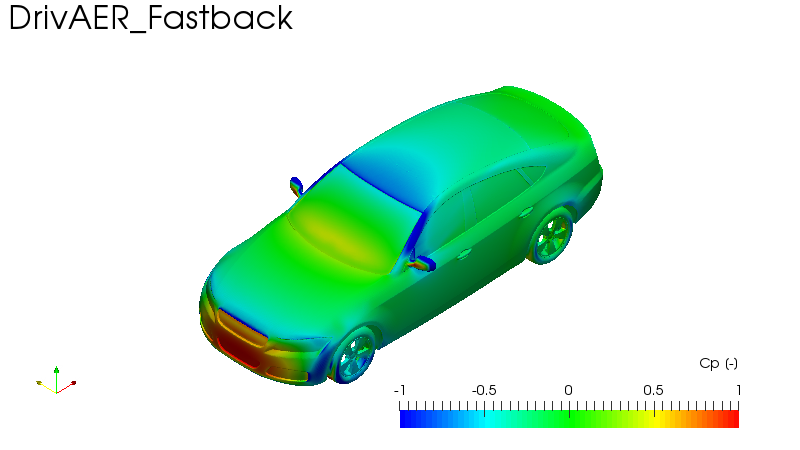

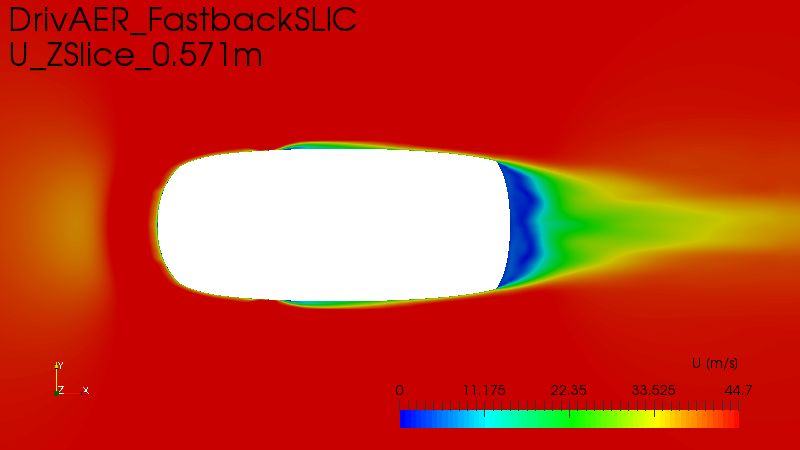

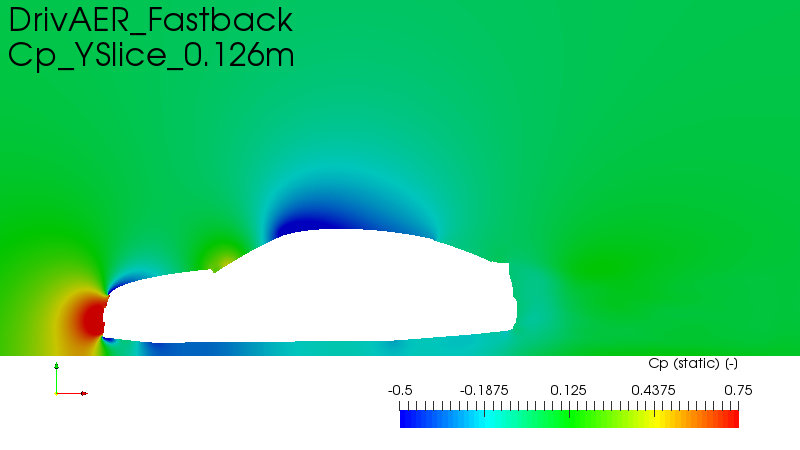

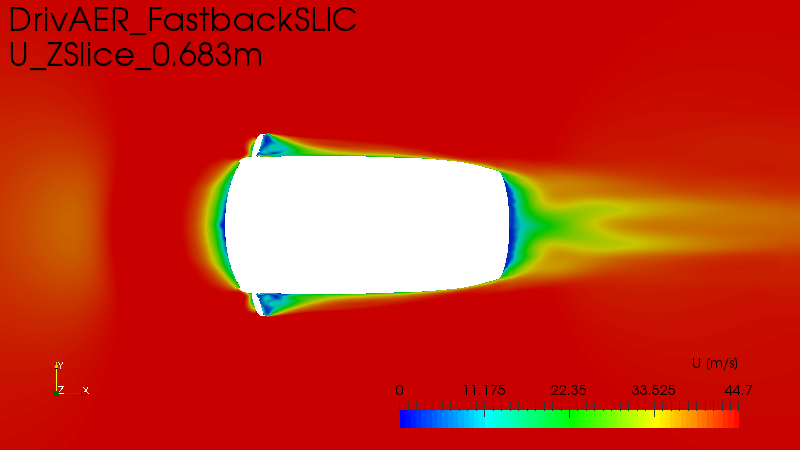

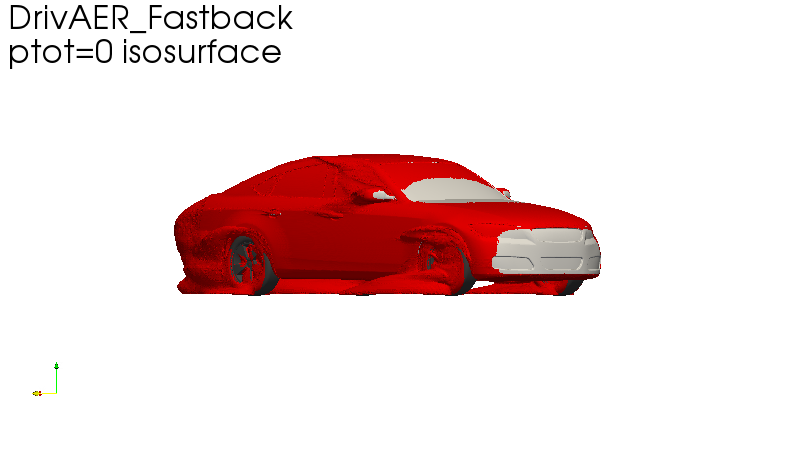

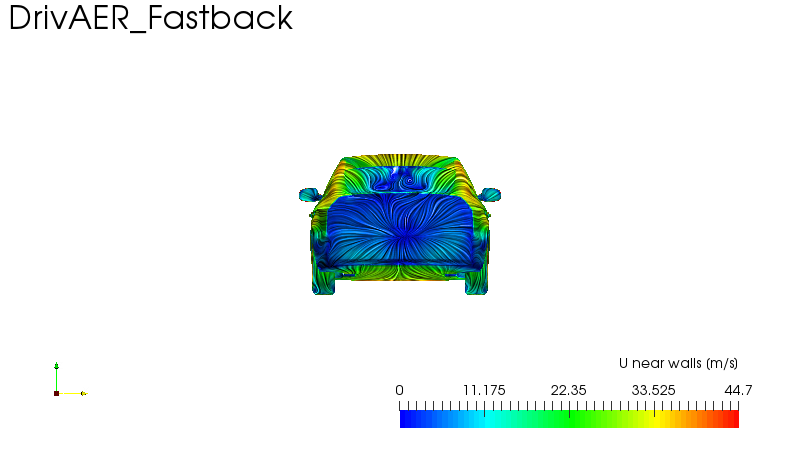

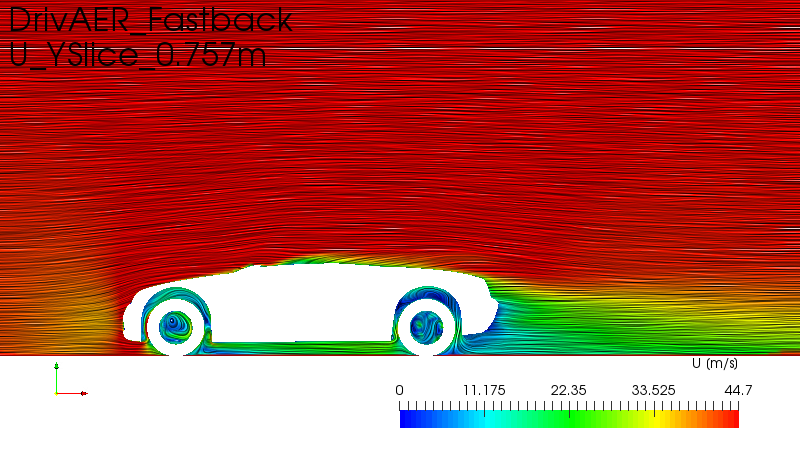

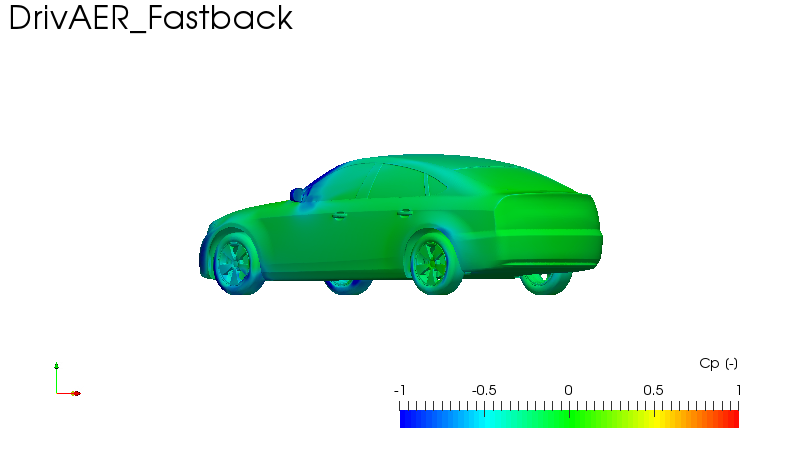

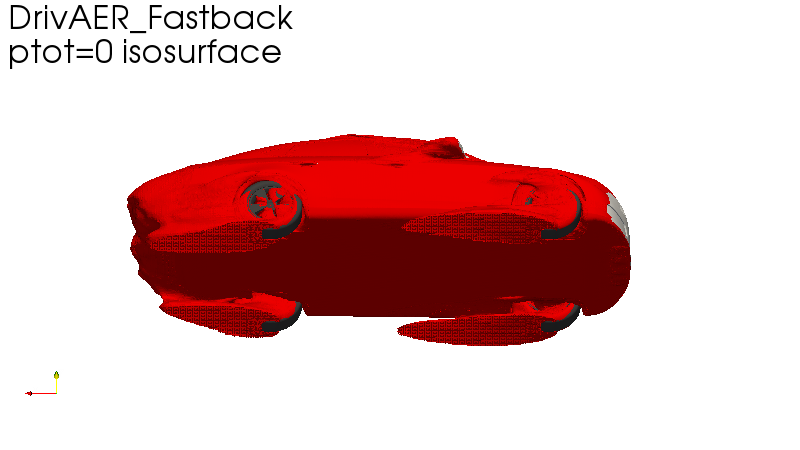

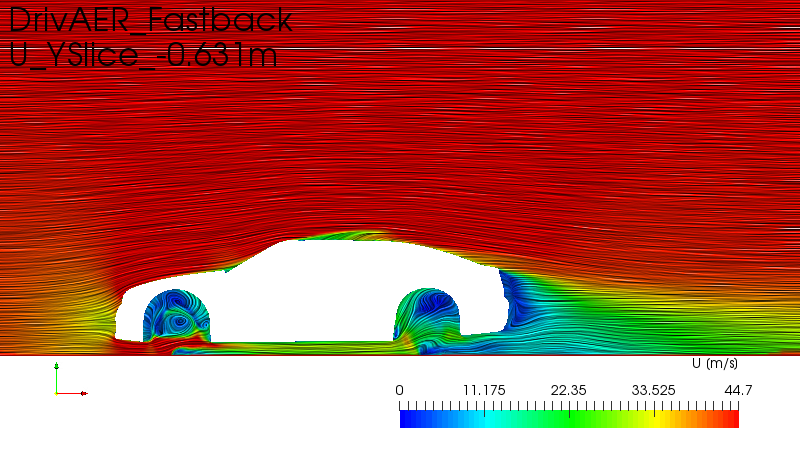

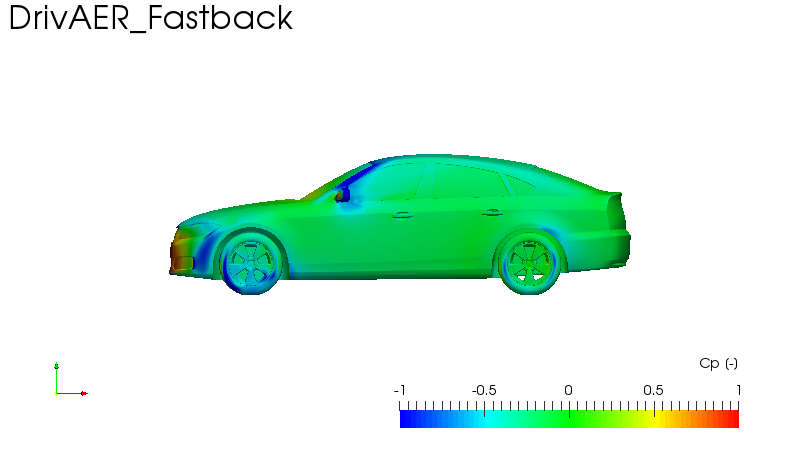

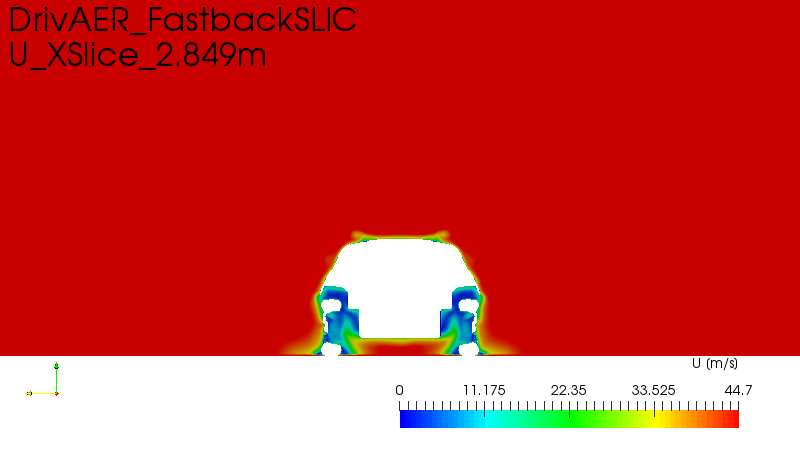

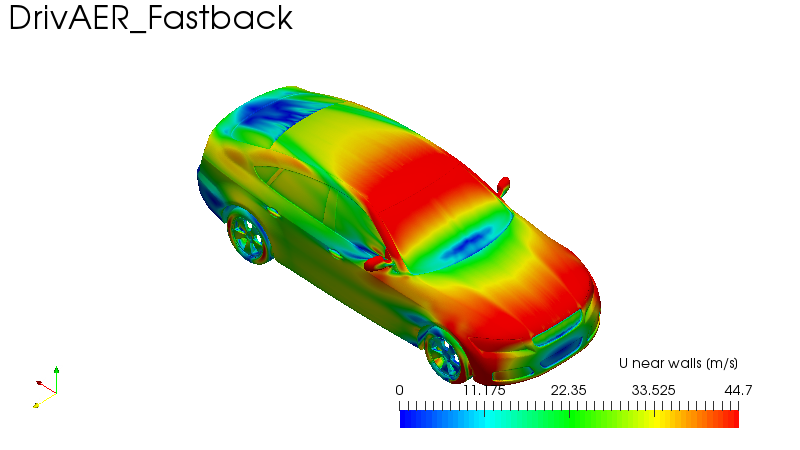

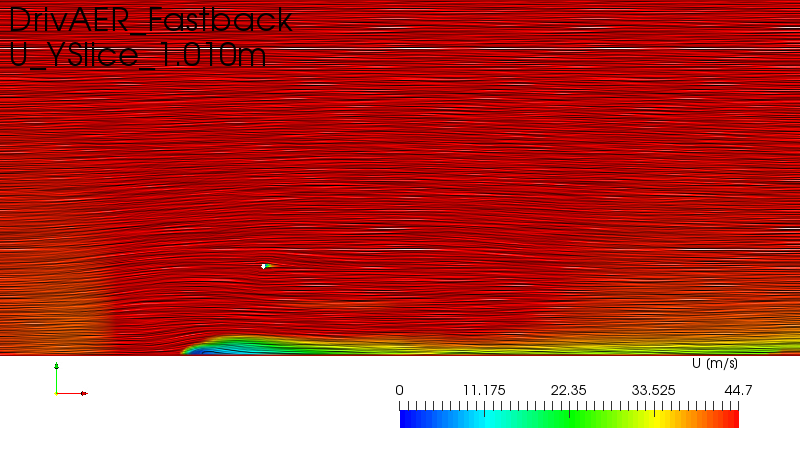

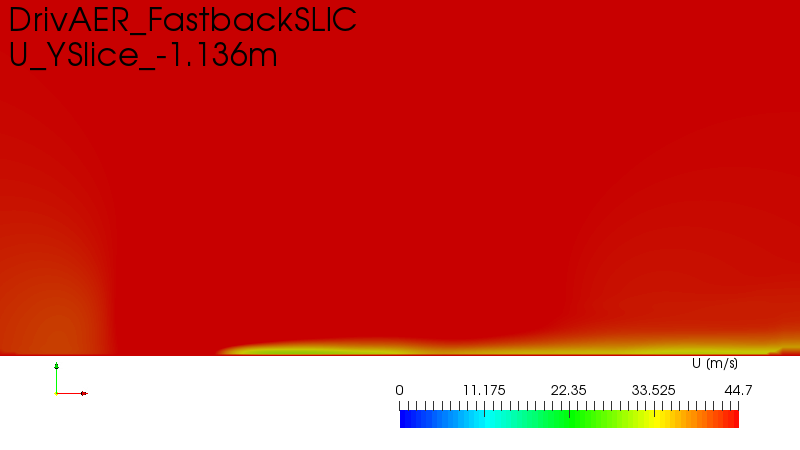

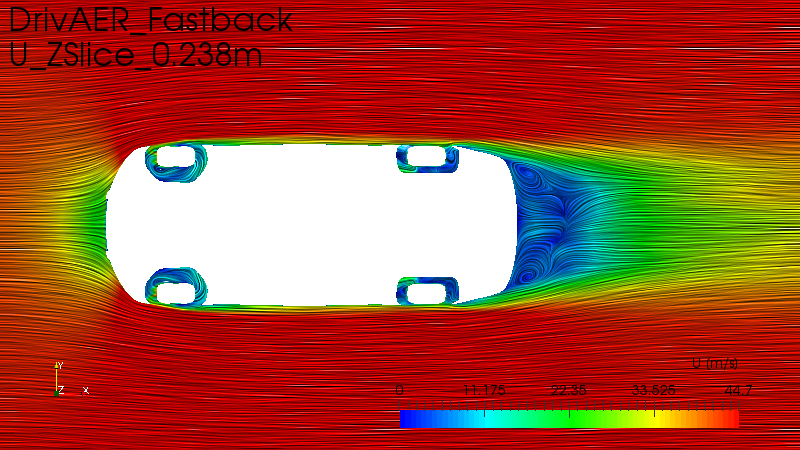

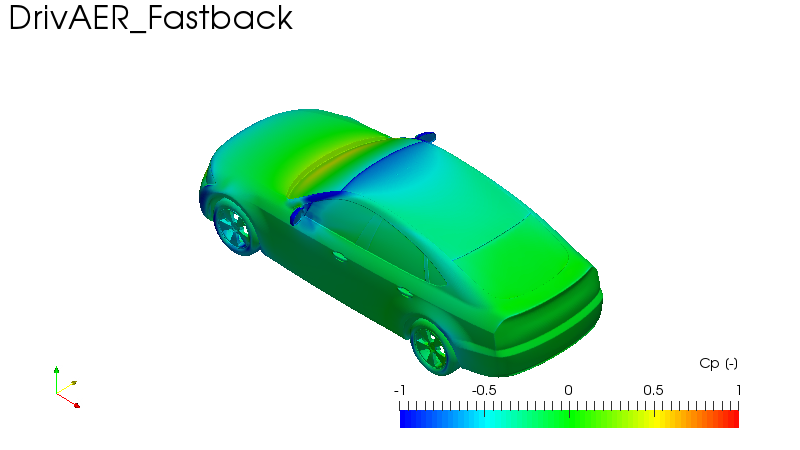

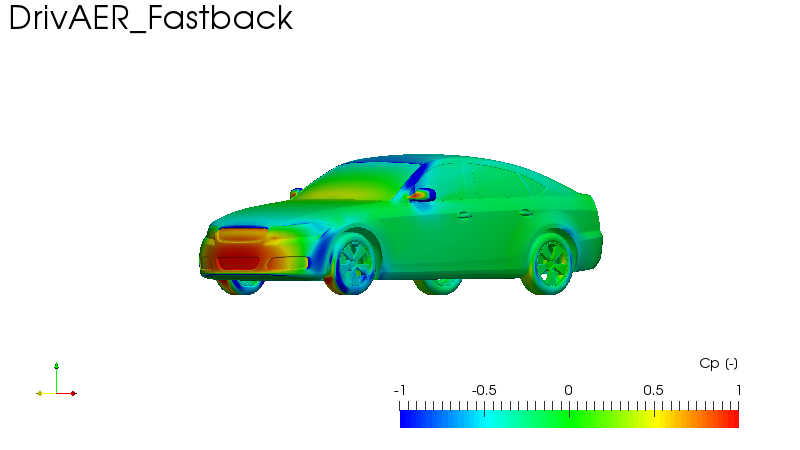

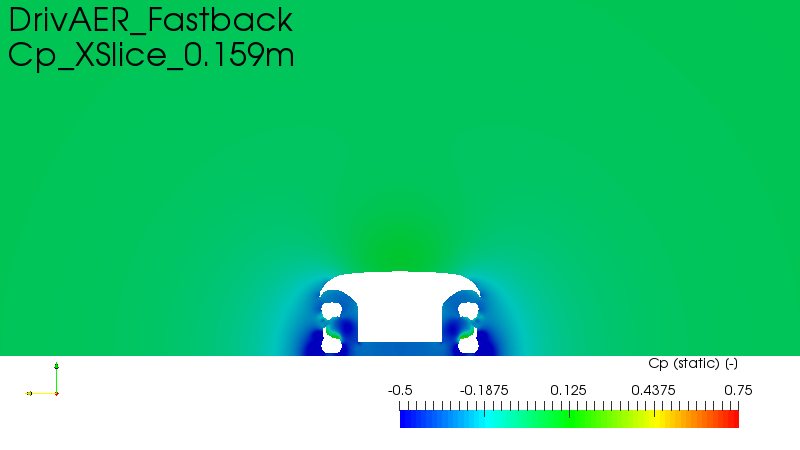

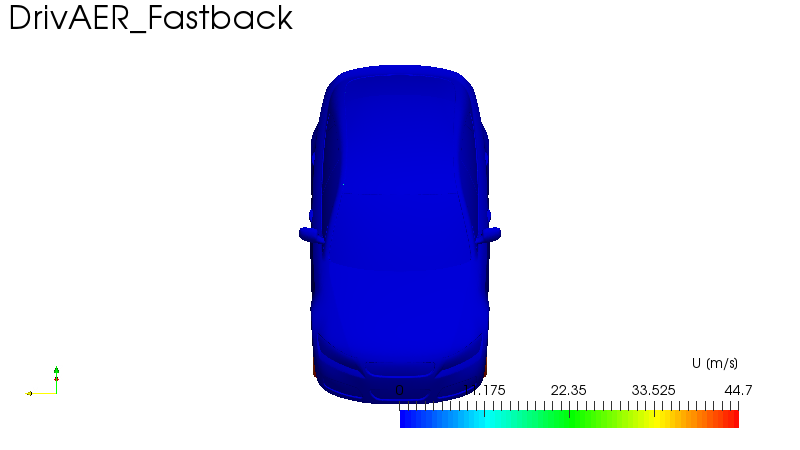

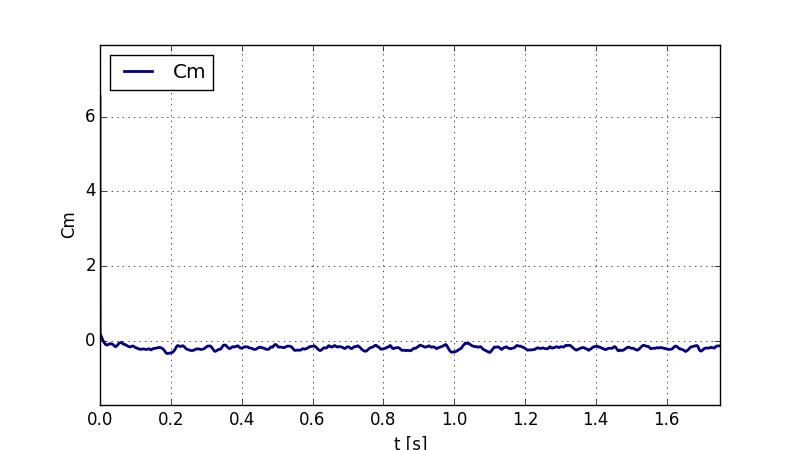

Integrated Force Coefficients

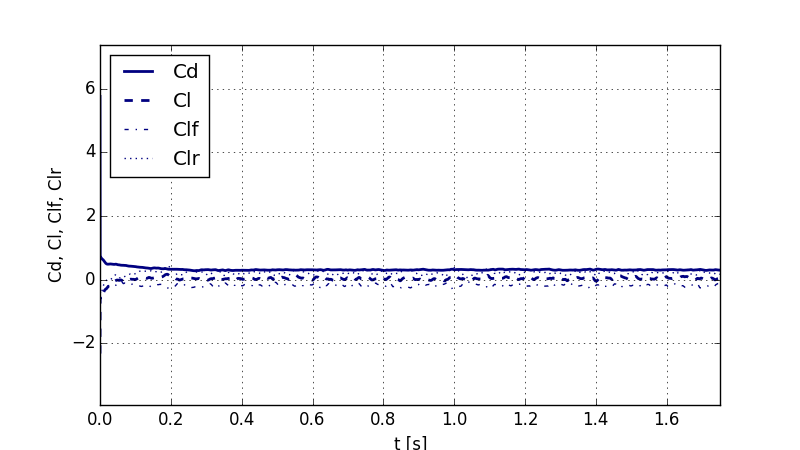

Cd Cl Cl_front Cl_rear Cd*A Cl*A Cl_front*A Cl_rear*A
0.306 0.0387 -0.182 0.221 0.657 0.0829 -0.39 0.473

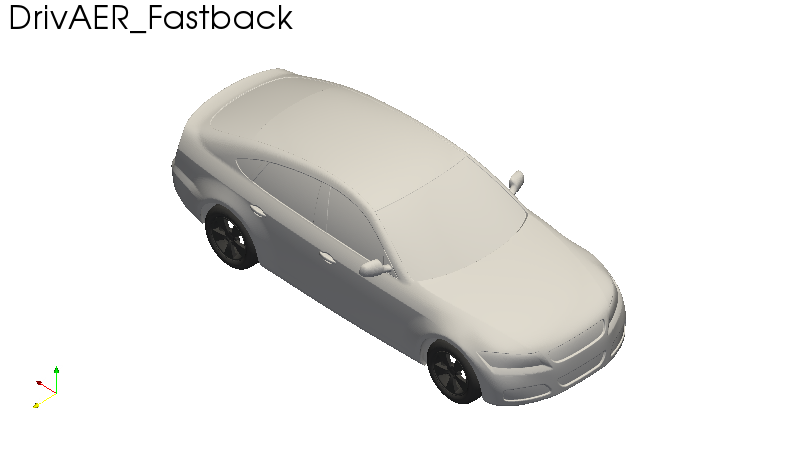

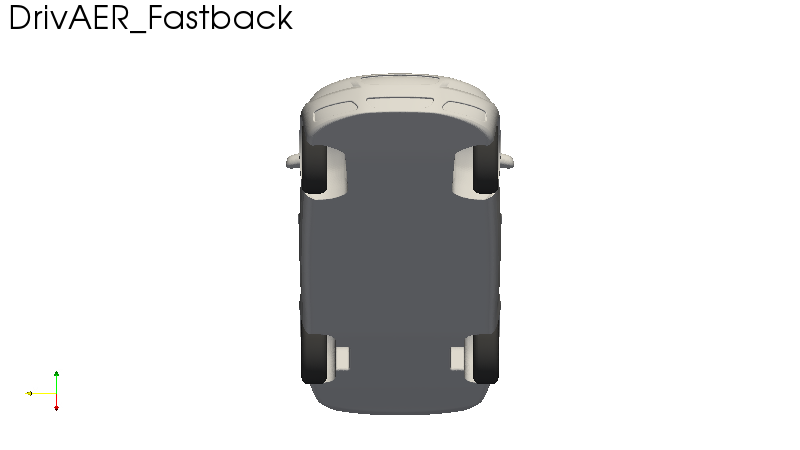

The DriveAER model is supplied by Institute of Aerodynamics and Fluid Mechanics of the TU Munich.
This simulation was supported by teideHPC.teideHPC.
